Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
China
-
Brand Name:
-
Venus
-
Thickness:
-
0.4mm/0.5mm
-
Width:
-
1m,1.5m,1.8m, customize
-
working temperture:
-
-30℃~50℃
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
China
-
Brand Name:
-
Venus
-
Thickness:
-
0.4mm/0.5mm
-
Width:
-
1m,1.5m,1.8m, customize
-
working temperture:
-
-30℃~50℃
Product Description

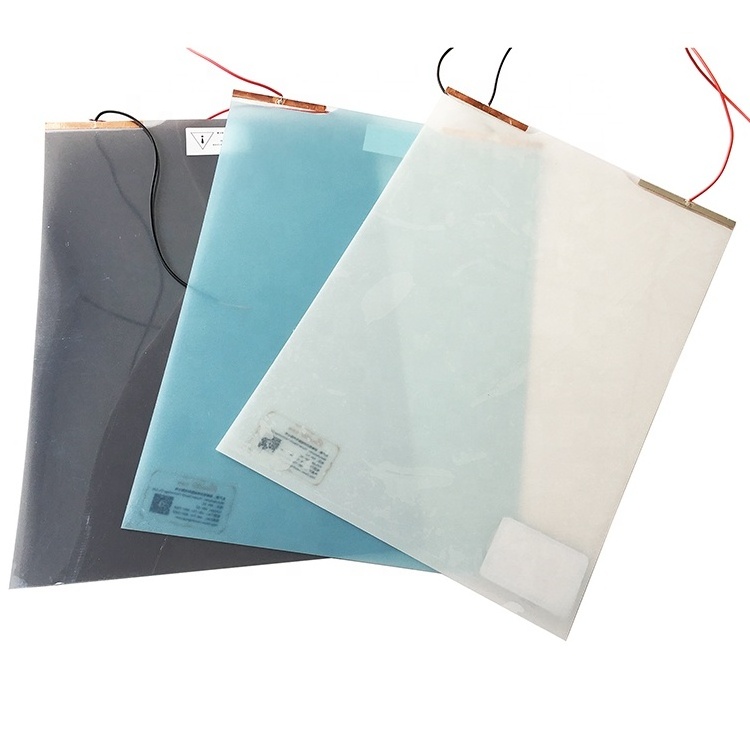

The PDLC film is a new type of electronic light control product. The electronically controlled smart film device is a liquid crystal/polymer hybrid material injected between two transparent conductive films. Without the effect of an electric field, the electronically controlled smart film is in Opaque state.
When alternating current is applied, the liquid crystal molecules are arranged in an orderly manner. At this time, the electro-dimmable film changes from an opaque state (OFF state) to a transparent state (ON state). Through the action of an electric field, a fast transition from on-state to off-state, off-state to on-state can be realized. Technical index:
1) It appears milky white under power-off conditions (off state), and is colorless and transparent when energized (on state). 2) The light transmittance in the open state is not less than 75%, and the light transmittance in the off state is not more than 2%
3) The viewing angle is not less than 140 degrees
4) Working voltage is 18-75V (AC 50/60 Hz)
5) Response time: off state (OFF state) → open state (ON state) less than 5ms, open state (ON state) → off state (OFF state) less than 50ms
6) Power consumption: 5W/m2
7) Size: Standard size is 2600mm*900mm, other sizes can be customized according to customer requirements
8) Working temperature is -20oC-60oC
9) The service life is greater than 50000 hours
Production Process
1. Before entering the clean room, clean the instruments, personnel and parts in advance;2. Seal the building with controllable multi-stage pressure, temperature and humidity control devices;3. HEPA filter;4. Enhance the process to reduce the generation of particles/sediments;5. Protective outerwear;6. Clean;7. The double-door configuration separates adjacent spaces, including delivery and receiving areas.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Tangshan Venus Glass Co., Ltd,Established in 2001,we are located in TANGSHAN HEBEI .It is only 90 kilometers from the port of TIANJIN, and the transportation is very convenient.which ensure your cargo can be delivered to the port without delay.
As one of the Chinese leading enterprises in value-added processing and wholesaling of architectural glass and furniture glass. When it comes to glass, Venus Glass does it all,We cover the complete range of glass including safety tempered glass, laminated glass,insulated glass ,acid etched glass, mirror glass,clear float glass, ultra clear low iron glass, tinted float glass, solar reflective glass, Low-E glass, patterned glass, curved glass, and new technology glass like antibacterial glass, Smart mirror and PDLC film smart glass, etc., for construction like curtain wall, balustrades, skylights, Windows, shower doors, staircase floors and furniture like table tops, shelves, cabinet doors, picture frames, etc.Because of high production capacity, top quality glass products, most reasonable price and one-stop professional service, Venus Glass has got high reputation from over 100 countries.
Should you have any glass inquiry, warmly welcome to work with us, we will do our best to maximize your benefits!
Our Advantages
FAQ
1. When will my order be ready once I’ve purchased it?
According to your requirement ,Most items will be ready for will call in 7-15 working days.
2. Why are your prices so low? Do you offer installation?
All we do is supply glass. We can offer limited advise, but we are not contractors, and we do not install glass. If you are unsure of what you need, you should contact a glass contractor for specific information.
3. Do you offer quantity discounts?
Yes, just call or email us with your requests.
4.Will the edges be sharp?
Generally no. Please refer to our edge chart for specifics about edges.
According to your requirement ,Most items will be ready for will call in 7-15 working days.
2. Why are your prices so low? Do you offer installation?
All we do is supply glass. We can offer limited advise, but we are not contractors, and we do not install glass. If you are unsure of what you need, you should contact a glass contractor for specific information.
3. Do you offer quantity discounts?
Yes, just call or email us with your requests.
4.Will the edges be sharp?
Generally no. Please refer to our edge chart for specifics about edges.
