Quick Details
-
Weight:
-
7KG
-
Size:
-
295* 115 * 135
-
Power:
-
0.3
-
Weight (KG):
-
6 kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OGP
-
Material:
-
Wooden case
-
Weight:
-
7KG
-
Size:
-
295* 115 * 135
-
Power:
-
0.3
-
Weight (KG):
-
6 kg
Products Description

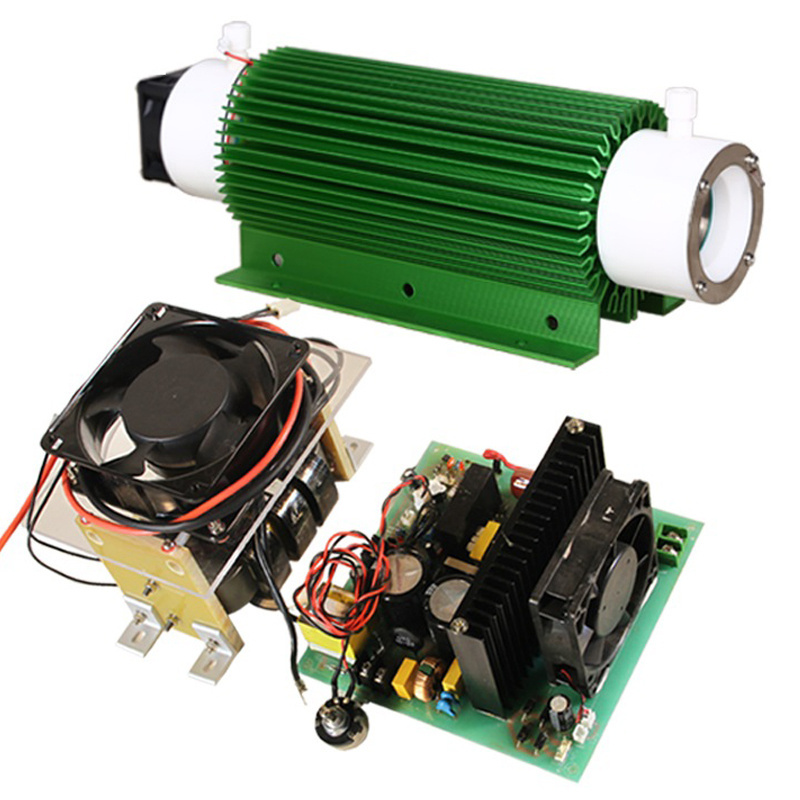

PLC control type OGP-BC series ozone tube with power supply
It is adopted
Imported material of high pure silica quartz external electrode,SS 316L of internal electrode,high purity fluorine rubber ring seal, teflon connections which are best anti-oxidation material for ensuring several years running.
1- Imported material
of high pure silica quartz external electrode, SS 316L of internal electrode,high purity fluorine rubber ring seal, teflon connection.
2-
Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 60~130Mg/L, which is much higher than conventional products.
3-
Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4-
PLC control type power supply
:
Good heat dissipation,High work efficiency, it can be control by PLC display.
5-
Easy to maintain and install
Air cooling for both internal and external electrode, thus it’s easy to maintain and installation
OGP-BC12G PLC control type
OGP-BC15G PLC control type
OGP-BC20G PLC control type
OGP-BC30G PLC control type
OGP-BC40G PLC control type
OGP-BC50G PLC control type
PRODUCT SPECIFICATIONS
|
Item
|
Unit
|
Model : OGP-BC12GPLC , OGP-BC15GPLC ,OGP-BC20GPLC ............OGP-BC50GPLC
|
OGP-BC
|
OGP-BC
|
OGP-BC
|
OGP-BC
|
OGP-BC
|
|||||
|
|
|
12G-PLC
|
15G-PLC
|
20G-PLC
|
30GPLC
|
40G-PLC
|
50G-PLC
|
|||||
|
Ozone output
|
G/Hr
|
9.6~12.24
|
9.78~16.05
|
13.14~18.24~22.6
|
17.5~25.5~30.5~35.4
|
16.2~31.2~46.8
|
50
|
|||||
|
Oxygen flow rate
|
LPM
|
2~3
|
2~5
|
3~5~7.5
|
3~5~7~10
|
3~8~15
|
10~15
|
|||||
|
O3concentration
|
Mg/L
|
60~130
|
81.5~53.5
|
73~60.8~53
|
97.4~85~72.7~59
|
90~65~52
|
|
|||||
|
Power
|
KW
|
0.15
|
0.2
|
0.3
|
0.33
|
0.55
|
0.7
|
|||||
|
Cooling method
|
/
|
Air cooling
|
|
|
|
|
|
|||||
|
Air inlet&outlet
|
mm
|
ID6
|
ID6
|
ID6
|
ID6
|
ID6
|
ID6
|
|||||
|
O3 output adjustable range
|
%
|
20~100
|
|
|
|
|
|
|||||
|
Dew point
|
℃
|
45
|
|
|
|
|
|
|||||
|
Working voltage
|
V/Hz
|
110V 60HZ /220V 50HZ
|
|
|
|
|
|
|||||
|
Ozone tube size
|
mm
|
183 * 115 * 135
|
223 * 115 * 135
|
295* 115 * 135
|
366*115*135
|
443 * 115 * 135
|
523*115*135
|
|||||
|
Power supply size
|
mm
|
158*141*90
|
158*141*90
|
177*161*110
|
240*180 *142
|
240*180 *142
|
240*180 *142
|
|||||
|
PLC board
|
|
signal output 0~10V or 4~20mA
|
|
|
|
|
|
|||||
|
PLC connecting board size
|
mm
|
126*44*38mm
|
|
|
|
|
|
|||||
|
Ozone tube weight
|
kg
|
1.9
|
2.4
|
3
|
4.04
|
5.7
|
6.8
|
|||||
|
Power supply weight
|
kg
|
1.75
|
1.75
|
3.0
|
3.0
|
3.29
|
3.29
|
|||||
Installation Instructions
Product packaging
