Quick Details
-
Production Capacity:
-
7000mm/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
3250*2250*1750mm
-
Weight:
-
1200 kg
-
Product name:
-

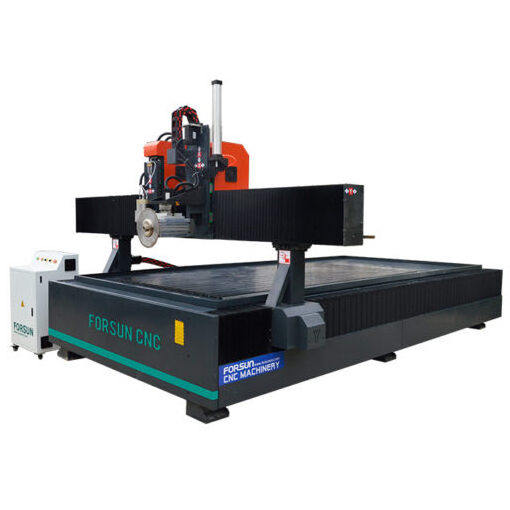

Heavy Duty Router Machine for Stone and Marble Cutting Carving
-
Model:
-
1224/1325/Cutom-Made
-
Spindle:
-
4.5/5.5kw Water cooling spindle
-
Control system:
-
NC Studio
-
Linear Guide:
-
HIWIN linear guide from Taiwan
-
Motors and drives:
-
Stepper Motors and YAKO Driver
-
Application:
-
Marble, bluestone, jade crystal, agate, glass,ect.
-
Certification:
-
With CE approved
-
Keyword:
-
Heavy Duty CNC Router for Stone
-
Other Name:
-
Strong CNC Router Machine for Marble
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
4.5KW
-
Cutting thickness (max):
-
15mm
-
Production Capacity:
-
7000mm/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
3250*2250*1750mm
-
Weight:
-
1200 kg
-
Product name:
-
Heavy Duty Router Machine for Stone and Marble Cutting Carving
-
Model:
-
1224/1325/Cutom-Made
-
Spindle:
-
4.5/5.5kw Water cooling spindle
-
Control system:
-
NC Studio
-
Linear Guide:
-
HIWIN linear guide from Taiwan
-
Motors and drives:
-
Stepper Motors and YAKO Driver
-
Application:
-
Marble, bluestone, jade crystal, agate, glass,ect.
-
Certification:
-
With CE approved
-
Keyword:
-
Heavy Duty CNC Router for Stone
-
Other Name:
-
Strong CNC Router Machine for Marble
21% discount 2024 37KW Marble Granite Quarry Diamond Wire Saw Stone Cutting Machine
Features of Marble Carving Engraving Machine
1) 5.5kw water cooling spindle
2) BETA inverter
3) Stepper motor
4) Stepper drivers
5) Heavy duty stone table with water tank
6) Mach3 control system
7) HIWIN Linear Guide rails
8) Helical rack & TBI ball screw for transmission
9) 3PH, 380V 50HZ
Advantages of CNC Marble Carving Enagraving Machine
| 1. Spindle |
5.5KW Water Cooling Spindle. Famous brand CS made in china, low noise. Spindle speed: 0-24000rpm |
| 2. Inverter |
BETA Inverter, Fuling brand
It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
| 3. Motor |
450B stepper motors With high quality & stronger power, ensure machine work very well. |
| 4. Driver |
Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |
| 5. Stone table with roller |
Heavy duty bed structure with water tank Special design for stone, with rollers, can help loading unloading marble...
|
| 6. Control system |
NC Studio Control System, PC online
NK105 controller for cnc router,USB connect,can be use without computer. |
Technical Data of marble granite cnc engraving machine
| NO. |
Model |
FSM9015 |
|
1 |
working area |
900*1500*300mm |
|
2 |
Processing precision |
±0.03mm/300mm |
|
3 |
Max processing speed |
7000mm/min |
|
4 |
Max travelling speed |
12000mm/min |
|
5 |
Spindle power |
5.5KW water cooling spindle |
| 6 | Command | G code |
| 7 | Voltage |
3PH, AC 380V/50HZ |
Benefits of CNC Marble Carving Machine
Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo and other hardwood surface of virtue and sculpture.
Standard Export Wooden Cases
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Customer visiting our factory
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
