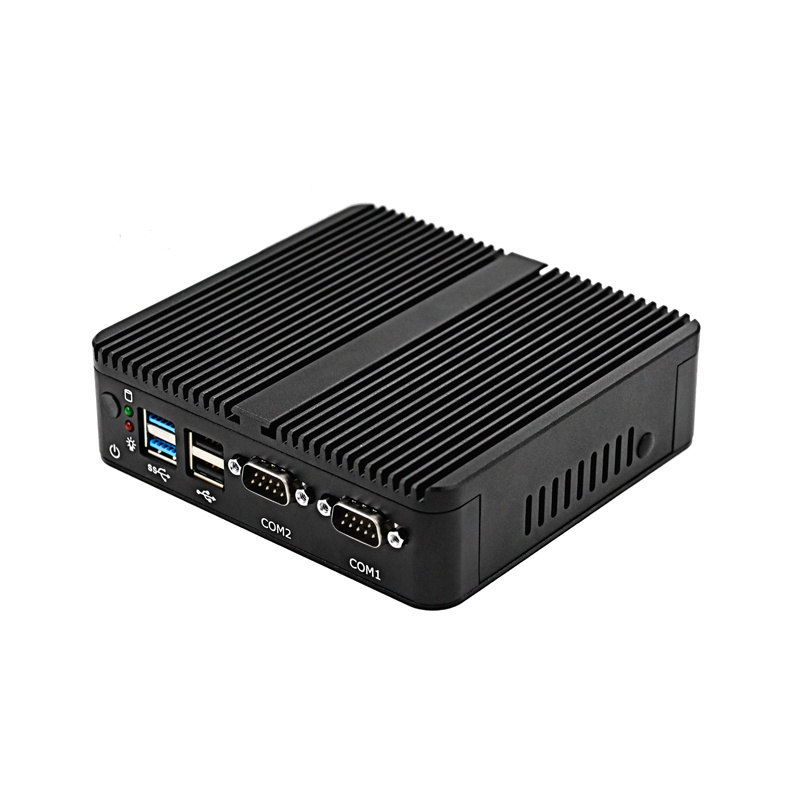

Intel Alder Lake N100 Mini PC support Wins10 SATA SSD Storage Industrial Computer with Dual LAN
Product Description
Feature
2x RS-232 serial port
1xDDR3 SODIMM, Max 8GB memory
VGA+HDMI dual display, synchronous/asynchronous mode
Dual storage, 1 2.5” HDD, 1 mSATA
One-key restore, watchdog, diskless boot
low power fanless
Industrial grade working temperature -20℃~70℃
Specification
|
Model: SM13
|
|
|
|
PC
|
|
|
|
CPU
|
Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.7GHz, Fanless
|
|
|
CPU Optional
|
Intel® Celeron J6246/J6413, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.0GHz, Fanless
|
|
|
CPU Optional
|
Intel® Celeron N100, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.1GHz, Fanless
|
|
|
Memory
|
1x DDR4 SODIMM slot, supports up to 8GB
|
|
|
Storage
|
1x MSATA
1x HDD/SSD |
|
|
Display
|
1x HD-MI
|
|
|
Network
|
2 x GbE RJ45 Realtek 8111H
|
|
|
I/O
|
3x USB2.0, 1x USB3.0, 2x DB-9 COM1&COM2(RS-232), 1x Audio Line-out, 1x Audio Mic-in, 1x Power Button, 1x Power LED, 1x HDD LED, 1x
Power input, 1x Antenna port, 2x LAN |
|
|
Expansion Slot
|
Mini-pcie x1, Full card Support WIFI Bluetooth
|
|
|
BIOS
|
AMI EFI BIOS
|
|
|
WDT
|
Support hardware reset (256 level, 0-255 sec)
|
|
|
Operation System
|
Windows® 10, WES 10, LINUX
|
|
|
Power Supply
|
|
|
|
External Power Supply
|
AC 100 - 240V
|
|
|
Working voltage
|
DC 12V
|
|
|
Power consumption
|
≤15W
|
|
|
Enclosure
|
|
|
|
Material
|
Aluminum Alloy
|
|
|
Color
|
Black
|
|
|
Operating Environment
|
|
|
|
Temperature Range
|
Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow
|
|
|
Relative humidity
|
10%~95% , non-condensing
|
|
|
Packing Details
|
|
|
|
Net weight
|
1 kg
|
|
|
Gross weight
|
2 kg
|
|
|
Product Dimension
|
135 x 127x38.7 mm
|
|
|
Packing size
|
30*20*12cm
|
|
|
Accessories
|
Power adapter, Screws
|
|
|
Other
|
|
|
|
Mounting (options)
|
Wall mounting
|
|
|
|
Desktop installation
|
|
|
Warranty
|
2 years warranty
|
|
