Quick Details
-
Place of Origin:
-
China
-
Pallet size:
-
850x550x20mm
-
workshop area:
-
60m2
-
Vibration force:
-
35.5KN
-
Molding cycle:
-
24s
-
Weight:
-
3T
-
Block Type:
-
concrete hollow,solid,interlocking block
-
Raw material:
-
cement,sand,conrete,fly ash, crushed stone etc
-
Mixer:
-
JD350
-
Product Name:
-
eco brava interlock brick machine
Quick Details
-
Type:
-
Hollow,Solid,Interlocking brick making machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
3000-6000 PCS/day
-
Place of Origin:
-
China
-
Pallet size:
-
850x550x20mm
-
workshop area:
-
60m2
-
Vibration force:
-
35.5KN
-
Molding cycle:
-
24s
-
Weight:
-
3T
-
Block Type:
-
concrete hollow,solid,interlocking block
-
Raw material:
-
cement,sand,conrete,fly ash, crushed stone etc
-
Mixer:
-
JD350
-
Product Name:
-
eco brava interlock brick machine

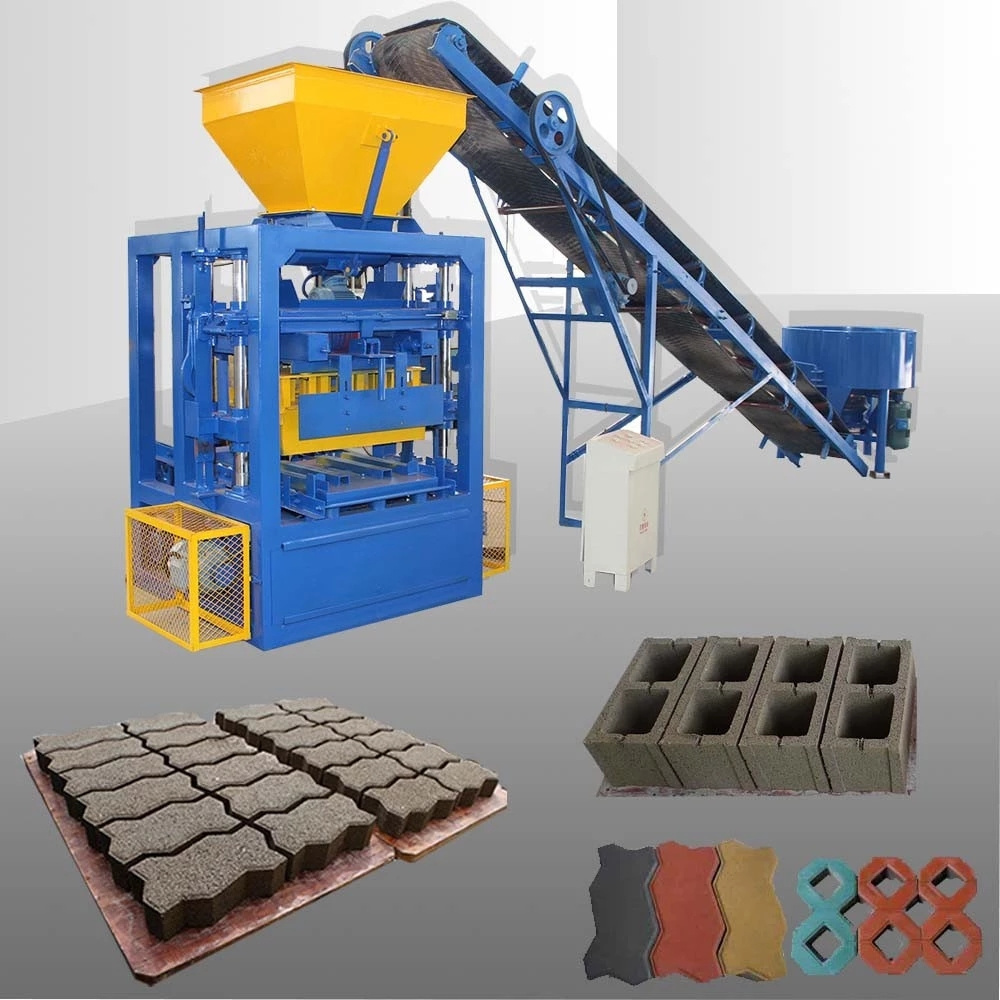

QT4-24 manual eco brava interlock brick machine price in malawi
· Cheap eco brava interlock brick machine ,low cost
· Electric cabient control,Simens motor
· Make hollow block,solid,interlock,paver,curbstone,e tc.by change mould.
· Semi automatic, saving labor force.
| 1.Full brick production line of this qt4-24 | |
| Model of host brick machine | QT4-24 with electric control cabinet |
| Concrete mixer | JD350/1.2m |
| Conveyor | L=6m |
| Pallet | Bamboo, Wooden or PVC pallet 400~600pcs |
| 2.Other items you may need | |
| Generator with dieseal engine | whole line of this qt4-24 need 40KW generator supply |
| Stone crusher | crush big size stone into small pieces used to produce bricks |
3. >> Capacity of this qt4-24 eco brava interlock brick machine
This qt4-24 eco brava interlock brick machine could produce various kinds of Hollow, Solid, Paver, Interlocking, Habiterra bricks, and Curbstone etc. with changing moulds, also please well noted the brick mould size and design are customized.
| ITEM |
SPECIFICATIONS L*W*H(mm) |
PCS/CYCLE | PCS/HOUR | PCS/8 HOURS |
| Hollow block | 400*200*200 | 4 | 552~600 | 4416~4800 |
| Hollow block | 400*150*200 | 5 | 690~750 | 5520~6000 |
| Hollow block | 400*100*200 | 7 | 966~1050 | 7728~8400 |
| Solid brick | 240*115*53 | 24 | 3600 | 28800 |
| Interlocking brick | 200*100*60 | 14 | 2100 | 16800 |
| Interlocking brick | 200*163*60 | 8 | 1200 | 9600 |
| Interlocking brick | 225*112.5*60 | 12 | 1800 | 14400 |
|
4. >>Specifications of qt4-24 eco brava interlock brick machine
|
|||
|
Dimension
|
2060*1730*2580mm
|
||
|
Weight of host machine
|
3T
|
||
|
The size of the pallet
|
850*550*20mm
|
||
|
Molding cycle
|
24s
|
||
|
Host machine power
|
13.45kw
|
||
|
Mixer power
|
7.5kw
|
||
|
Conveyor power
|
1.1kw
|
||
|
Electric power
|
380v/400v/220v etc.; 3 phase power; 50~60Hz
|
||
|
Vibration Force
|
35.5KN
|
||
|
Mixer Model
|
JD350
|
||
5. Whole simple line of this qt4-24 eco brava interlock brick machine will be packed in 1x20" container, includes 4-24 brick molding machine, JD500 Concrete Mixer, Conveyor belt, 2sets handcarts, Tools & Accessions included, then it will be deliveried to customer's side by sea.
For this qt4-24 eco brava interlock brick machine, it is not hydraulic working
method, usually do not need engineer be abroad help you installation, we would send you the machine Manual help you install the machine and how to operate the machine. Or if you need enginerr to come and help you please just feel free to tell us.
