Color: White Cabin, White Body
Drive type: LHD
Cabin: with A/C
Engine Brand: YC4E120-33
Engine power: 120Hp
Tyre: 7.50R16
Working height: 18m
- Product Details
- {{item.text}}
Quick Details
-
Dimensions (L x W x H) (mm):
-
8420*2280*3420
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dongfeng
-
Color:
-
Customized
-
Keywords:
-
Aerial Work Platform Lifting Truck
-
Engine:
-
120HP
-
High Altitude Working Truck:
-
Street lights, gardens, electricity High Wokring
-
Aerial Platform Truck:
-
petrochemicals, communications High Working
-
working Height:
-
8m/13m/14m/16m/18m/22m/24m
-
Truck Mounted Aerial Platforms:
-
Right hand drive or left Hand drive
-
Folded Boom:
-
Two section/three section/five section
-
Contact:
-
Ms.Pinky
-
Whatsapp:
-
+86 15897603919
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Return and Replacement, Online support
-
Dimensions (L x W x H) (mm):
-
8420*2280*3420
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dongfeng
-
Color:
-
Customized
-
Keywords:
-
Aerial Work Platform Lifting Truck
-
Engine:
-
120HP
-
High Altitude Working Truck:
-
Street lights, gardens, electricity High Wokring
-
Aerial Platform Truck:
-
petrochemicals, communications High Working
-
working Height:
-
8m/13m/14m/16m/18m/22m/24m
-
Truck Mounted Aerial Platforms:
-
Right hand drive or left Hand drive
-
Folded Boom:
-
Two section/three section/five section
-
Contact:
-
Ms.Pinky
-
Whatsapp:
-
+86 15897603919
Factory Cheaper Price High Platform Truck 18M Bucket Vehicle Aerial Work Platform Lifting Truck
Call Whatsapp +86 15897603919

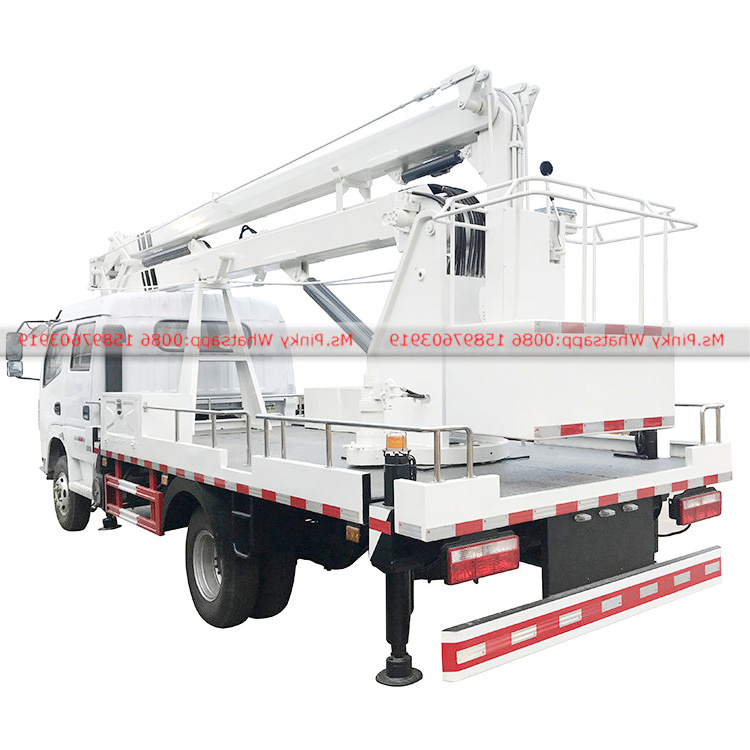

18meter Aerial Platform truck:
1. Three-section folding arm,
2. maximum operating radius: 7.5m,
3. maximum operating height: 18m. 360° rotation.
4. The maximum lifting weight is 1000 ㎏,
5. and the maximum lifting height is 8.3m.
6. Outrigger span: single-row cab longitudinal X transverse (mm): 4840X3780,
7. double-row cab longitudinal X transverse (mm): 4020X3780.
8. The rated load of the crane is less than or equal to 200 ㎏.
9. Hanging basket size: 1080X610X1100,
10.external tie rod for mechanical leveling, with cylinder locking function, two-position operation of the turntable and hanging basket,
all four legs extend horizontally and can be adjusted individually, and the balance tie rods are all solid.
High Platform Truck 18M Bucket Vehicle Aerial Work Platform Lifting Truck
MODLE:Dongfeng
Color: White Cabin, White Body
Drive type: LHD
Cabin: with A/C
Engine Brand: YC4E120-33
Engine power: 120Hp
Tyre: 7.50R16
Working height: 18m
Color: White Cabin, White Body
Drive type: LHD
Cabin: with A/C
Engine Brand: YC4E120-33
Engine power: 120Hp
Tyre: 7.50R16
Working height: 18m
Specification:
The Specification of
Factory High Platform Truck 18M Bucket Vehicle Aerial Work Platform Lifting Truck
:
|
Products Technical Specification
|
|
|
|
Type
|
4*2 aerial working truck
|
|
|
Brand
|
Dongfeng
|
|
|
Cab
|
Single row,
|
|
|
Vehicle Description
|
|
|
|
Overall dimensions（mm）
|
8420×2280×3420
|
|
|
G.V.W (kg)
|
7490
|
|
|
Curb weight(vehicle) (kg)
|
7295
|
|
|
Max speed (Km/h)
|
95
|
|
|
Engine
|
|
|
|
Engine model
|
YC4E120-33
|
|
|
Maximum power
|
88 (120hp)
|
|
|
Displacement (lit)
|
3856CC
|
|
|
Engine Manufacturer
|
Yuchai Engine Co., Ltd.
|
|
|
Chassis Description
|
|
|
|
Wheel base
|
3800
|
|
|
Type of fuel
|
Diesel
|
|
|
Gear box
|
5-speed with over drive
|
|
|
Brake system
|
Air braking
|
|
|
Operation control system
|
Power Steering
|
|
|
Electric system
|
24V
|
|
|
Tyres
|
7.50R16
|
|
|
Crane description telescopic boom 3 section
|
|
|
|
Max. working height
|
18m
|
|
|
Loading weight of working hook
|
200kg
|
|
|
Swing angle
|
360degree
|
|
|
Swing speed
|
0-2r/min
|
|
|
Supporting legs
|
4sets hydraulic supporting legs
|
|
|
|
|
|
Detail Equipment of
High Platform Truck 18M Bucket Vehicle Aerial Work Platform Lifting Truck
:
DFAC Aerial Platform Truck 18meter High Altitude Working Truck
:
1. adopt the double lifting hydraulic cylinder, four units hydraulic cylinder for up and down, it couldn’t tremble, don’t shake,better stability and security.
2. Good quality valve and hydraulic cylinder, good stability and easily operation, leg and working boom interlock to prevent wrong operation bit.
3. Four units supporting legs to make sure the stability and security of the truck during operation.
4.aerial operation truck can be up and down operation, 360 degree rotation, install a hand throttle.
1. adopt the double lifting hydraulic cylinder, four units hydraulic cylinder for up and down, it couldn’t tremble, don’t shake,better stability and security.
2. Good quality valve and hydraulic cylinder, good stability and easily operation, leg and working boom interlock to prevent wrong operation bit.
3. Four units supporting legs to make sure the stability and security of the truck during operation.
4.aerial operation truck can be up and down operation, 360 degree rotation, install a hand throttle.
DFAC Aerial Platform Truck 18meter High Altitude Working Truck :
A limit device is installed under the main arm, which cannot be rotated without raising the main arm, which avoids the occurrence of rotation and gearing when the operation is incorrect.
