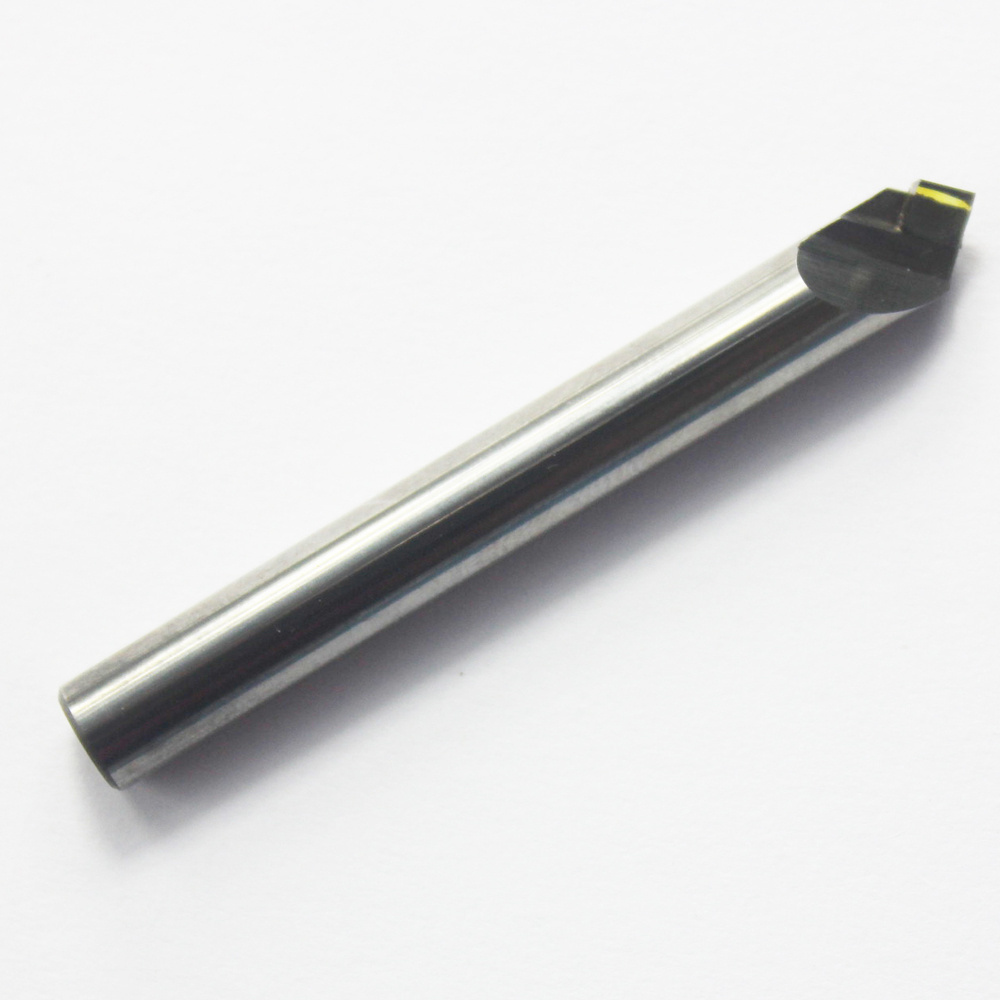

HPHT MCD diamond precision machining tool natural diamond turning dresser

Product Description

>>Natural Diamond and Mono-Crystal Diamond can not be used to process ferrous metal because they have affinity for ferrous metal. The applications of Natural Diamond and Mono-Crystal Diamond are non-ferrous materials (aluminum alloys, copper alloys, Gold, Silver,non-electrolytic nickel and plastic ),  infrared opticsbrittleness materials (germanium, silicon, and etc.), precious metal, high melting point metal and non-metallic materials.

Physical properties - numerical values
Hardness -60,000 to 100,000 MPa, depending on crystal direction and temperature
Bending strength -210~490MPa
Compressive strength -1500~2500MPa
Elastic modulus - (9 ~ 10.5) × 10 12 power MPa
Thermal conductivity -8.4~16.7J/cm·s·°C
Mass heat capacity -0.156J/(g·°C) (normal temperature)
Start oxidation temperature -900~1000K
Start graphitization temperature -1800K (in inert gas)
Friction coefficient between aluminum alloy and brass -0.05 to 0.07 (at normal temperature)

>>Diamond is the hardest known mineral substances, mainly used for finishing copper, aluminum and its alloys, be widely used in aerospace,

jewelry processing, watches, instruments manufacturer, fiber optic cable and other fields, such as: polishing acrylic sheet, turning precious metals,

tubes, gyroscopic instrument parts, electrical steering, table hub, pens, contact lenses, ect.

>> The specializations of diamond make Nature Diamond and Single Crystalline Diamond cuttings tools are good at processing copper,

aluminum and their alloys, and are widely used in jewelry, clock & watch,instruments & apparatuses, optical lens, LED products,

cosmetic exterior, mobile phone, camera, acrylic, high finish hardware, medical apparatus, aerospace, automobile andothers

manufacturing field. And part of diamond tools are used for dressers for wheel dressing, burnishing tools and wire drawing dies.

>>The features for our Crystal diamond tools:

diamond milling tool, as our competitive product, has been applied successfully in the electrical industry, auto spare parts, woodworking industry.

Typically, Foxconn Group is using our End Mills for milling the aluminum frame of iPad and iPhone for 2 years.

>>The more detail information about our CS series diamond tip cutter:(as the following)

• We have complete ranges of diamond tools, from machine clip blades to turning tools.

The Usage Attention:

>>Diamond cutting tools are easily damaged, so the cutting edge should be covered with rubber or plastic caps when they are not in use.
>>Store them in separate containers when not in usage.
>>When inspecting and setting up,plz use optical instruments if possible.

>>Use copper shimstock or plastic between the cutting tools and micrometers or height gauges. If these are used, to avoid breaking the cutting edge.

>>Don't bring the diamond into contact with the work in a stationary position or stop the machine during the cut.
