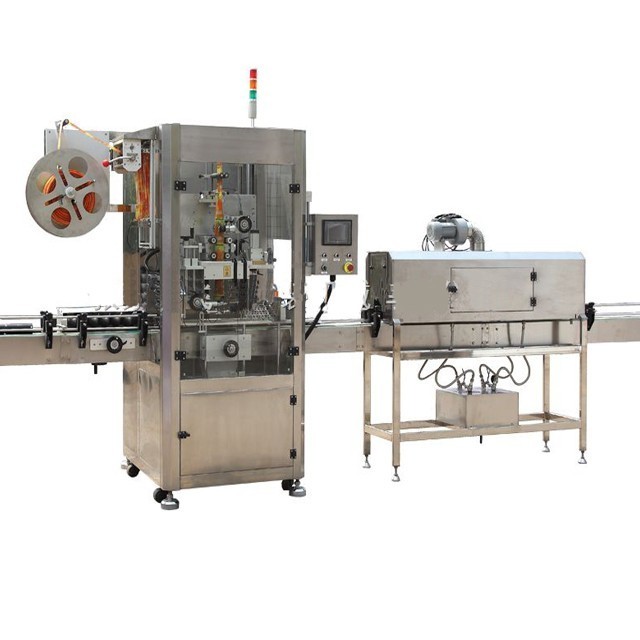

Automatic water bottle shrink sleeve applicator
1. The machine is suitable to shrink the labels both on the mouth and the body of the bottles, especially for abnormity bottles. It can be used solely, and it also can be used after the Label Inserting Machine to set up an automatic production lines.
2. It should be set astride the conveyor. In case of different and irregular round Bottles, square Bottles and flat Bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of low pressure steam drum and spouting way of steam are uniform and designed with seamless tube.
3. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water proof design with the convenience of operation and maintenance.
Label cutting and sleeve part
brush label to the right part
shrink label tunnel/oven & steam generator
|
Model
|
KLMC-150
|
KLMC-250
|
KLMC-350
|
KLMC-450
|
|||
|
Speed
|
Max. 150BPM
|
Max. 250BPM
|
Max. 350BPM
|
Max. 450BPM
|
|||
|
Applicable diameter of bottle
|
φ25mm –φ125mm (More bigger bottle customizable)
|
|
|
|
|||
|
Height of shrink label
|
25 mm ~300mm,special can be designed
|
|
|
|
|||
|
Thickness of shrink label
|
0.035mm~0.13m(PVC ,PET ,OPS)
|
|
|
|
|||
|
Shrink tunnel
|
Electrical / steam
|
|
|
|
|||
|
Power
|
Label sleeve machine: 1.5kw Steam generator: 12kw or 18kw
|
|
|
|
|||
|
Machine Size
|
1000*860*1800L*W*H(mm)
|
|
|
|
|||
All the electrical part use international famous brand, Motor: ABB. Sensor: Autonics. PLC: Mitsubishi. Touch screen: WEINVIEW.
Automatic water bottle shrink sleeve applicator
1) Inquiry and consulting support.
2) give us your request (hour capacity of the production line you want)
3) we workout the design of the production line
4) View our Factory and make the final contract
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas. Instal the machine at site
|
Packaging
|
|
|
|
Size
|
2100 (L) * 2100 (W) * 2200 (H)
|
|
|
Weight
|
2 T
|
|
|
Packaging Details
|
Automatic water bottle shrink sleeve applicator
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
