Quick Details
-
Power:
-
11.8KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rhinoceros/Rhino/XINIU
-
Maximum Digging Height:
-
2620 mm
-
Maximum Digging Depth:
-
1850 mm
-
Machine Weight:
-
1080 kg
-
Max Digging Radius:
-
3135 mm
-
Rated Speed:
-
1.5 km/h
-
Track Material:
-
Rubber
-
Overall height:
-
2270mm
-
Bucket width:
-
380mm
-
Pump type:
-
Single Gear Pump
-
Motor brand:
-
Eaton
-
Swing speed:
-
10.5rpm
-
Fuel tank capacity:
-
11L
-
Hydraulic tank capacity:
-
16L
-
Color:
-
Yellow or Red
-
Item Name:
-
Mini Excavator
Quick Details
-
Operating Weight:
-
1ton, 1.2ton
-
Bucket capacity:
-
0.02 cbm
-
Engine Brand:
-
Yanmar or Kubota engine
-
Power:
-
11.8KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rhinoceros/Rhino/XINIU
-
Maximum Digging Height:
-
2620 mm
-
Maximum Digging Depth:
-
1850 mm
-
Machine Weight:
-
1080 kg
-
Max Digging Radius:
-
3135 mm
-
Rated Speed:
-
1.5 km/h
-
Track Material:
-
Rubber
-
Overall height:
-
2270mm
-
Bucket width:
-
380mm
-
Pump type:
-
Single Gear Pump
-
Motor brand:
-
Eaton
-
Swing speed:
-
10.5rpm
-
Fuel tank capacity:
-
11L
-
Hydraulic tank capacity:
-
16L
-
Color:
-
Yellow or Red
-
Item Name:
-
Mini Excavator

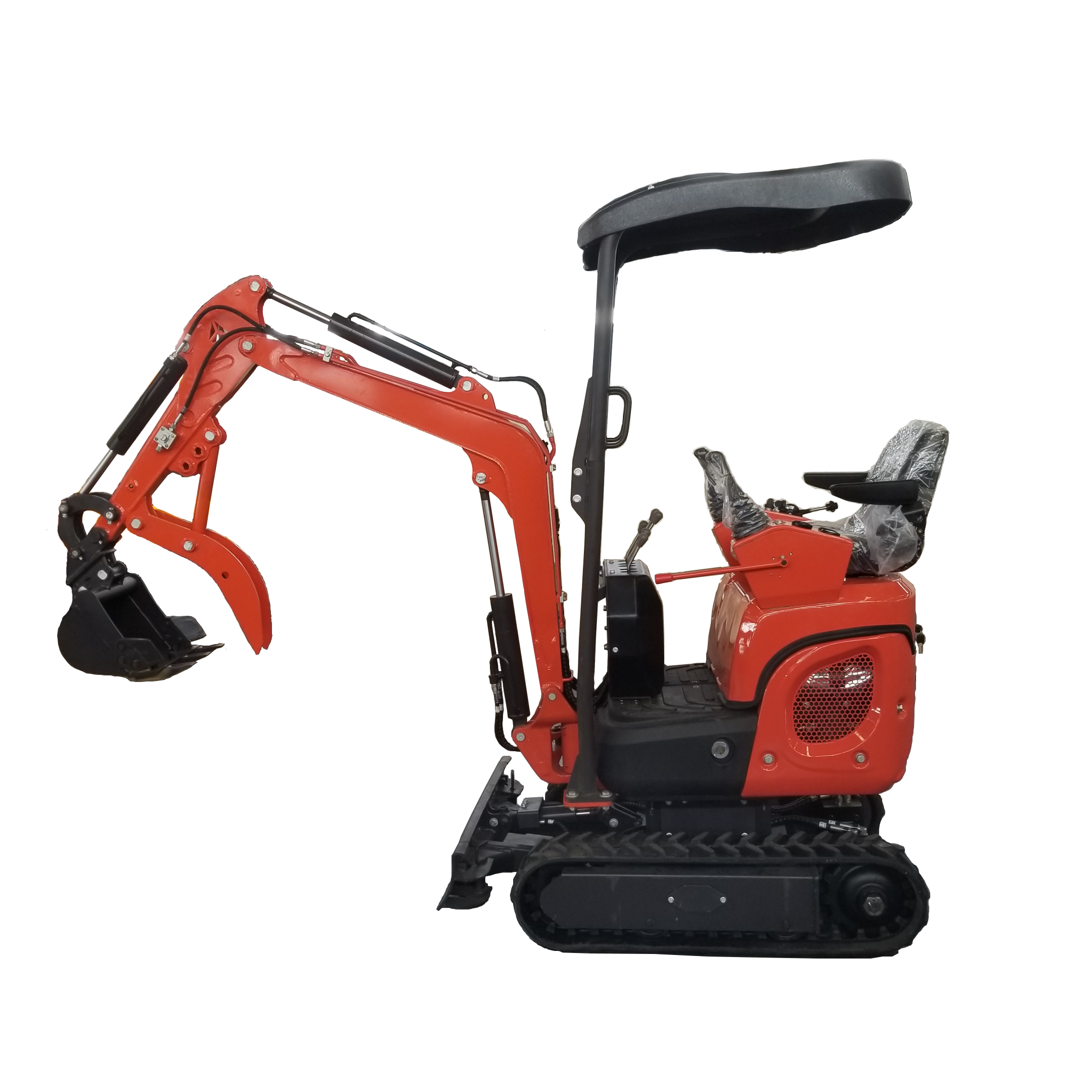

Rhinoceros XN12-9 mini crawler excavator Ce Mini Excavator 1 Ton
XN12-9 New in 2024 compact and flexible, powerful in power, low fuel consumption, low in price.
Our excavator have two engines are available for customers to choose from.
The Chinese single-cylinder air-cooled diesel engine is cheaper and more affordable, suitable for small jobs in the courtyard and farmland;
Japan's Kubota Brand three-cylinder water-cooled engine has stronger power and better quality. It can be used for small projects, road paving, house construction and so on.
The side swing function of the boom allows the excavator to reach corners that cannot be reached by ordinary excavators. The telescopic chassis is also a standard feature to ensure better stability of the excavator, and by shrinking the chassis, the excavator can pass through a narrower passage.
Finally, although the body is small and exquisite, it can also be equipped with multiple attachments, such as micro grapple, small hole
Product Paramenters
|
Model
|
XN12-9
|
|
Brand
|
RHINOCEROS
|
|
Machine Weight
|
1080kg
|
|
Bucket capacity
|
0.025cbm
|
|
Bucket width
|
380mm
|
|
Engine
|
Kubota Engine
|
|
Rated power
|
10.2kw / 2500rpm
|
|
Swing speed
|
10.5rpm
|
|
Pump type
|
Gear pump
|
|
Telescopic chassis width
|
950-800 mm
|
|
Max. Digging depth
|
1580 mm
|
|
Max. Vertical digging depth
|
1377mm
|
|
Max. Digging height
|
2646 mm
|
|
Max. Dumping height
|
1876mm
|
|
Max. Digging radius on ground
|
3039mm
|
|
Min. Rotation radius
|
1510mm
|
Details Images
Telescopic chassis
Generally, the chassis is in a normal state, when a more stable grip effect is required, the chassis can be
extended
to both sides to enhance the stability of the chassis. But when you encounter a narrow passage, you can retract the chassis to the inside and pass the narrow passage smoothly
Accessories
Our company
Certifications
Exhibition
Product packaging and shipping
FAQ
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 13 units can be in a 40HQ container.
will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 13 units can be in a 40HQ container.
will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
