Quick Details
-
Applicable Models:
-
Universal
-
Combination:
-
Diagnoses
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SDconnect
-
Model Number:
-
S-tar C 4doip
-
Warranty:
-
1 Years
-
Name:
-
St-ar C 4plus
-
Function:
-
Diagnoses
-
Version:
-
Newest Version
-
Package:
-
Standard Packing
-
Certification:
-
CE,FCC,ROHS
-
MOQ:
-
1
-
Weight:
-
4kg
-
Language:
-
Mutliple Languages
-
Application:
-
12v&24v
-
Special Features:
-
Support Wireless Diagnose
Quick Details
-
Car Fitment:
-
Mercedes Benz
-
Voltage:
-
12V-24V
-
Power:
-
24w
-
Applicable Models:
-
Universal
-
Combination:
-
Diagnoses
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SDconnect
-
Model Number:
-
S-tar C 4doip
-
Warranty:
-
1 Years
-
Name:
-
St-ar C 4plus
-
Function:
-
Diagnoses
-
Version:
-
Newest Version
-
Package:
-
Standard Packing
-
Certification:
-
CE,FCC,ROHS
-
MOQ:
-
1
-
Weight:
-
4kg
-
Language:
-
Mutliple Languages
-
Application:
-
12v&24v
-
Special Features:
-
Support Wireless Diagnose

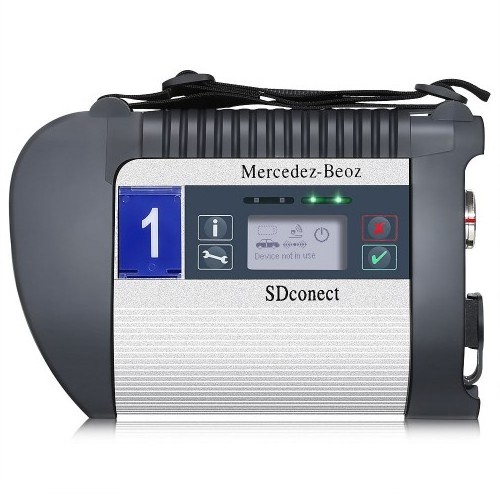

High Quality Star C 4 Doip SD Connect C4PLUS Software 2023.08V 12v 24v Car Diagnosis Truck Scanner Diagnostic Tool for MB Trucks
Notice: this is hardware only not include software, now the latest sofwtare is 2023.08 version, please contact me to order the software
|
Top 7 Reasons to Get SD C 4 for MB :
|
|
|
|
1. The new SDconnect C 4 (1:1 clone of the original)
2. Wireless connection is stable. C 4 is connected automatically to WLAN for diagnostic tests. 3. Remote help is available. 4. Good Quality, It's waterproof, shockproof and tamper proof. 5. with Free DTS Monaco & Vediamo for Cars and Trucks 6. Support both 12V Cars and 24V Trucks. |
|
|
MB SD C 4 Scanner PCB Board Display:
MB Compact 4 features:
1. New MB SD Connect Compact 4 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old M B STAR C 4 main board do not have UDS chip, so old MB STAR C 4 can not support it;
2. Multiplexer now use Lan cable to connect, can fit Only applies to DELL computer and ThinkPad computer;
3. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;
4. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;
MB SD C 4 Supported Vehicle List:
Passenger Car Support List:
For A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222),S(221), S(220), S(140), S(126), E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SLK(171),SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124),
S(222), S(221), S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SL(231), SL(230),SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)
Van Support List:
Truck Support List:
For Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000,SKL, FSK, Further model series
Unimog Support List:
For U20, UGN, UHN
Bus Support List:
For TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405- O408, Minibus, OC500, TOURO,TOURINO, MBC, MULITEGO, O500, O500/ OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES
Super Sports Car Support List:
For SLR(199)
How to set WIFI for New SD C 4 for MB?
1. Disconnect the local area connection
2. Connect the sdconnect 4 with the car and start the car
3. Connect to the wireless connections, please follow the next instructions to set: click Configuration-MUX-Register/configure,under the "General information", select name "04" and then tick off "Wlan parameters, road", then set the following parameters: IP address: 192.168.2.200, Network screen: 255.255.255.0, Encryption: WEP / Hex, Key: aaaaaaaaaaaaaaaaaaaaaaaaaa (26 a in total), we
have video tutorial, please click column "Video" to watch or contact our customer service to send you.
What should you pay attention when you use SD Connect 4:
1) From software 2015.3 on, DAS icon will not shown on the desktop, DO NOT ADD this DAS icon by yourself when you use the software. Otherwise it will cause some error even destroy the software by doing this. We will charge fee if software is destroyed by this way.
2) If you need to use DAS to diagnose your car. Just enter Xentry. If your car need to be done by DAS, then software will switch to DAS interface automatically
3) Battery: When you first time to use this SD C 4, you need to use the 100% brand new battery on the main unit, not rechargable battery! After done, then no need battery for main unit anymore if you use this software all the time. Because this battery is for update. If you use newer software in the future, then when you first time use the newer software, you need to use new battery for update again.
4) For USA configuration DOIT system after 2014. ALL star C3, C4, SD C4 does not support. For DOIT system after 2014, need to use XENTRY C5 to work.
