Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KMCABLE, KMCABLE
-
Model Number:
-
CYKY
-
Size:
-
3x1.5mm 3x2.5mm
-
Product name:
-
PVC
-
Standard:
-
IEC 60502
-
Color:
-
Black
-
Conductor:
-
Copper
-
Insulation:
-
PVC
-
MOQ:
-
500M
-
Certificate:
-
CE/ISO9001/ISO14001 /OHSAS18001/CCC
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KMCABLE, KMCABLE
-
Model Number:
-
CYKY
-
Size:
-
3x1.5mm 3x2.5mm
-
Product name:
-
PVC
-
Standard:
-
IEC 60502
-
Color:
-
Black
-
Conductor:
-
Copper
-
Insulation:
-
PVC
-
MOQ:
-
500M
-
Certificate:
-
CE/ISO9001/ISO14001 /OHSAS18001/CCC
Products Description

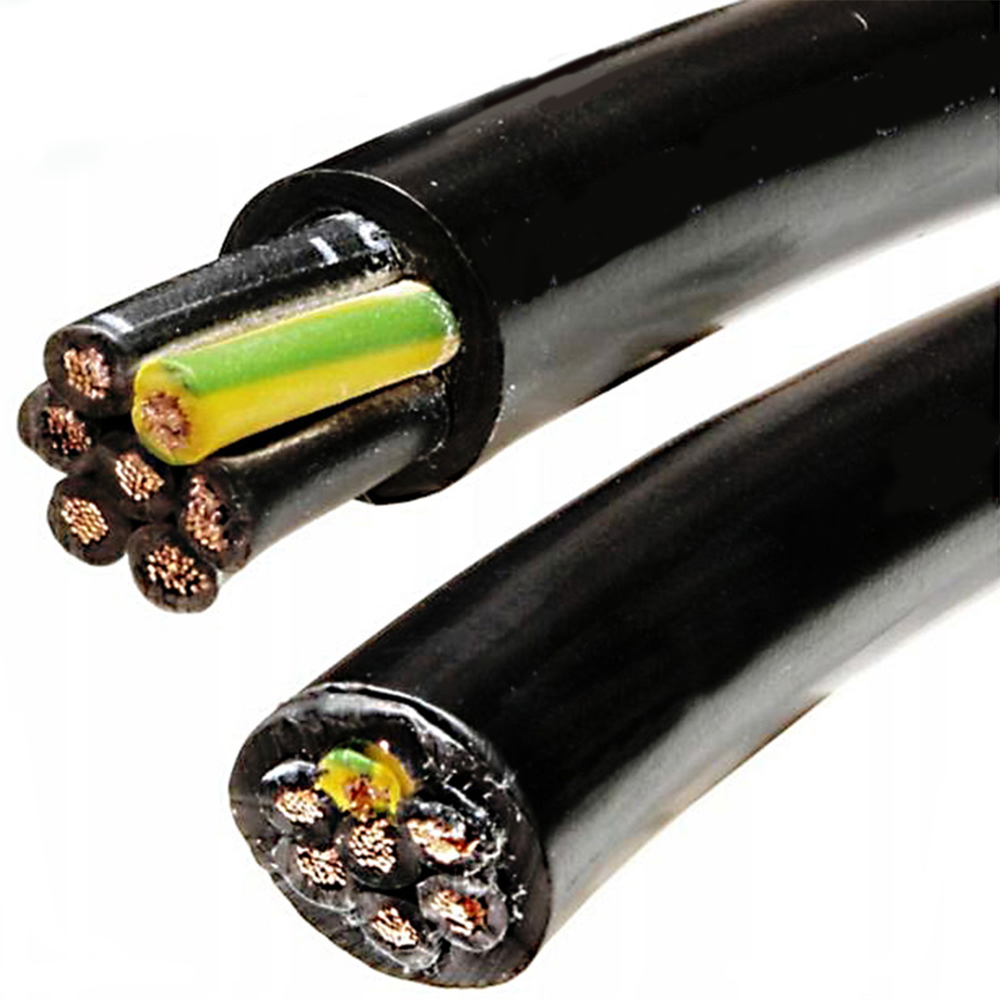

CYKY-J
These cables are designed for fixed installation both indoors and outdoors, suitable for embedding in the ground and
concrete. The CYKY-J cable boasts excellent resistance to UV radiation and complies with the IEC 60332-1-2 standard for flame propagation. You can easily identify five main types by their color stripes: 3×1.5-J in blue, 3×1.5-O in red, 3×2.5 in green, 5×1.5 in violet, and 5×2.5 in yellow.
concrete. The CYKY-J cable boasts excellent resistance to UV radiation and complies with the IEC 60332-1-2 standard for flame propagation. You can easily identify five main types by their color stripes: 3×1.5-J in blue, 3×1.5-O in red, 3×2.5 in green, 5×1.5 in violet, and 5×2.5 in yellow.
Specifications
|
Nom.Cross Section Area
N x mm2
|
Insulation Thickness
mm
|
Nom. overall diameter
mm
|
Nom. Weight
kg/km
|
|
2x1.5
|
0.7
|
7.8
|
84
|
|
2x2.5
|
0.8
|
9.1
|
130
|
|
3x1.5
|
0.7
|
8.1
|
108
|
|
3x2.5
|
0.8
|
9.9
|
168
|
|
5x1.5
|
0.7
|
10
|
166
|
|
5x2.5
|
0.8
|
12.8
|
247
|
