- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
600
-
Machine Type:
-
Metal Polishing Machine
-
Size:
-
890x800x1440 mm
-
Color:
-
Customer's Request
-
Power Supply:
-
1 Phases AC 220V 50-60HZ or customized
-
Capacity:
-
38 liter / 1 cu ft
-
Raw material:
-
Steel/ Dow chemical PU
-
Advantage:
-
Simply Operating
-
Certification:
-
ISO9001:2008
-
Application:
-
Deburring and Polishing
-
Weight:
-
220 kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inovatec
-
Power (kW):
-
7.5
-
Weight (KG):
-
600
-
Machine Type:
-
Metal Polishing Machine
-
Size:
-
890x800x1440 mm
-
Color:
-
Customer's Request
-
Power Supply:
-
1 Phases AC 220V 50-60HZ or customized
-
Capacity:
-
38 liter / 1 cu ft
-
Raw material:
-
Steel/ Dow chemical PU
-
Advantage:
-
Simply Operating
-
Certification:
-
ISO9001:2008
-
Application:
-
Deburring and Polishing
-
Weight:
-
220 kg
Product Details & Optionals
Centrifugal dics finishing machine Product Description:
Centrifugal Deburing Machine Product Description:

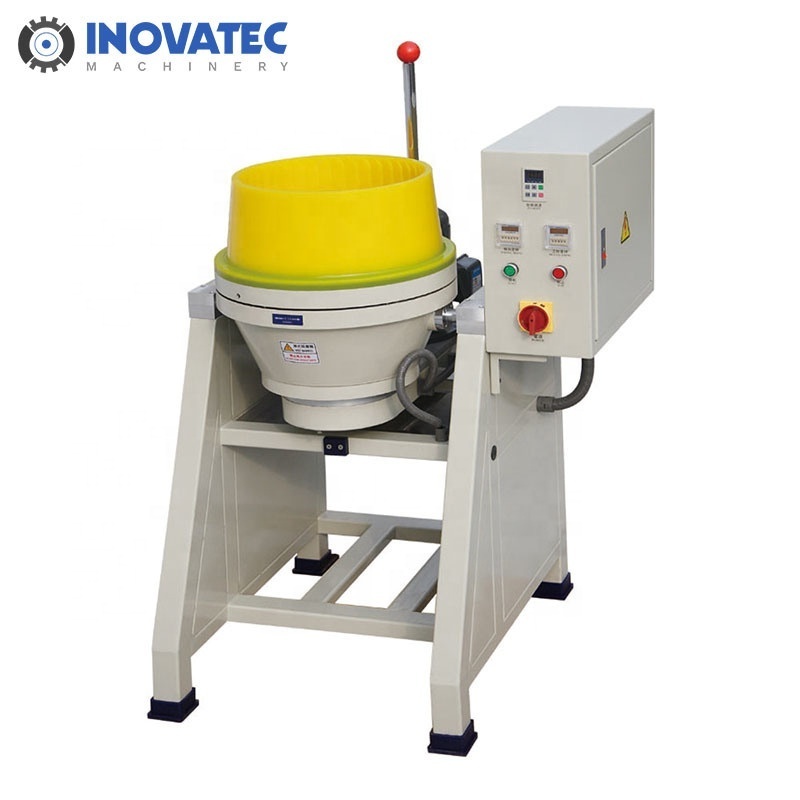

Centrifugal deburing machine VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a
lot finishing job in a short time.
Centrifugal Disc Finisher VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a
lot finishing job in a short time. In addition, VA series machines significantly reduce material handling and manual involvement
in metal finishing.
VA9, VA20, and VA38 series gyrate polishing machine adopt patent small gap (about 0.05-0.1mm) design. Therefore we can polish very
thin parts like earring and pendants. This user-friendly feature made it possible to polish complicated and thin workpiece.
The application includes BRACELETS AND WATCH CASES, deburring, edge rounding, grinding and polishing, mirror finish etc.
Centrifugal Deburing Machine Feature:
Digital timer control
Adjustable speed control
Forward and backward tumbling
4 barrels with removable PU insert
Automatic media & parts discharge
Centrifugal Deburing Machine Application:
Small size delicate parts
Jewelry parts
Medical device
Dental parts
Aerospace engine blade
Acrylic and rubber parts
Centrifugal deburing machine VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a
lot finishing job in a short time.
Centrifugal Disc Finisher VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a
lot finishing job in a short time. In addition, VA series machines significantly reduce material handling and manual involvement
in metal finishing.
VA9, VA20, and VA38 series gyrate polishing machine adopt patent small gap (about 0.05-0.1mm) design. Therefore we can polish very
thin parts like earring and pendants. This user-friendly feature made it possible to polish complicated and thin workpiece.
The application includes BRACELETS AND WATCH CASES, deburring, edge rounding, grinding and polishing, mirror finish etc.
Centrifugal Deburing Machine Feature:
Digital timer control
Adjustable speed control
Forward and backward tumbling
4 barrels with removable PU insert
Automatic media & parts discharge
Centrifugal Deburing Machine Application:
Small size delicate parts
Jewelry parts
Medical device
Dental parts
Aerospace engine blade
Acrylic and rubber parts
|
Type
|
VA 9
|
VA 2x9
|
VA 3x9
|
VA 18
|
VA 2x18
|
VA 3x18
|
VA 36
|
VA 2x36
|
VA 3x36
|
|
Total capacity
|
9L
|
2*9L
|
3*9L
|
18L
|
2*18L
|
3*18L
|
36L
|
2*36L
|
3*36L
|
|
Maximal wokpiece (maximal)
|
20 mm
|
20 mm
|
20 mm
|
25 mm
|
25 mm
|
25 mm
|
30 mm
|
30 mm
|
30 mm
|
|
Barrel speed
|
0-450 rpm
|
0-450 rpm
|
0-450 rpm
|
0-450 rpm
|
0-450 rpm
|
0-450 rpm
|
0-400 rpm
|
0-400 rpm
|
0-400 rpm
|
|
Voltage
|
220 V/ 50-60 Hz
|
220 V/ 50-60
|
220 V/ 50-60 Hz
|
220 V/ 50-60 Hz
|
220 V/ 50-60 Hz
|
220 V/ 50-60 Hz
|
380 V/ 50-60 Hz
|
380 V/ 50-60 Hz
|
380 V/ 50-60 Hz
|
|
Power
|
0.37
|
2x0.37
|
3x0.37
|
0.75
|
2x0.75
|
3x0.75
|
2.2
|
2x2.20
|
3x2.20
|
|
|
kw
|
kw
|
kw
|
kw
|
kw
|
kw
|
kw
|
kw
|
kw
|
|
Motor speed
|
1340 rpm
|
1340 rpm
|
1340
|
1380 rpm
|
1380 rpm
|
1380 rpm
|
1430 rpm
|
1430 rpm
|
1430 rpm
|
|
Dimensions
|
606 x 660 x 1220
|
972 x 660 x 1220
|
1410 x 660 x 1220
|
700 x 790 x 1440
|
1160 x 790 x 1440
|
1690 x 790 x 1440
|
890 x 800 x 1440
|
1490 x 800 x 1440
|
2130 x 800 x 1440
|
|
Weight
|
100kg
|
160kg
|
220kg
|
140kg
|
235kg
|
330kg
|
220kg
|
370kg
|
530kg
|
Product Application
Aluminum machining parts before after deburring
aluminum parts before and after smoothing
automotive parts before and after deburring
bearing parts before and after polishing-min
brass precision parts before and after polishing-min
brass punched parts before and after polishing-min
brass retainer before and after polishing-min
carbon steel parts before and after deburring-min
Epoxy plastic parts before and after cleaning-min
service team & exhibition
Production process
Certifications
Cooperation partner
Payment and Shipment
FAQ
Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty
Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.
Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.
Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).
Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep
Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
