Quick Details
-
Model Number:
-
toyi
-
Brand Name:
-
TOYI
-
Product name,:
-
water valve electric
-
Body material:
-
Stainless Steel/PVC
-
Connection:
-
Bsp.NPT
-
Size Scope::
-
DN8-50 2 way DN15-25 3 way
-
Voltage:
-
DC3/6V DC9/24V AC220V AC85/265V
-
Output Torque:
-
10NM
-
Open/close time::
-
<12S
-
Working pressure:
-
Max 1.6 Mpa(16bar)
-
Protection grade:
-
IP65
-
Certificate:
-
CE
Quick Details
-
Port Size:
-
DN15~DN50
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
toyi
-
Brand Name:
-
TOYI
-
Product name,:
-
water valve electric
-
Body material:
-
Stainless Steel/PVC
-
Connection:
-
Bsp.NPT
-
Size Scope::
-
DN8-50 2 way DN15-25 3 way
-
Voltage:
-
DC3/6V DC9/24V AC220V AC85/265V
-
Output Torque:
-
10NM
-
Open/close time::
-
<12S
-
Working pressure:
-
Max 1.6 Mpa(16bar)
-
Protection grade:
-
IP65
-
Certificate:
-
CE
Product Description

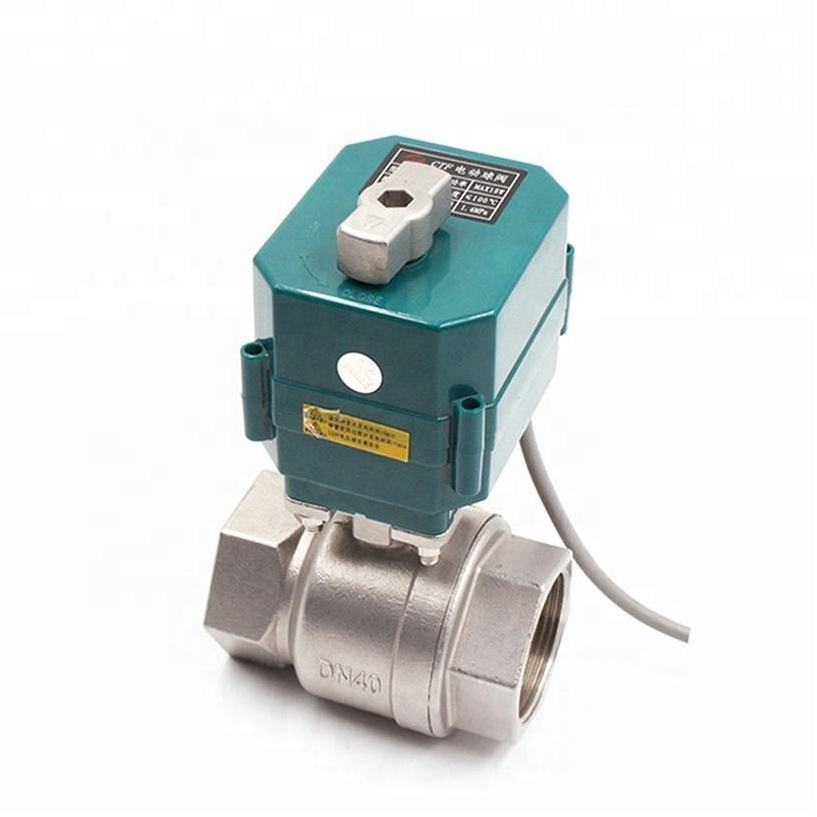

12v plastic motorized ball valve actuator BSP NPT 2 way 3 way stainless steel electric actuated upvc ball valve
1.Simple shape, small size, all-metal gear driving, reliable performance, large torque
up to 15NM, is the interface between mini and industrial-grade valve, the valve sealed
with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.
2.Electrical and mechanical double limit, accurate positioning, high consistency.
3.The connection of actuator and valve belong to ISO5211 standard, flange type
F03, F05,convenience for user choose valve body. And supply brass, stainless steel
ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.
4.Position indicator and manual override function (suitable for sudden power failure
or accident emergency switch )
up to 15NM, is the interface between mini and industrial-grade valve, the valve sealed
with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.
2.Electrical and mechanical double limit, accurate positioning, high consistency.
3.The connection of actuator and valve belong to ISO5211 standard, flange type
F03, F05,convenience for user choose valve body. And supply brass, stainless steel
ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.
4.Position indicator and manual override function (suitable for sudden power failure
or accident emergency switch )
1. University LABS, automotive laboratories.
2. Drug production, diesel fuel saving, etc.
3. Small equipment such as water saving, automatic control system and industrial
automatic control in colleges and universities.
4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.
5. Water-saving appliances, drinking water equipment, etc.
2. Drug production, diesel fuel saving, etc.
3. Small equipment such as water saving, automatic control system and industrial
automatic control in colleges and universities.
4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.
5. Water-saving appliances, drinking water equipment, etc.
|
|
Rated voltage
|
Output torque
|
Open/close time
|
Control model
|
Working
pressure
|
Special function
|
|
CTF001
|
DC3-6V
DC12V
A/DC9-24V
AC220V
AC85-265V
|
Max10NM
|
<12s
|
CR01 CR02 CR03 CR04 CR05
|
Max1.6Mpa
|
CR01 CR02 CR03 CR03 CR04(with signal feedback)
|
|
|
Motor voltage
|
Power
|
Working current
|
Medium temperature
|
Size
|
IP Garde
|
|
|
5V
|
Max18W
|
<500mA
|
0-90℃
|
DN8-50 Two-way DN15-25 Three-way
|
IP65
|
|
|
12V
|
Max22W
|
<300mA
|
|
|
|
|
|
24V
|
Max22W
|
<100mA
|
|
|
|
|
Material
|
Sizes
|
d
|
L
|
H
|
|
SS304/316
|
DN15
|
15
|
62
|
55
|
|
|
DN20
|
20
|
71
|
63
|
|
|
DN25
|
25
|
81
|
78
|
|
|
DN32
|
32
|
93
|
84
|
|
|
DN40
|
40
|
102
|
91
|
|
|
DN50
|
50
|
118
|
107
|
|
UPVC
|
DN15
|
15
|
121
|
50
|
|
|
DN20
|
20
|
135
|
62
|
|
|
DN25
|
25
|
150
|
69
|
|
|
DN32
|
32
|
165
|
82
|
|
|
DN40
|
40
|
181
|
99
|
|
|
DN50
|
50
|
206
|
122
|
|
Material
|
Sizes
|
d
|
L
|
W
|
H
|
|
Horizontal Three-way (Brass)
|
DN15
|
15
|
61
|
48
|
46
|
|
|
DN20
|
20
|
67
|
48
|
54
|
|
|
DN25
|
25
|
96
|
74
|
68
|
|
|
DN32
|
32
|
89.32
|
68
|
57
|
|
Horizontal Three-way (SS304/316)
|
DN15
|
15
|
80
|
52
|
54
|
|
|
DN20
|
20
|
82
|
62
|
59
|
|
|
DN25
|
25
|
87
|
67
|
71
|
|
|
DN32
|
32
|
115
|
90
|
89
|
Three way picture and flow method T type and L type:
