Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand:
-
custom-souring
-
Color:
-
Quality class A
Quick Details
-
Mounting Type:
-
see details
-
Description:
-
see details
-
Model Number:
-

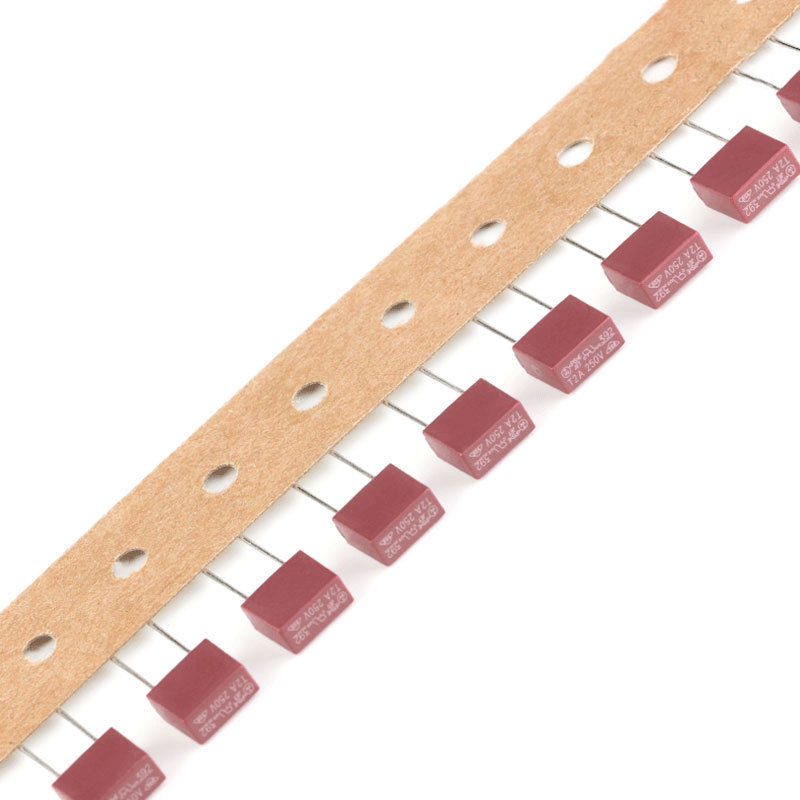

fuse 0.06 0.08 0.12A 0.2A 0.4 1A 2A
-
Place of Origin:
-
Fujian, China
-
Brand:
-
custom-souring
-
Color:
-
Quality class A
Product Description
Specification
we also have service for PCB and PCBA , Kindly check the following information if you have any request, please contact us freely !
|
Layer count
|
1-28L,HDI
|
|
Material
|
FR-4, High TG FR4, aluminium, FPC
|
|
|
Teflon,PTFE (F4B,F4BK), Rogers (4003,4350,5880)
|
|
Max board dimensions
|
800mm*620mm
|
|
Board shape
|
Rectangular,round,slots,cutouts,complex,irregular
|
|
Board type
|
Rigid,flexible,rigid-flexible
|
|
Board cutting
|
Shear,V-score,tab-routed,counter sunk
|
|
Board thickness
|
0.2~8.0mm, Flex 0.1~0.25mm
|
|
Thickness Tolerance
|
±10%
|
|
Min line width / space
|
3mil/3mil
|
|
Minimum Drilling Hole (Mechanical)
|
0.1mm
|
|
Minimum laser hole
|
0.075mm
|
|
Blind Hole/buried plate
|
YES
|
|
Hole Position/hole Tolerance
|
PTH:±0.076MM
|
|
|
NPTH:±0.05mm
|
|
InnerLayer Copper Thickness
|
0.5-3 oz
|
|
OutLayer Copper Thickness
|
0.5-4 oz
|
|
Impedance control tolerance
|
±10%
|
|
Surface finish
|
HASL,Lead free HASL,ENIG,Immersion Tin,Immersion Silver,OSP...
|
|
Solder mask
|
Double-sided green,red,white,blue,black,etc
|
|
Silkscreen
|
Double-sided or single-sided in white,black,or negative
|
|
PCB Testing
|
E-test, Flying probe test
|
|
Acceptable File Format
|
Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD
|
|
Quality Standards
|
IPC-A-600F and MIL-STD-105D CHINA GB<4588>
|
|
Types of PCB assembly
|
SMT (Surface Mounted Technology)
|
|
|
THT (Through Hole Technology)
|
|
|
Mixed (surface mount and through hole) technology
|
|
|
Cable assembly
|
|
Component
|
Passive Component: small as 01005, 0201
|
|
|
BGA, uBGA, QFN, POP, SOP,SSOP,PLCC,LGA
|
|
|
Fine Pitch Parts: 0.25mm fine pitch parts
|
|
|
Max Component Height: 25mm(SMT), Top 120mm/Bot 15mm (Wave-Solder)
|
|
Component Package
|
Reels, cut tape, Tube and tray, Loose parts and bulk
|
|
Board Dimension
|
Min Board Size: No Limited
|
|
|
Max Board Size: 680 x 500mm
|
|
Board Shape
|
We can assemble boards in Rectangular, Circular and irregular
|
|
Board Type
|
Rigid PCB, Flexible PCB, Rigid-flex PCB
|
|
Assembly process
|
Leaded
Lead-Free (RoHS) |
|
Design file format
|
Gerber RS-274X
BOM (Bill of Materials) (.xls, .csv, . xlsx) Centroid(Pick-N-Place/XY file) |
|
Electrical testing
|
X-ray Inspection
AOI (Automated Optical Inspection) Functional testing |
|
Certificate
|
ISO13485, IATF16949, ISO9001,ISO14001
|
|
Quality Standards
|
IPC-A-600/IPC-A-610 compliance
|
|
Type of Service
|
Turn-key, partial turn-key or consignment
|
|
Sub-assembly
|
Plastic case,metal case,screen
|
|
Silkscreen
|
Double-sided or single-sided in white,black,or negative
|
|
PCB Testing
|
E-test, Flying probe test
|
|
Acceptable File Format
|
Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD
|
|
Quality Standards
|
IPC-A-600F and MIL-STD-105D CHINA GB<4588>
|
