Quick Details
-
Weight (KG):
-
69 KG
-

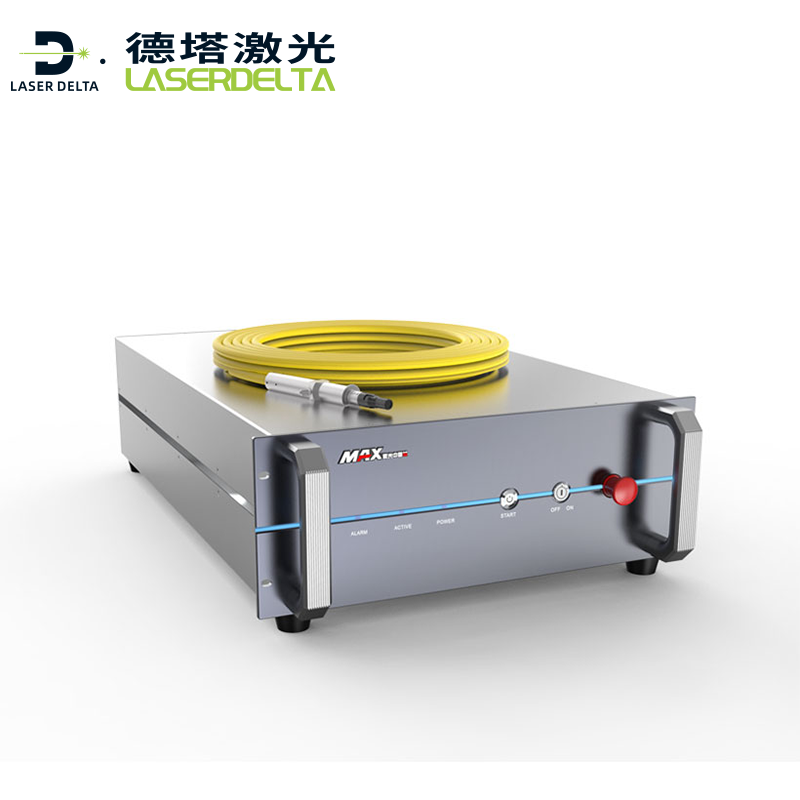

Product name:
-
laser source
-
Used for:
-
Fiber Laser Cutting Machine
-
Brand:
-
Raycus
-
Laser power:
-
1000w/1500w/2000w/3000w
-
Laser type:
-
CW Fiber Laser
-
Voltage range:
-
220±10%/380±10% VAC,50/60Hz
Quick Details
-
Place of Origin:
-
China
-
Spare Parts Type:
-
FREE
-
Brand Name:
-
MaxPhotonics
-
Weight (KG):
-
69 KG
-
Product name:
-
laser source
-
Used for:
-
Fiber Laser Cutting Machine
-
Brand:
-
Raycus
-
Laser power:
-
1000w/1500w/2000w/3000w
-
Laser type:
-
CW Fiber Laser
-
Voltage range:
-
220±10%/380±10% VAC,50/60Hz
Product Description
| model | MFSC-1000 | MFSC-1500 | MFSC-2000 | MFSC-3000 |
| Optical Characteristics | ||||
| Output power(W) | 1000~3000 | |||
| Working mode | Continuous / Pulse | |||
| polarization | random | |||
| Power regulation range(%) | 5~100 | |||
| Center wavelength(nm) | 1080(±10) | |||
| Spectral bandwidth 3dB(nm) | 5~7 | |||
| Short-term power stability(%) | 1 | |||
| Long-term power stability(%) | 3 | |||
| beam quality BPP(mm x mrad) | 1.8~3.2 | |||
| Laser on time (μs) | 150~200 | |||
| Laser off time (μs) | 150~200 | |||
| modulation frequency (KHz) | 5 | |||
| Indicates red light power (μW) | 200 | |||
| Output cable parameters | ||||
| output method | QBH(LOC) | |||
| Fiber Cable Length (m) | 20 | |||
| Output fiber core diameter (μm) | 100(150/200) | |||
| Fiber optic cable bend radius (mm) | 200 | |||
| Electrical parameters Working voltage(VAC) | 380 | |||
| Rated power consumption (KW) | 17 20 | |||
| Other parameters | ||||
| Working temperature (℃) | 10~40 | |||
| Relative humidity of working environment(%) | 10~85 | |||
| Cooling method Water cooling Storage temperature (℃) | -10~60 | |||
| Overall size(mm) | 640×1173×1102(W×D×H) | |||
| weight(kg) | 240(±20) | |||
]
