Quick Details
-
Material:
-
Epoxy Resin/Fiber Glass
-
Tensile Strength:
-
5
-
Surface treatment:
-
Smooth
-
Technique:
-
Pultrusion
-
Dimension:
-
Customizable
-
Shape:
-
Round/Square/Hexagon
-
Length:
-
Customizable
-
Feature:
-
Fire Retardant,Corrosion resistance, high temperature resistance
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KaiYue
-
Model Number:
-
874452
-
Material:
-
Epoxy Resin/Fiber Glass
-
Tensile Strength:
-
5
-
Surface treatment:
-
Smooth
-
Technique:
-
Pultrusion
-
Dimension:
-
Customizable
-
Shape:
-
Round/Square/Hexagon
-
Length:
-
Customizable
-
Feature:
-
Fire Retardant,Corrosion resistance, high temperature resistance

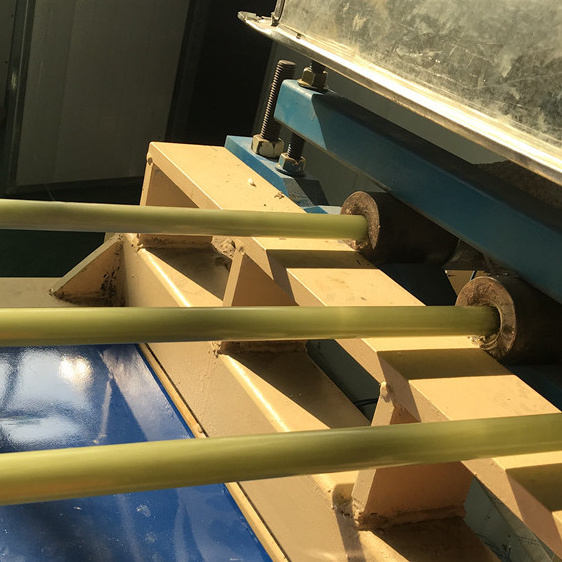

Fiber Glass Rod
Application: polymer insulator/arrester/cutout fuse
Technique: Pultrusion
Dimensions: D2MM-D170MM
Material: epoxy resin and fiberglass
Color: brown or green/customerizable
Characteristic
1). Corrosion resistant, light
2). Extremely strong and durable
3). Composite bar, fiberglass bar, FRP bars
4). High strength
5). Fire retardant
6). Good insulation
7). Fiberglass stick
8). Colorful, UV resistant
9). Good flexibility , corrosion resisting
Technical Parameter
|
No. |
Parameter |
unit |
specification |
|
1 |
Density(at 20±2) |
g/cm 3 |
2.2 |
|
2 |
Water absorption rate (at20±2,24h) |
% |
0.05 |
|
3 |
Tensile strength |
Mpa |
1690 |
|
4 |
Bending strength |
Mpa |
1100 |
|
5 |
Dye penetration test |
Min |
15 |
|
6 |
Water diffusion test(1%nacl,boiling for 100h 12kv/1min) |
μA |
<10 |
|
7 |
Shearing strength along laminals |
Mpa |
50 |
|
8 |
Volume resistivity(140 ℃ ,96h) |
Ω.M |
10 10 |
|
9 |
DC withstand voltage(10min) |
kV |
50 |
|
10 |
Lightning surge withstand voltage(100kv,10mm) |
times |
5 |
|
11 |
Bending strength at heating conditions |
Mpa/150 |
350 |
|
12 |
Stress corrosion (1 mol/1hno3,at 67% stress) |
h |
7200 |
|
13 |
Torsion strength |
Mpa |
800 |
Fiber Glass Rod Weight Chart
Application
