Quick Details
-
Brand Name:
-
HW
-
Dimension(L*W*H):
-
450*410*700MMmm
-
Product name:
-
hydraulic rock splitter
-
Usage:
-
Large Blocks Splitting
-
Key word:
-
Rock Splitter
-
Main market:
-
Europe,Asia America
-
COLOR:
-
REQUIRED
-
Item:
-
Hydraulic Rock Breaker
-
Drilling Depth:
-
600mm
-
Splitting Diameter:
-
42-45mm
-
Engine:
-
Engine: Diesel Engine
-
Splite Width(mm):
-
50--60mm
Quick Details
-
Weight (KG):
-
50
-
Application:
-
Splitting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Dimension(L*W*H):
-
450*410*700MMmm
-
Product name:
-
hydraulic rock splitter
-
Usage:
-
Large Blocks Splitting
-
Key word:
-
Rock Splitter
-
Main market:
-
Europe,Asia America
-
COLOR:
-
REQUIRED
-
Item:
-
Hydraulic Rock Breaker
-
Drilling Depth:
-
600mm
-
Splitting Diameter:
-
42-45mm
-
Engine:
-
Engine: Diesel Engine
-
Splite Width(mm):
-
50--60mm

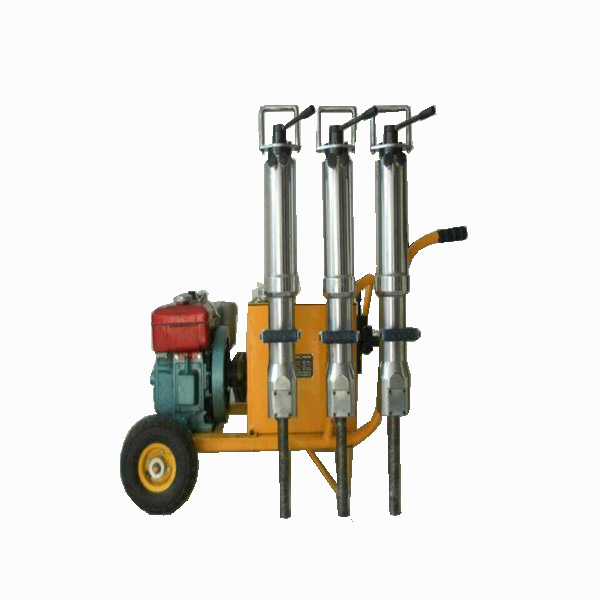

Diesel splitter easy carry hydraulic rock splitting machine hand push stone breaking machine
The hydraulic rock & concrete splitter is the most suitable tool for demolition. It has many advantages:
1) Powerful( Max:1000T ), it can split the stone or concrete easily.
Hydraulic Stone Splitter Rock Breaker Diesel Stone Breaker
2) High Efficiency, it can split the stone in 5-10 seconds.;
Diesel splitter easy carry hydraulic rock splitting machine hand push stone breaking machine
3) Long-life, the wedges stands wear and tear;
4) Easy to operate and maintain;
Hydraulic Stone Splitter Rock Breaker Diesel Stone Breaker
5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
Diesel splitter easy carry hydraulic rock splitting machine hand push stone breaking machine
6) Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.
|
Splitting cylinders parameters
|
|
|
|
|
|
|
||||||
|
model
|
HW80-250
|
HW80-350
|
HW80-450
|
HW90-250
|
HW90-350
|
HW90-450
|
||||||
|
piston diameter
|
80mm
|
80mm
|
80mm
|
90mm
|
90mm
|
90mm
|
||||||
|
drilling diameter
|
Φ42mm
|
Φ45mm
|
Φ50mm
|
Φ42mm
|
Φ45mm
|
Φ50mm
|
||||||
|
drilling depth
|
≧500mm
|
≧550mm
|
≧600mm
|
≧500mm
|
≧550mm
|
≧600mm
|
||||||
|
wedge block length
|
250mm
|
350mm
|
450mm
|
250mm
|
350mm
|
450mm
|
||||||
|
crack width
|
10～40mm
|
10～40mm
|
10～40mm
|
10～40mm
|
10～40mm
|
10～40mm
|
||||||
|
splitting time
|
5～15s
|
5～15s
|
5～15s
|
5～15s
|
5～15s
|
5～15s
|
||||||
|
Theory of separatist force
|
600T
|
600T
|
600T
|
800T
|
800T
|
800T
|
||||||
|
The actul split force
|
480T
|
480T
|
480T
|
480T
|
480T
|
480T
|
||||||
|
weight
|
28Kg
|
29Kg
|
30Kg
|
31Kg
|
32Kg
|
33Kg
|
||||||
|
Pump pack parameters
|
|
|
|
|
|
|
||||||
|
Engine
|
Electric engine
|
|
|
Diesel engine
|
|
|
||||||
|
weight
|
60kg
|
110kg
|
150kg
|
100kg
|
130kg
|
150kg
|
||||||
|
capacity of tank
|
40L
|
60L
|
88L
|
45L
|
65L
|
90L
|
||||||
|
motor power
|
3.0KW
|
4.0KW
|
5.5KW
|
3Hp
|
5Hp
|
7.5Hp
|
||||||
|
working pressure(Mpa)
|
55-60
|
55-60
|
55-60
|
55-60
|
55-60
|
55-60
|
||||||
|
working flow(L/min)
|
2—13
|
2—13
|
2—13
|
2—13
|
2—13
|
2—13
|
||||||
|
configurable guns number
|
1—5
|
2—7
|
2—10
|
1—3
|
3—8
|
3—10
|
||||||
