Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Taoxing
-
Dimensions(L*W*H):
-
1230*950*1580mm
-
Weight:
-
490 KG, 520kg
-
Certification:
-
CE
-
Model:
-
TX-5080ST
-
Max Printing Size (mm):
-
500*800
-
Table Size (mm):
-
600*900
-
Max Frame Size (mm):
-
800*1200
-
Max printing speed (PCS/H):
-
1000
-
Printing Thickness (mm):
-
30
-
Outside Dimension (mm):
-
1460*1150*1650
-
Brand:
-
TAOXING
-
Certificate:
-
CE
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Taoxing
-
Dimensions(L*W*H):
-
1230*950*1580mm
-
Weight:
-
490 KG, 520kg
-
Certification:
-
CE
-
Model:
-
TX-5080ST
-
Max Printing Size (mm):
-
500*800
-
Table Size (mm):
-
600*900
-
Max Frame Size (mm):
-
800*1200
-
Max printing speed (PCS/H):
-
1000
-
Printing Thickness (mm):
-
30
-
Outside Dimension (mm):
-
1460*1150*1650
-
Brand:
-
TAOXING
-
Certificate:
-
CE

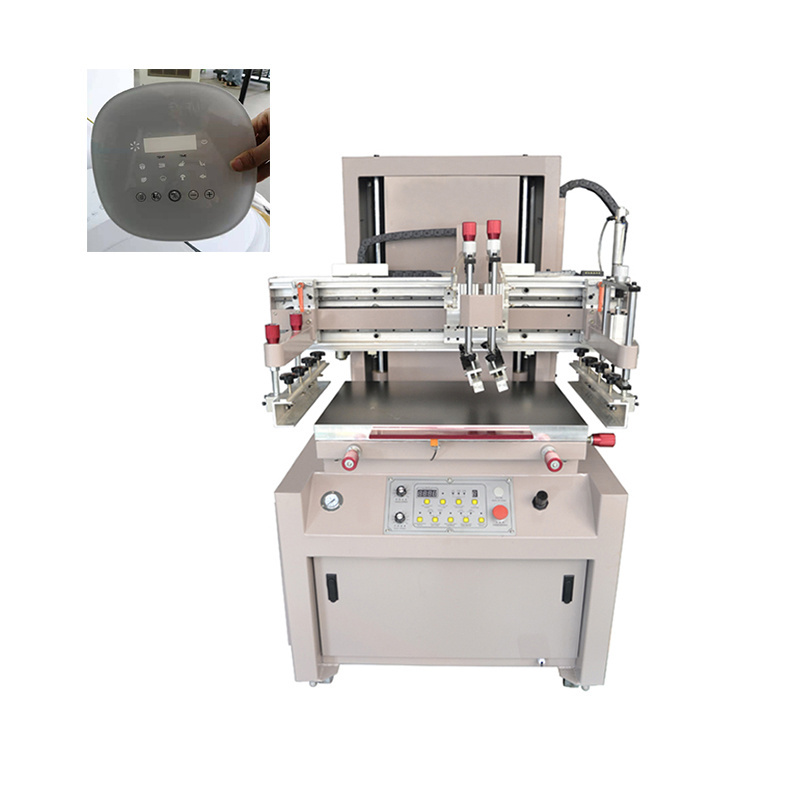

Machine Description
Application
Door Mat Printing machine is suitable for Flat surface printing on Printed circuit boards, Textile transfers, Paper , Stickers, Membrane switch,Signage, Glass, Wooden board, PVC film and so on
Main Features
1.Squeegee carriage on Hard Chrome Plated solid steel shaft with linear bearing motion.
2. Adjustable screen frame holder
3. Variable printing stroke length
4. Single/Double stroke selection
5. Parallel screen frame movement(Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
6. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
7.Adjustable squeegee angle from 0 to 30º
8.Aluminium extruded squeegee holder & coater for even pressure
9.Bed movement for registration x, y, & Rotary ±10 mm
10.Emergency Rod / Stop for safety of operator
11.Castor wheels for easy mobility
12.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
|
Specifications For Door Mat Printing machine
|
|
|
|
|||
|
Max Print Area
|
50*80CM
|
Vacuum Bed
|
60*90CM
|
|||
|
Screen Frame Size Max
|
80*120CM(OD)
|
Screen Frame Size Min
|
30*50CM(OD)
|
|||
|
Substrate Thickness (Printable)
|
25MM
|
Vacuum Bed Movement for Registration
|
+/- 10MM
|
|||
|
Max Printing SPeed
|
1000pc/hour
|
Compressed Air
|
5-6MPA
|
|||
|
Power Supply
|
3phase 380V
|
Power Consumption
|
2.3KW
|
|||
|
Dimensions (L*W*H)
|
1430*1050*1580MM
|
Weight
|
510KG
|
|||
|
Model
|
Name
|
Printing Area
|
Platform Size
|
Unit
|
|
TX-2030
|
Table Flat Screen Printer
|
200*300
|
220*320
|
set
|
|
TX-2030
|
Vertical Flat No inspiratory Screen Printer
|
150*250
|
200*300
|
set
|
|
TX-3040
|
Vertical Flat No inspiratory Screen Printer
|
250*350
|
250*350
|
set
|
|
TX-3040S
|
Vertical Flat inspiratory Screen Printer
|
250*350
|
300*400
|
set
|
|
TX-2040
|
Vertical Pneumatic Flat Screen Printer
|
200*400
|
300*500
|
set
|
|
TX-3050
|
Vertical Pneumatic Flat Screen Printer
|
300*500
|
400*600
|
set
|
|
TX-4060
|
Vertical Pneumatic Flat Screen Printer
|
400*600
|
500*700
|
set
|
|
TX-4060
|
Vertical Electric Flat Screen Printer
|
400*600
|
500*700
|
set
|
|
TX-4080
|
Vertical Electric Flat Screen Printer
|
400*800
|
500*900
|
set
|
|
TX-40100
|
Vertical Electric Flat Screen Printer
|
400*1000
|
500*1100
|
set
|
|
TX-5080
|
Vertical Electric Flat Screen Printer
|
500*800
|
600*900
|
set
|
|
TX-50100
|
Vertical Electric Flat Screen Printer
|
500*1000
|
600*1100
|
set
|
|
TX-60100
|
Vertical Electric Flat Screen Printer
|
600*1000
|
700*1100
|
set
|
|
TX-60120
|
Vertical Electric Flat Screen Printer
|
600*1200
|
700*1300
|
set
|
|
TX-60140
|
Vertical Electric Flat Screen Printer
|
600*1400
|
700*1500
|
set
|
|
TX-70100
|
Vertical Electric Flat Screen Printer
|
700*1000
|
800*1200
|
set
|
|
TX-70140
|
Vertical Electric Flat Screen Printer
|
700*1400
|
800*1500
|
set
|
|
TX-70160
|
Vertical Electric Flat Screen Printer
|
700*1600
|
800*1700
|
set
|
|
TX-80120
|
Vertical Electric Flat Screen Printer
|
800*1200
|
900*1300
|
set
|
|
TX-80140
|
Vertical Electric Flat Screen Printer
|
800*1400
|
900*1500
|
set
|
|
TX-80160
|
Vertical Electric Flat Screen Printer
|
800*1600
|
900*1800
|
set
|
|
TX-80180
|
Vertical Electric Flat Screen Printer
|
800*1800
|
900*2000
|
set
|
|
TX-80220
|
Vertical Electric Flat Screen Printer
|
800*2200
|
900*2400
|
set
|
|
TX-80260
|
Vertical Electric Flat Screen Printer
|
800*2600
|
900*2800
|
set
|
|
TX-90140
|
Vertical Electric Flat Screen Printer
|
800*1400
|
900*1500
|
set
|
|
TX-90180
|
Vertical Electric Flat Screen Printer
|
900*1800
|
1000*2000
|
set
|
Machine Details
|
Precision Guide Rail
|
Squeegee / flood barclamping
|
High Quality AC Geared Motor
|
High Quality Electrical Components
|
|
Imported timing belt
|
Compact Powerful Vacuum Blower
|
VFD (Variable Frequency Drive)
|
Sturdy, light weight honey comb vacuum bed
|
Printing Sample
|
Door Mat Printing
|
Door Mat Printing
|
Door Mat Printing
|
Door Mat Printing
|
Packing&Delivery
★ Service support
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy one year of free equipment warranty and lifetime technical support.
Packing & Delivery
Safety and Fast Transportation
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：35 business days after received the payment.
4. Delivery means: By sea from Shanghai
Our Company
Hangzhou Taoxing Printing Machiner Co.,ltd
is a High-tech lead company, integrated with science, industry and trade. We have strong technical support, advanced production equipment and professional staff who dedicate to products research, development,manufacture, installation, test and maintenance.
Photo of company
Cetefications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* custom contact us
After-Sales Service
* 1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Exhibition
FAQ
Q: Are you a factory or trading company? A: We are a professional manufacturing factory specialize in printing equipment with more than 18 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized? A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
