Quick Details
-
Screw Speed (rpm):
-
100 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDIANRUIHUA
-
Voltage:
-
380/220V 50HZ 3Phase or customized
-
Dimension(L*W*H):
-
5500*2100*5000MM
-
Power (kW):
-
11
-
Weight:
-
2000 KG
-
Kind:
-

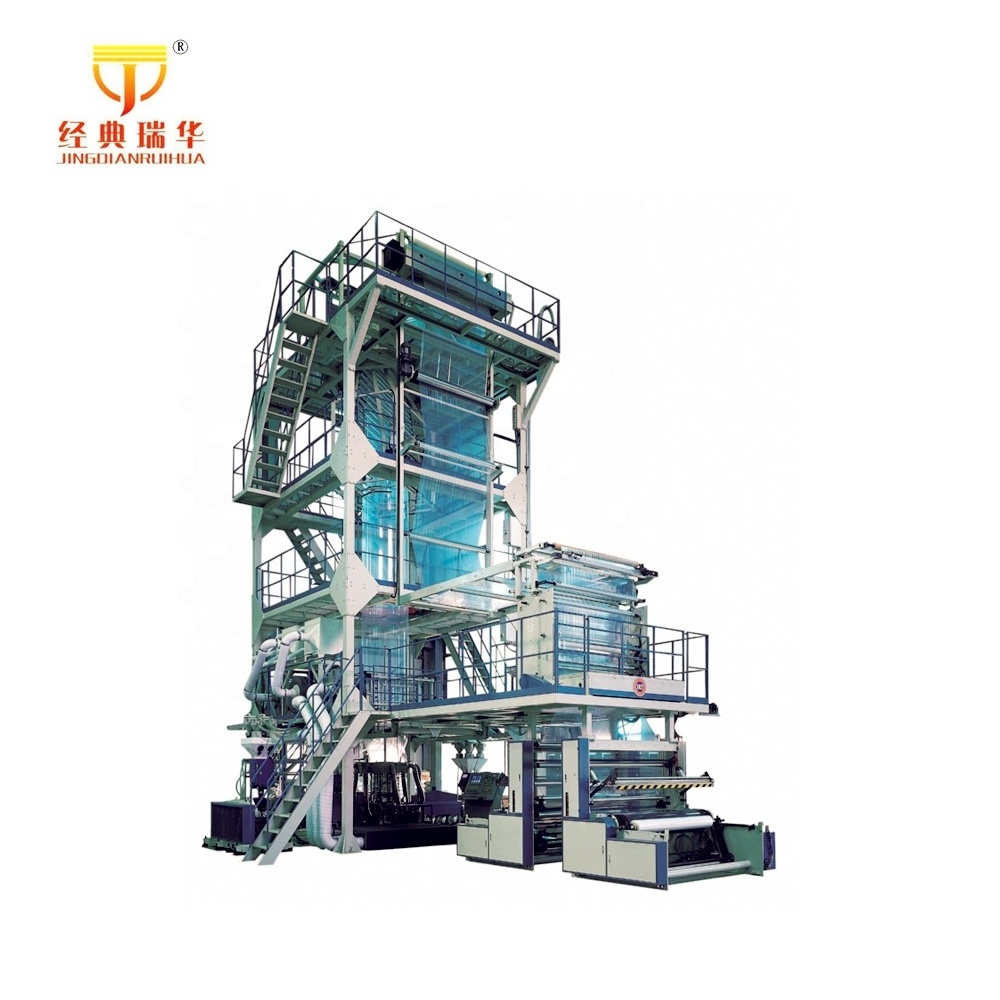

Good Price Biodegradable PLA Film Single Screw Extruder Machine
-
Making Film Width:
-
max. 600/800/1000/1200/1500/2000mm
-
Working Material:
-
Plastic HDPE, LDPE, biodegradable PLA, PBAT materials
-
Air Ring:
-
can be single lips or double lips
-
Winder:
-
Single or double winder
-
EPC web guiding system:
-
optional
-
Making Film thickness:
-
usually 0.01-0.10mm, can be customized
-
Die Head Size:
-
according to your produced film width
-
Main Motor:
-
Controlled by Inverter
-
Thickness Control:
-
optional
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
50/55/60/65/75/90 mm
-
Screw Speed (rpm):
-
100 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDIANRUIHUA
-
Voltage:
-
380/220V 50HZ 3Phase or customized
-
Dimension(L*W*H):
-
5500*2100*5000MM
-
Power (kW):
-
11
-
Weight:
-
2000 KG
-
Kind:
-
Good Price Biodegradable PLA Film Single Screw Extruder Machine
-
Making Film Width:
-
max. 600/800/1000/1200/1500/2000mm
-
Working Material:
-
Plastic HDPE, LDPE, biodegradable PLA, PBAT materials
-
Air Ring:
-
can be single lips or double lips
-
Winder:
-
Single or double winder
-
EPC web guiding system:
-
optional
-
Making Film thickness:
-
usually 0.01-0.10mm, can be customized
-
Die Head Size:
-
according to your produced film width
-
Main Motor:
-
Controlled by Inverter
-
Thickness Control:
-
optional
Machine Details
|
Model
|
SJ-A50
|
SJ-A55
|
SJ-A60
|
SJ-A65
|
SJ-A75
|
SJ-A90
|
|||||
|
Raw Material
|
HDPE,LDPE,LLDPE, biodegradable PLA, PBAT, corn starch
|
HDPE,LDPE,LLDPE
|
HDPE,LDPE,LLDPE
|
HDPE,LDPE,LLDPE
|
|
|
|||||
|
Film width
|
600mm
|
800mm
|
1000mm
|
1200mm
|
1500mm
|
2000mm
|
|||||
|
Film thickness
|
0.01-0.1mm
|
0.01-0.1mm
|
0.01-0.1mm
|
0.01-0.1mm
|
|
|
|||||
|
Max.Output
|
40kg/hr
|
50kg/hr
|
60 kg/hr
|
70 kg/hr
|
100kg/hr
|
160kg/hr
|
|||||
|
Screw diameter
|
50
|
55
|
60
|
65
|
75
|
90
|
|||||
|
Screw L/D
|
30: 1
|
30: 1
|
30: 1
|
30: 1
|
|
|
|||||
|
Screw material
|
38CRMOALA as standard, other screw material can be customized
|
38CRMOALA
|
38CRMOALA
|
38CRMOALA
|
|
|
|||||
|
Main motor
|
11KW
|
15KW
|
18.5KW
|
22KW
|
37KW
|
55KW
|
|||||
|
Air blower
|
1.5KW
|
2.2KW
|
2.2KW
|
2.2KW
|
4KW
|
5.5KW
|
|||||
|
Take-up speed
|
50m/min
|
50m/min
|
50m/min
|
50m/min
|
|
|
|||||
|
Take-up motor
|
1.1KW
|
1.1KW
|
1.5KW
|
1.5KW
|
2.2KW
|
2.2KW
|
|||||
|
Winding speed
|
50m/min
|
50m/min
|
50m/min
|
50m/min
|
|
|
|||||
