Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hitbot
-
Weight:
-
19 kg
-
Product name:
-

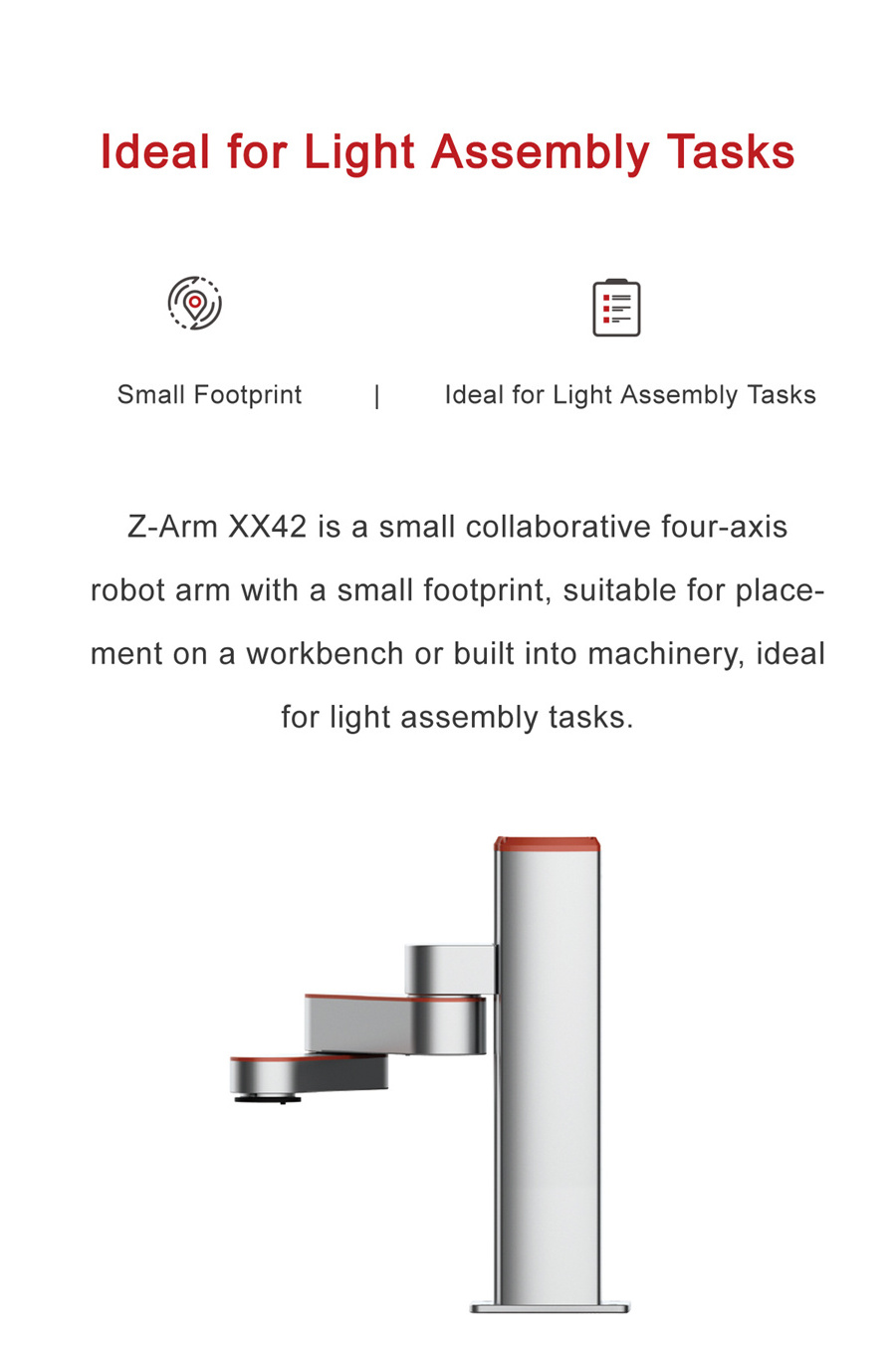

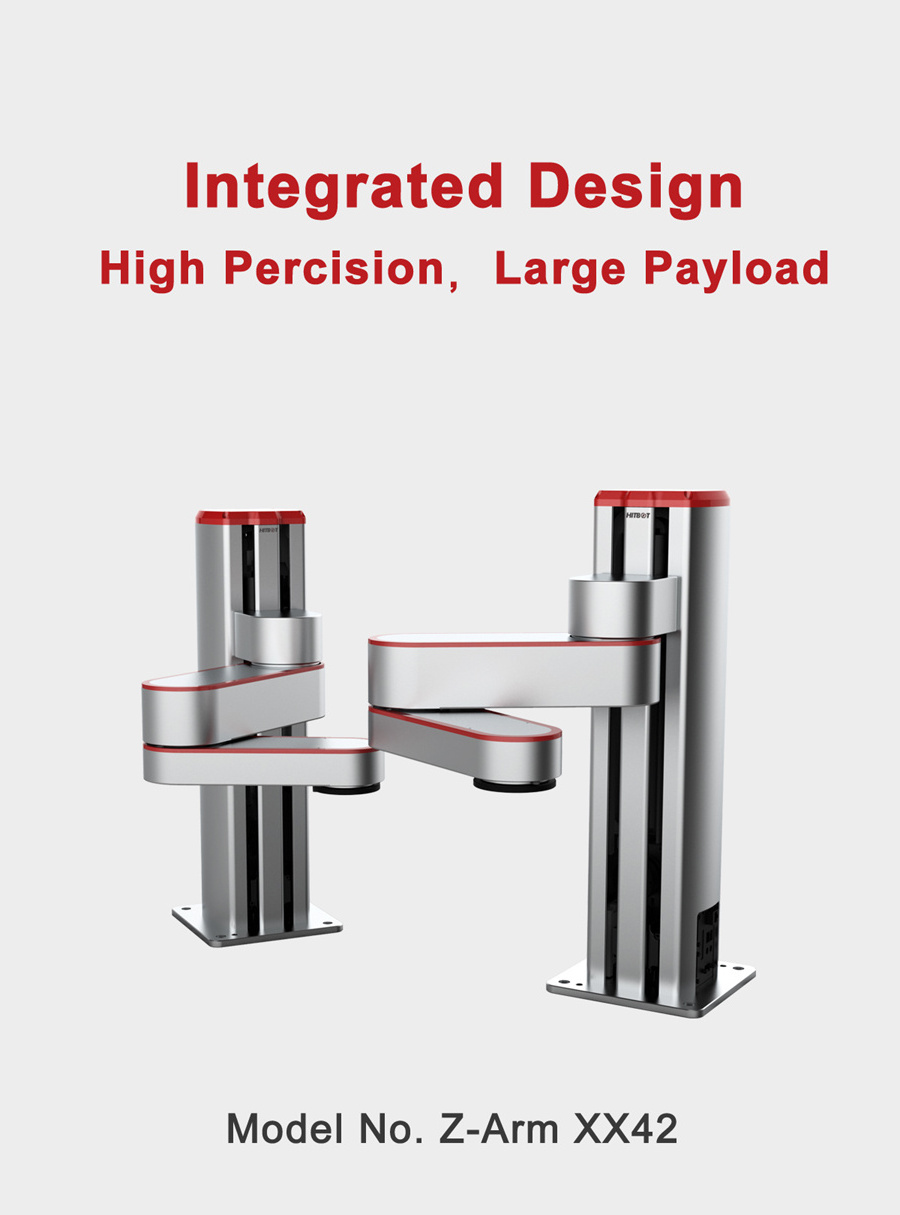

HITBOT SCARA Robot Arm
-
Programming software:
-
HitbotStudio
-
Number of axis:
-
4
-
Maximum payload:
-
3KG
-
Maximum reach:
-
420mm
-
Connectivity:
-
Wi-Fi/Ethernet
-
Collision detection:
-
Support
-
Repeatability:
-
±0.03mm
-
Z-axis reach:
-
240mm customizable
-
Certification:
-
CE and FCC
Quick Details
-
Warranty:
-
1 Year
-
Vertical Travel(mm):
-
240mm
-
Horizonal Travel(mm):
-
420mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hitbot
-
Weight:
-
19 kg
-
Product name:
-
HITBOT SCARA Robot Arm
-
Programming software:
-
HitbotStudio
-
Number of axis:
-
4
-
Maximum payload:
-
3KG
-
Maximum reach:
-
420mm
-
Connectivity:
-
Wi-Fi/Ethernet
-
Collision detection:
-
Support
-
Repeatability:
-
±0.03mm
-
Z-axis reach:
-
240mm customizable
-
Certification:
-
CE and FCC
Product Description
Specification
Item
|
Value
|
Item Model
|
Z-Arm 2442
|
Maximum payload
|
3KG
|
Z-axis reach
|
240mm
|
Maximum reach
|
420mm, Customizable
|
Weight
|
19KG
|
Dimension(L*W*H)
|
200mm*200mm*598mm
|
Machine Base Size: Footprint
|
200*200*10mm
|
Power
|
500W
|
Repeatability
|
±0.03mm
|
Programming software
|
HitbotStudio
|
Communication
|
Ethernet
|

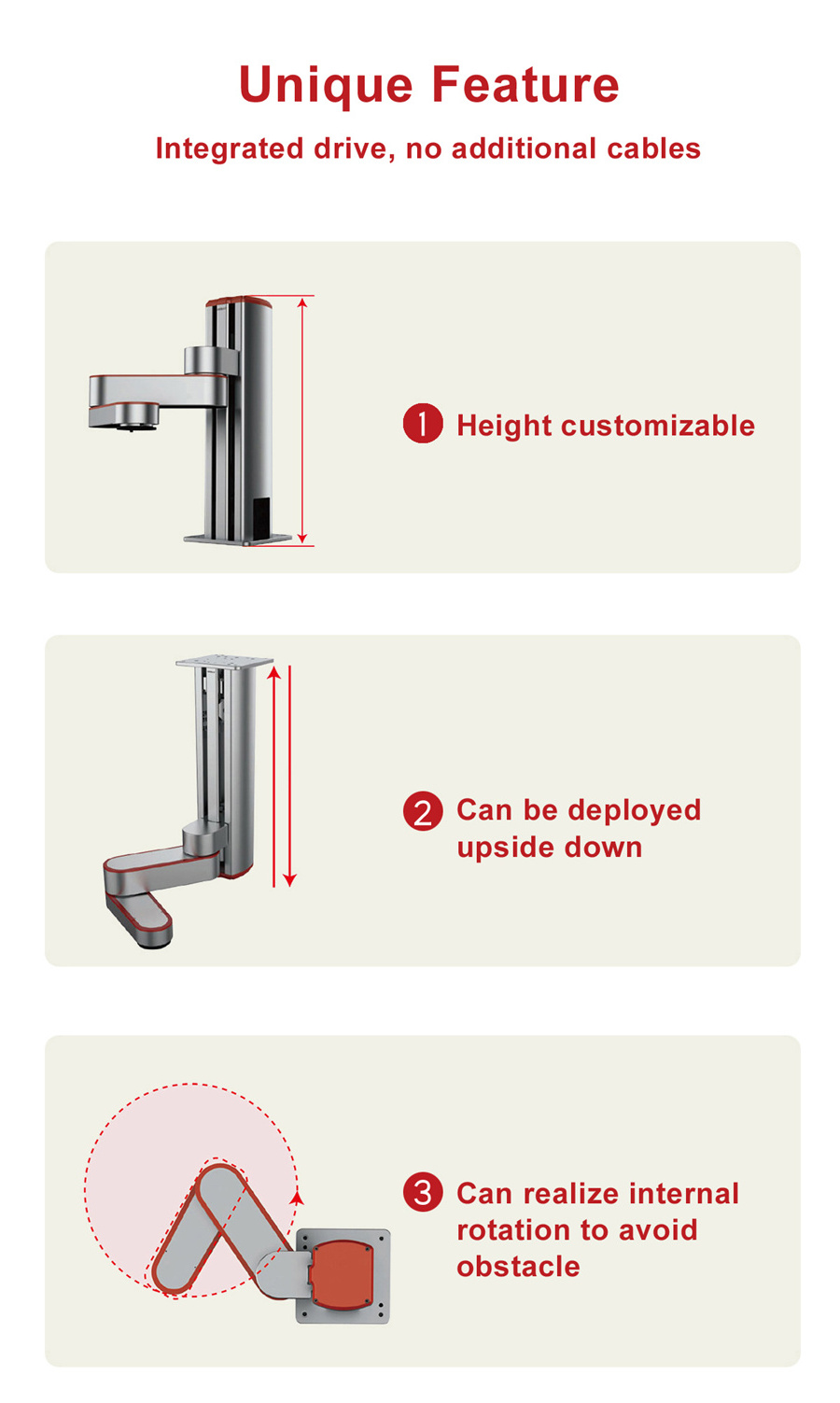

Customizable Z-axis height
|
0.1-0.5 meter
|
I/O Ports: Digital Input (Isolated)
|
9+3
|
I/O Ports: Digital Output (Isolated)
|
9+3
|
Voltage
|
220V/110V 50-60Hz DC24V/Power 500W
|
Linear Velocity
|
1225.45 mm/s (payload 1.5kg); 1023.79 mm/s (payload 2kg)
|
Supportable HITBOT Grippers
|
Z-EFG-8S/ Z-EFG-12/ Z-EFG-20/ Z-EFG-20S/ Z-EFG-30/Z-EFG-50
|
Working Environment
|
Temperature: 0-45℃, Humidity: RH20-80 (No Frost)
|
