Quick Details
-
Model Number:
-
D16-3.0
-
Weight:
-
25 KG
-
inner diameter:
-
10mm
-
outside diameter:
-
16mm
-
wall thickness:
-
3mm
-
weight:
-
115g/m
-
color:
-
black
Quick Details
-
Core Components:
-
aeration tube
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
jiangda
-
Model Number:
-
D16-3.0
-
Weight:
-
25 KG
-
inner diameter:
-
10mm
-
outside diameter:
-
16mm
-
wall thickness:
-
3mm
-
weight:
-
115g/m
-
color:
-
black

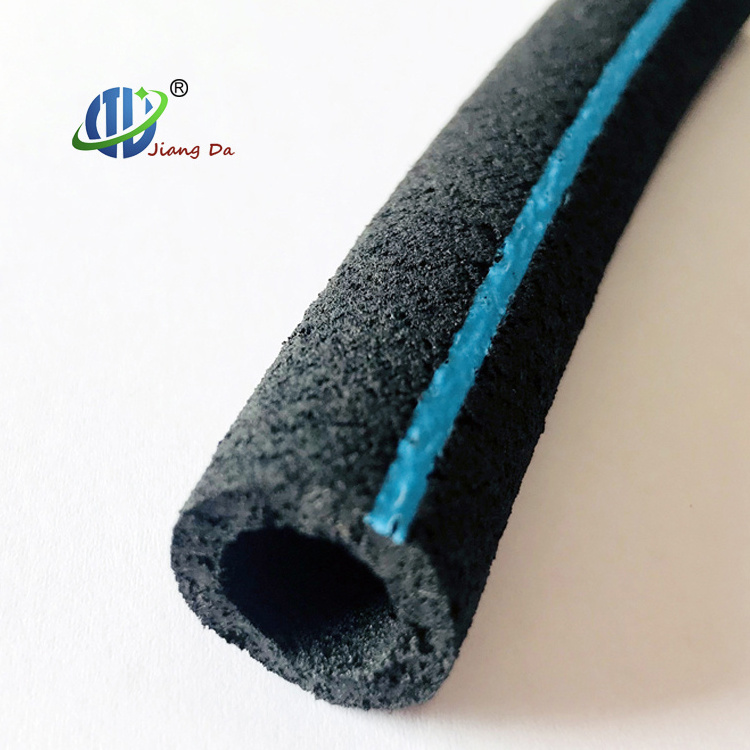

fish farming equipment/aero tube/aerator tube
HOW IT WORKS :
The micropore rubber bubble diffuser aeration hose for aquaculture is specially designed to create fine bubbles that rise slowly in the water. These fine bubbles have higher surface area which remain in the water for longer periods, enabling more efficient oxygen transfer into the water. All you need is an efficient clean air blower.
What benefits you can get from Aeration Hose ?
1.Reduce energy cost by up to 75%
2.Lack of moving parts provides a very low maintenance alternative
3.Maintains higher dissolved oxygen(DO) levels
4. Allows for higher stocking densities
5.Allows for higher feeding rates
6. Allows for more frequent feedings
7. Faster growth and reduced FCR
8.Low start up cost
9.Low replacement cost
10. Reduce algal blooms
|
Model |
D16-3.0 |
|
Outer diameter(mm) |
16 |
|
Inner diameter(mm) |
10 |
|
Wall thickness(mm) |
3 .0+-0.5 |
|
Meters heavy(g/m) |
115 |
|
Packing quantity(meters/roll) |
200 |
|
Packing dimension |
6 2 *6 2 *3 2 cm |
|
Packing Weight(kg) |
23 |
|
The air flow |
0.1-0.4 m3/h.m |
|
Average micropore diameter |
φ0.03 ~ φ0.06mm |
|
Micropore density |
1000 ~ 1600/m |
|
Bubble diameter |
0.5
~
2mm(fresh water) ;
|
|
Effective aeration rate |
0.00 2 ~0.0 04 m3/min.m |
|
Effective working area |
1~8 m2/m |
|
Applicable water depth |
0-5 meters |
|
Aeration tube |
Item |
OD/mm |
WALL/mm |
ID/mm |
|
|
D1 0-1.5 |
10 |
1.5 |
7 |
|
D14 -2.5 |
14 |
2.5 |
9 |
|
|
D16 -3.0 |
16 |
3 .0 |
10 |
|
|
D18 -3.5 |
18 |
3.5 |
11 |
|
|
D20 -3.5 |
20 |
3.5 |
13 |
|
|
D25 -4.0 |
25 |
4 |
17 |
|
|
D25 -6.0 |
25 |
6 |
13 |
|
|
D25 -7.0 |
25 |
7 |
11 |
|
|
D28 -4.0 |
28 |
4 |
20 |
|
|
Note: size can be customized |
||||
