Quick Details
-
Dimension(L*W*H):
-
According to different models
-
Warranty:
-
1 Year, one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Metal Chips Coke Lignite Coal Briquette Press Machine
-
Machine type:
-
Briquette equipment
-
Processed materials:
-
Powdery materials, such as nonferrous metal and mineral powders.
-
Spare parts supply:
-
Paid
-
Operation training:
-
Provide
-
Installation and adjustment:
-
Provide
-
Color:
-
Customerized
-
Price:
-
Negotiable and reasonable
-
Certification:
-
ISO, BV, CE
Quick Details
-
Production Capacity:
-
3-40 tph
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZONEDING
-
Dimension(L*W*H):
-
According to different models
-
Warranty:
-
1 Year, one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Metal Chips Coke Lignite Coal Briquette Press Machine
-
Machine type:
-
Briquette equipment
-
Processed materials:
-
Powdery materials, such as nonferrous metal and mineral powders.
-
Spare parts supply:
-
Paid
-
Operation training:
-
Provide
-
Installation and adjustment:
-
Provide
-
Color:
-
Customerized
-
Price:
-
Negotiable and reasonable
-
Certification:
-
ISO, BV, CE

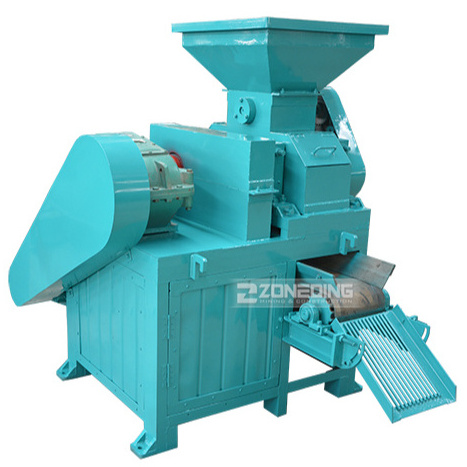

Dry powder briquette machine briquette equipment briquette manufacturing plant
Briquette Machine Production Line can make various powdery materials with forced supercharging and precision machining with prepressing spiral to ball billet with big density, and the ball billet can be widely used in many industries such as metallurgy, chemistry, coal and refractory.
Brief Introduction of Charcoal Powder Briquetting Making Machine for Sale:
Briquette Machine can be used for pressing various materials such as gypsum, coal powder, mineral powder, oxide skin, steel slag, iron fine powder and aluminum ash. Briquette Machine production line can make various powdery materials with forced supercharging and precision machining with prepressing spiral to ball billet with big density and the ball billet can be widely used in many industries such as metallurgy, chemistry, coal and refractory. According to the customers’ requirement, Zoneding Machine has researched and manufactured a new generation of Briquette Machine that can press the materials to various shapes such as square and oval, and this new ball press machine can also be called high pressure briquette machine. At the same time, our company can also provide the whole set of equipment for Briquette Machine production line.
Working Principle of Charcoal Powder Briquetting Making Machine for Sale :
When Briquette Machine works, the electromagnetic variable-speed motor will provide power for the electric motor and through belt pulley and cylindrical gear reducer, the power will be transmitted to driving shaft through the rod pin coupling. The driving shaft and driven shaft are ensured to operate synchronously through open gear. Behind the driven bearing pedestal, there is hydraulic equipment. The spiral feeder machine is driven by electromagnetic variable-speed motor through belt pulley and worm reducer to force the materials to be pressed into the main feeding mouth. Due to the constant torque of the electromagnetic variable-speed motor, when the pressing amount of the spiral feeder machine is the same with the needed material amount by the main engine, stable material supplying pressure can be ensured to stabilize the quality of the pellet. If the material supplying amount is high, the electricity of the feeder machine will be overload; if the material supplying amount is low, the materials will not be able to be pressed to pellet. For this reason, skillful operation technique is an important condition to ensure the normal work of ball press machine.
Performance Features of Charcoal Powder Briquetting Making Machine for Sale :
Briquette Machine is equipped with self-protective device. The hydraulic protective device can inject the high pressure oil into the hydraulic cylinder with the hydraulic pump and make the piston produce axial displacement. The font joint of the piston rod is pressed onto the bearing pedestal to satisfy the production pressure requirement. When there are too many materials between the two rollers or metal block goes into the rollers, the hydraulic cylinder piston rod will pressed, and the hydraulic pump will stop, and the energy accumulator will have buffer action on the pressure change. The overflow valve will start for oil return and the piston rod will have displacement to increase the gap between the two rollers, so that the hard materials will go through the rollers, and then the system pressure will resume to normal, this design can protect the roller from being damaged. According to the requirement for the press density, this machine can be adjusted in pressure, so that the production process is mobile and flexible.
Technical Parameters of Charcoal Powder Briquetting Making Machine for Sale :
| Model | Roller size(mm) | Speed(r/min) | Motor power(kw) | Capacity(t/h) | Overall dimenson(LxWxH)(m) |
| ZD290 | 290x200 | 12-15 | 5.5-7.5 | 1-3 | 1.6x1.2x1.4 |
| ZD360 | 360x250 | 12-15 | 7.5-11 | 3-5 | 2.1x1.3x1.76 |
| ZD430 | 430x250 | 15-18.5 | 15-18.5 | 4-7 | 2.3x1.53x1.9 |
| ZD500 | 500x300 | 12-15 | 22-30 | 5-10 | 2.6x1.75x2.1 |
| ZD650 | 650x350 | 10-13 | 37-55 | 8-13 | 3.42x2x2.2 |
| ZD750 | 750x380 | 10-13 | 45-75 | 12-17 | 3.7x2.55x2.6 |
| ZD850 | 850x460 | 10-13 | 75-110 | 15-20 | 3.9x2.6x2.7 |
| ZD1000 | 1000x530 | 10-13 | 110-132 | 20-30 | 4x2.8x2.8 |
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
