Quick Details
-
Rated torque(N.m):
-
90
-
Peak torque(N.m):
-
223
-
Cooling:
-
Water Cooling
-
Weight:
-
37 KGS
-
Rated voltage:
-
628vdc
-
Rated speed(rpm):
-
3183
-
Peak speed (rpm):
-
9000
-
Peak Current(Arms):
-
285
Quick Details
-
Voltage:
-
290v
-
Rated power:
-
30kw
-
Peak power:
-
60kw
-
Rated torque(N.m):
-
90
-
Peak torque(N.m):
-
223
-
Cooling:
-
Water Cooling
-
Weight:
-
37 KGS
-
Rated voltage:
-
628vdc
-
Rated speed(rpm):
-
3183
-
Peak speed (rpm):
-
9000
-
Peak Current(Arms):
-
285
Product Parameters
|
Product model
|
TZ185XS30
|
|
|
||
|
Rated voltage (VDC)
|
628
|
cooling method
|
Water cooling
|
||
|
Rated power (kW)
|
30
|
Back EMF (Vpeak)
|
515@9000rpm
|
||
|
Rated torque (Nm)
|
90
|
Peak power (kW)
|
60
|
||
|
Rated speed (rpm)
|
3183
|
Peak torque (Nm)
|
223
|
||
|
Insulation class
|
H
|
Maximum speed (rpm)
|
9000
|
||
|
Dimensions (mm)
|
φ220*L230
|
Protection level
|
IP67
|
||
|
Weight (kg)
|
37kg
|
Peak current (Arms)
|
260
|
||
Application
Related Products

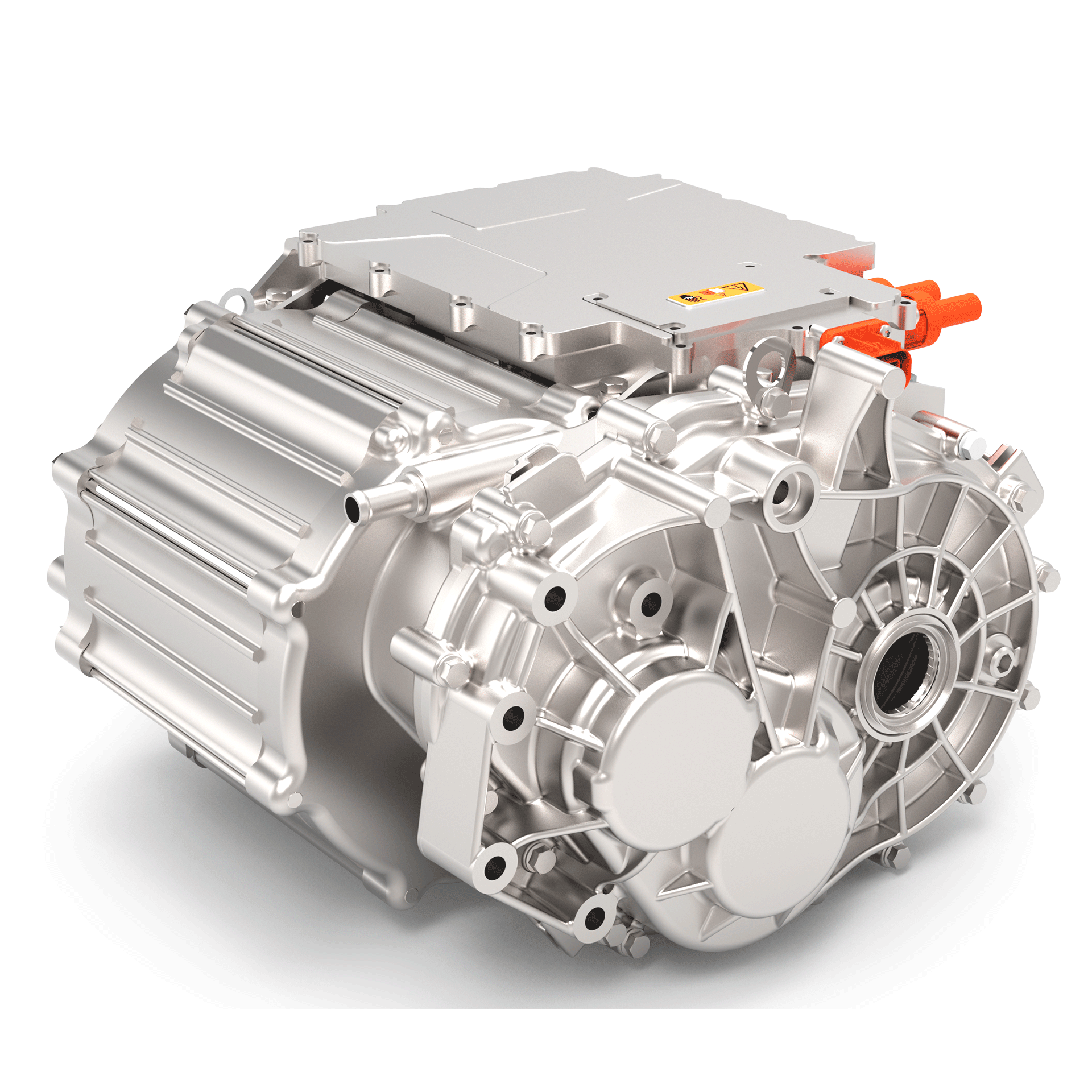

Peak 125KW 3 in 1 Assembly
High voltage liquid cooling
Voltage：350V
Rated power: 60kw
Peak power：125kw
Peak wheel torque：2550Nm
Peak power：125kw
Peak wheel torque：2550Nm
Peak wheel speed：1317rpm
Gearbox ratio: 9.11
Maximum wheel speed (rpm): 1317
Maximum torque of wheel (Nm): 2550
Peak 70KW 6 in 1 Assembly
Motor/Controller/Gearbox/OBC/DCDC/PDU
Rated voltage: 309V
Full power working voltage: 270~420V
Peak power: 70KW
Peak torque: 160Nm
Peak speed: 12000rpm
Rated power: 35kw
Rated torque: 75Nm
Peak current: 307Arms
70KW 3 in 1
Rated Power: 70kW
Peak Power: ≥150kW@350Vdc; ≥170kW@400Vdc
Wheel Speed: ~1410rpm
Wheel Torque: 3500/3900Nm
Ratio: 11.58/13
Weight: 85kg
Efficiency: 93%
NEDC Average Efficiency: 87.5%
Peak Power: ≥150kW@350Vdc; ≥170kW@400Vdc
Wheel Speed: ~1410rpm
Wheel Torque: 3500/3900Nm
Ratio: 11.58/13
Weight: 85kg
Efficiency: 93%
NEDC Average Efficiency: 87.5%
160KW 3 in 1
Rated voltage: 385V
Working voltage range: 210~500V
Motor continuous power: 70kw
Motor peak power: 160kw
Motor peak torque: 280Nm
Speed ratio of reducer: 10.498
Assembly peak torque/Nm: 2850
Maximum working speed /r/mim: 1524
Working voltage range: 210~500V
Motor continuous power: 70kw
Motor peak power: 160kw
Motor peak torque: 280Nm
Speed ratio of reducer: 10.498
Assembly peak torque/Nm: 2850
Maximum working speed /r/mim: 1524
