MiMo antenna 2*9dBi 1710-2690MHZ 15meters Low loss cable 4G LTE antenna

MiMo antenna 2*9dBi 1710-2690MHZ 15meters Low loss cable 4G LTE antenna

FOB Reference Price: Get Latest Price

≥1 Pieces

US $9.99

≥100 Pieces

US $9.49

≥500 Pieces

US $8.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Gain::: 9dBi*2

VSWR::: <1.5

Radiation::: Omnidirectional

Operating temperature:: -20°C~+65°C

Cable type::: 15meters SYV50-3

Frequency range::: 1710-2690MHZ

Size::: 165x155x45mm

Polarization::: Vertical Polarization

Radome material::: ABS,White,RAL9003

Connector type::: SMA male

Quick Details

Type:: 2.4GHz & 5GHz Antenna

Brand Name:: TJKL

Model Number:: WZLXXSMAJ032

Place of Origin:: Guangdong, China

Gain::: 9dBi*2

VSWR::: <1.5

Radiation::: Omnidirectional

Operating temperature:: -20°C~+65°C

Cable type::: 15meters SYV50-3

Frequency range::: 1710-2690MHZ

Size::: 165x155x45mm

Polarization::: Vertical Polarization

Radome material::: ABS,White,RAL9003

Connector type::: SMA male

Products Description

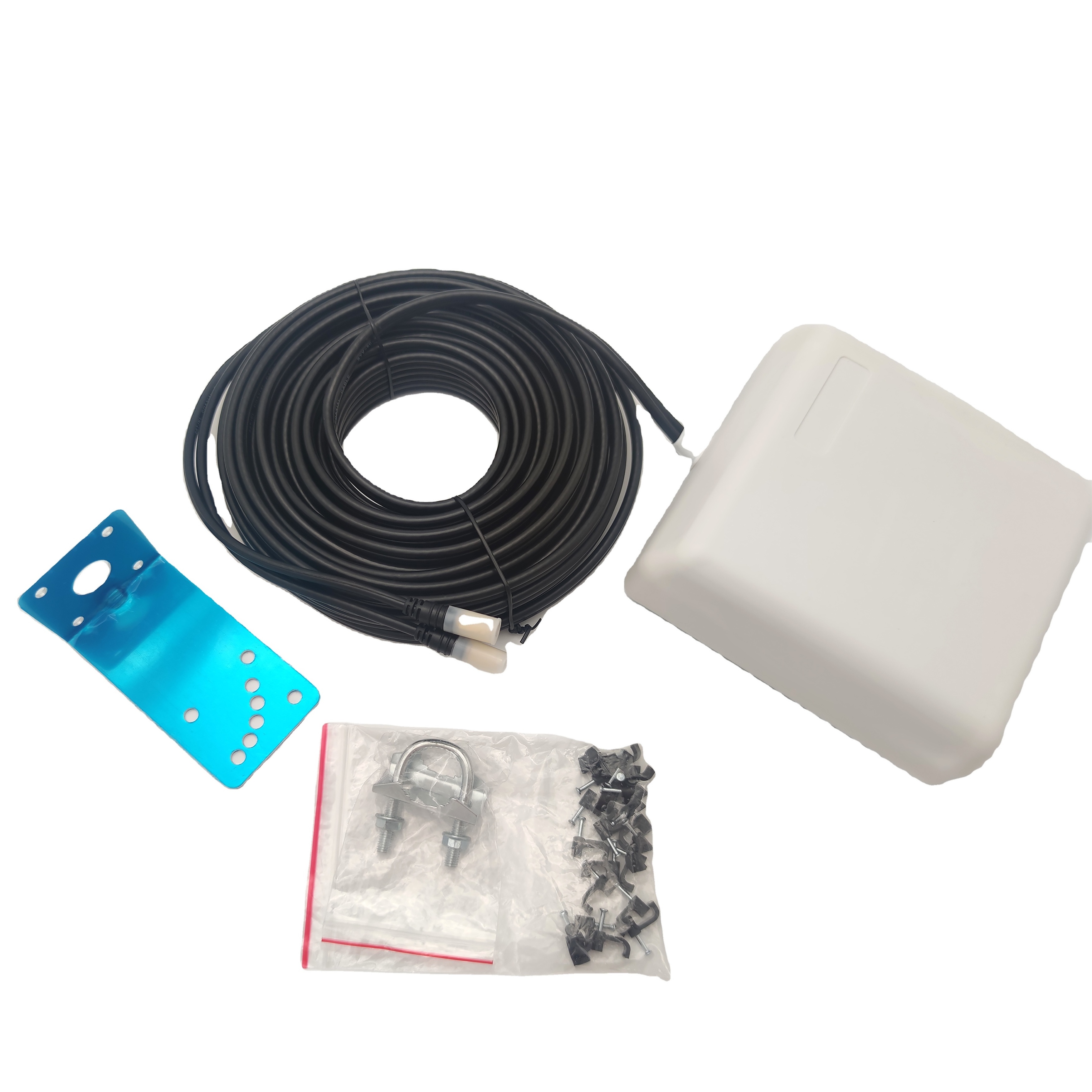

High gain 4G LTE 1710-2690MHZ 9dbi Outdoor directional mimo panel antenna with 15meters cable
Frequency	1710-2700Mhz
Gain	2*9dBi
Polarization	45 degree
Beam Width	Horizon: 65+/-15 degree; Vertical: 60 degree
Front to back Ratio	20dB
VSWR	<1.5
Isolation	>25dB
Max Input Power	50 Watts
Impedance	50Ω
Dimension	165mm155mm50mm
Net Weight	1.43KG
Radome material	Diameter 35-50mm
Connector type and Location	SMAmale *2
Operational Temperature	-55℃-60℃
Operational Humidity	<95%

Our sample room

Packaging&Shipping

bubble PP bag or EPE/inner box/master carton(safe export packaging) or others

Our Advantages

Shenzhen tianjukeli communication cable co., LTD. Established in 2012, Is mainly engaged in OEM and ODM antennas And high-end rfcoaxial cable Production, processing and sales。 The main products are:antennas，LTE, WIMAX, Wi-Fi, 3G, DECT, WLAN, CDMA,GPRS,CMMB,DMB, GSM and DVB-T types etc.(our products arrange cover the frequency from 88 MHz to 5.85 GHz）RF coaxial cablesinclude: (LMR low loss cable, RG American military standard series cable, d-fb and c-fb material foam series, SYV and SYWVnational standard series, semi-rigid and semi flexible series, RF cable assembly cable, high temperature cable, military cable,optical cable, cable connector, etc.

Product Compliance: Regulatory Compliance/Certifications: RoHS and REACH Compliant by Exemption

We have a 5,000 square meter factory, 60 employees and a complete supply chain. In order to ensure the quality of our products, we have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and development every year. To prove to our customers that we have stable technical support and continuous innovation.

We have a strong sales team and are willing to help you. We will help you from product selection to shipping.

Product packaging and transportation

Product packaging and transportation

Packing
We have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort
your results by time or cost to find the most cost-effective shipping service.

Certifications and Licenses

FAQ

Q: What type of antenna your have ?
A: We have all kinds of frequencies and gains according to different types of antenna. Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi,
12dBi, 16dBi, 25dBi, ...Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,RFID, WIFI, GPS, GSM, 3G, 4G, ...Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.
Q:Can the connector make with another type connector?
A: Of course, we can , SMA serial ,MCX, Fakra, TS9, CRC9 and so on.
Q: We want to have samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, we would charge you
Q:How is the cost?
A: Usually we quote the EXW price , and use your courier account, such as DHL, of course ,we can ship to you but charge your shipping cost.
Our Service
1) Manufacturer we are.
2) Strong and steady supplying ability
3) Delivery time: 5-7 working days after payment confirmed
4) Do as your requirements on package, brand or other designs
5) Competitive price
6) We would try our best to support you
