-High precision CNC flat bed lathe with hard rail.
-The bed ways are induction hardened, with hardness around HRC50.
-Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
-Good quality grinding grade ball screw ensure positioning accuracy is more stable.
-Siemens,Fanus, Syntec, Fagor controller as optional.
-Monoblock cast iron base ensure high rigidity of the whole machine.
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
4000 r.p.m
-
Spindle Bore(mm):
-
62
-
Width of bed (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
240 mm
-
Travel (Z Axis)(mm):
-
500 mm
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
2800*1800*1800mm
-
Brand Name:
-
CTMACH
-
Model Number:
-
CK6140
-
Voltage:
-
220V/380V
-
Weight (KG):
-
2800
-
Marketing Type:
-
New Product 2023
Quick Details
-
Type:
-
TURNING CENTER
-
Max. Length of Workpiece (mm):
-
500
-
Year:
-
2023
-
Max. Spindle Speed (r.p.m):
-
4000 r.p.m
-
Spindle Bore(mm):
-
62
-
Width of bed (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
240 mm
-
Travel (Z Axis)(mm):
-
500 mm
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
2800*1800*1800mm
-
Brand Name:
-
CTMACH
-
Model Number:
-
CK6140
-
Voltage:
-
220V/380V
-
Weight (KG):
-
2800
-
Marketing Type:
-
New Product 2023

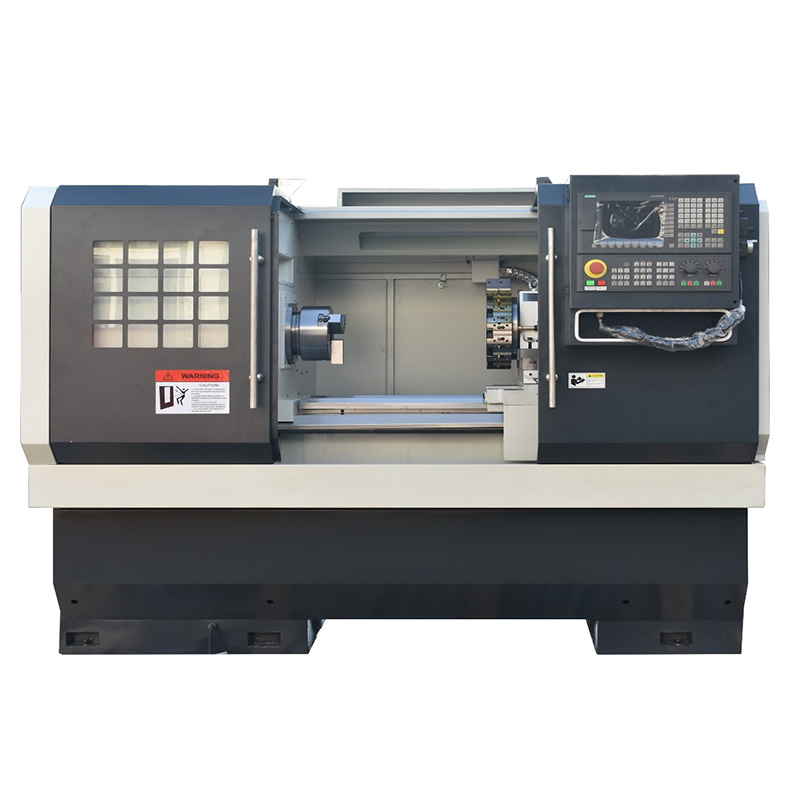

Flat bed CNC lathe / Heavy duty model suitable for large workpiece
Features：
SPECIFICATION
|
MODEL
|
CK6140
|
|
|
|
||||
|
Distance between centers
|
750mm
|
1000mm
|
1500mm
|
2000mm
|
||||
|
Max. swing over bed
|
Φ400mm
|
|
|
|
||||
|
Max. swing over cross slide
|
Φ220mm
|
|
|
|
||||
|
Width of bed
|
330mm
|
|
|
|
||||
|
Spindle
|
|
|
|
|
||||
|
Max. Spindle speed
|
150-2500rpm
|
|
|
|
||||
|
Spindle bore
|
Φ82mm
|
|
|
|
||||
|
Spindle nose
|
A2-6
|
|
|
|
||||
|
Taper of spindle bore
|
MT6
|
|
|
|
||||
|
Chuck diameter
|
Φ250mm
|
|
|
|
||||
|
Stroke & Feeding Speed
|
|
|
|
|
||||
|
X axis travel
|
250mm
|
|
|
|
||||
|
Z axis travel
|
750 mm
|
1000mm
|
1500mm
|
2000mm
|
||||
|
X/Z axis Rapid traverse
|
6/ 8 m/min
|
|
|
|
||||
|
Turret
|
|
|
|
|
||||
|
Type
|
Electrical turret
|
|
|
|
||||
|
Tool station number
|
4
|
|
|
|
||||
|
Tool holder
|
25x25mm
|
|
|
|
||||
|
Tailstock Sleeve
|
|
|
|
|
||||
|
External diameter
|
Φ55 mm
|
|
|
|
||||
|
Max. travel
|
120 mm
|
|
|
|
||||
|
Taper of bore
|
MT4
|
|
|
|
||||
|
Motor
|
|
|
|
|
||||
|
Spindle motor power
|
7.5 KW
|
|
|
|
||||
|
Coolant pump power
|
120W
|
|
|
|
||||
|
Machine Dimensions
|
|
|
|
|
||||
|
Overall dimension(L×W×H)
|
1700 / 2050 / 2520 / 3050 x1400x1680mm
|
|
|
|
||||
|
Packing size(L×W×H)
|
1850 / 2250 / 2640 / 3200 x1530x2020mm
|
|
|
|
||||
|
Net/Gross weight
|
1400/1600kg
|
1600/1800kg
|
1800/2000kg
|
2200/2400kg
|
||||
FLAT BED CNC LATHE MACHINE
-EFFORT lathe machinery factory provide quality flat bed CNC lathe machine
and reliable services with accumulated technology.
-EFFORT Flat bed CNC lathe machine with high quality bearings, high preci sion C3 grade ball screw and high strength cast iron.
-We make a great effort to get customers satisfaction and warmly seek the opportunity to cooperate with you.
-EFFORT Flat bed CNC lathe machine with high quality bearings, high preci sion C3 grade ball screw and high strength cast iron.
-We make a great effort to get customers satisfaction and warmly seek the opportunity to cooperate with you.
Standard Accessories
* GSK 928TDL controller
* GSK feed motor and driver
* Stepless Spindle
* Variable frequency spindle motor
* 3-jaw 250mm manual chuck
* Manual tailstock
* 4-station electric turret
* One-piece cast
* Automatic lubrication system
* Automatic cooling system
* Leveling block set
* GSK feed motor and driver
* Stepless Spindle
* Variable frequency spindle motor
* 3-jaw 250mm manual chuck
* Manual tailstock
* 4-station electric turret
* One-piece cast
* Automatic lubrication system
* Automatic cooling system
* Leveling block set
GSK 928TDL Controller
Hydraulic 3-jaw chuck
Manual tailstock
Electrical 4 station turret
Variable frequency spindle motor
Optional Accessories
* Siemens, Fanuc, Syntec, Fagor Controller
* Servo spindle motor
* Cartridge type spindle
* Hydraulic chuck & tailstock
* Pneumatic chuck & tailstock
* 6 or 8 station electric turret
* Gang tool
* Living tool
* Automatic bar-feeder
* 3-gear spindle speed
* Servo spindle motor
* Cartridge type spindle
* Hydraulic chuck & tailstock
* Pneumatic chuck & tailstock
* 6 or 8 station electric turret
* Gang tool
* Living tool
* Automatic bar-feeder
* 3-gear spindle speed
Siemens, Fanuc, SYNTEC, Fagor Controller etc
6 or 8 station electric turret
Servo spindle motor
Conveyor
Living tool
Gang tool
Cartridge type spindle
Hydraulic tailstock
Spring collet
Automatic bar-feeder
