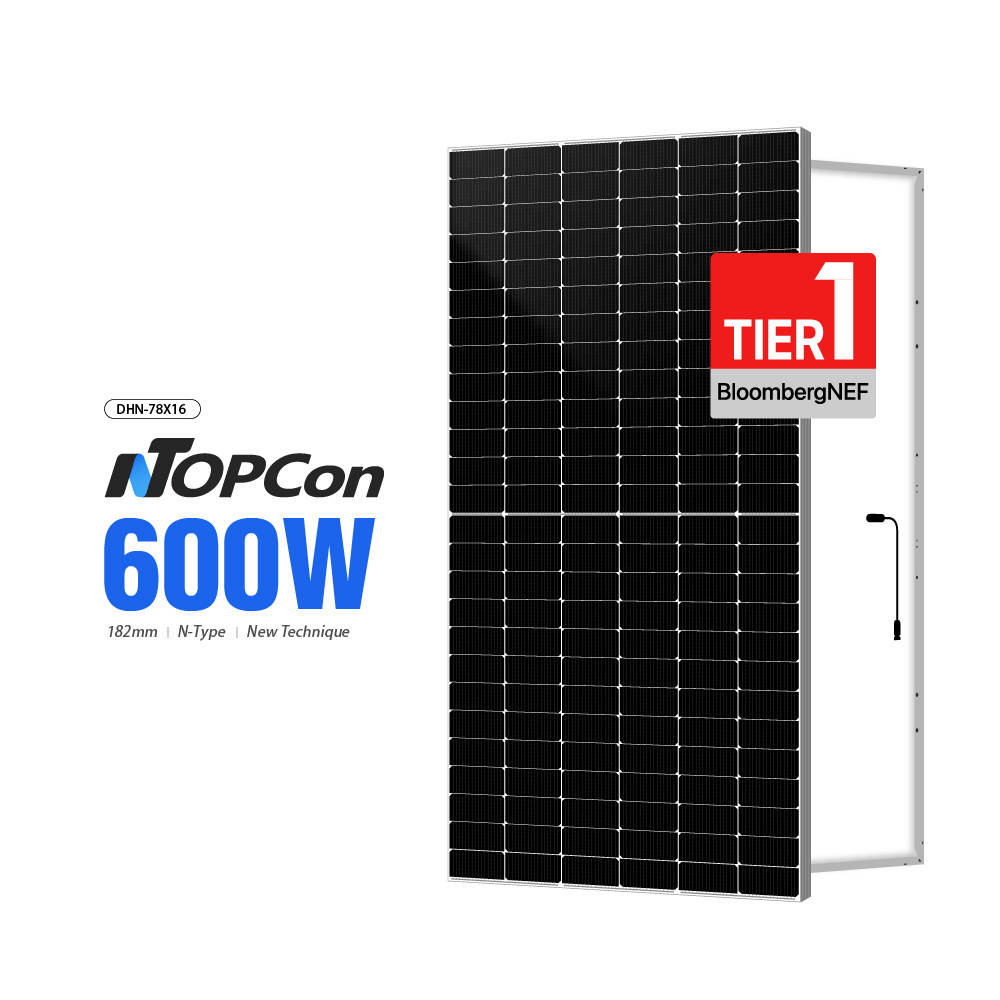

Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa

Fast Delivery TOPCon Mono 182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa

FOB Reference Price: Get Latest Price
≥1000 Pieces
US $0.12
≥100000 Pieces
US $0.11
≥500000 Pieces
US $0.09
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
30YEARS
Brand Name:
DAH
Model Number:
DHN-78X16
Place of Origin:
Anhui, China
Panel Dimensions:
2465*1134*35mm
Product name:
182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Cable:
4.0mm2 , 300/300mm in Length
Glass:
3.2mm High Transmission, Antireflection Coating
Junction Box:
IP68, 3 Bypass Diodes
Connector:
MC4 Compatible
Cells Type:
N-type 182*91mm
Packing:
34pcs/Pallet, 680pcs/40HQ
Maximum System Voltage:
1500V DC
Maximum Series Fuse Rating:
25A
Application Level:
Class A
Certificate:
TUV/CE/IEC/MCS/CQC/INMETRO

Quick Details

Cell size:
182mmx182mm
Type:
PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON
Panel Efficiency:
22.18%
Warranty:
30YEARS
Brand Name:
DAH
Model Number:
DHN-78X16
Place of Origin:
Anhui, China
Panel Dimensions:
2465*1134*35mm
Product name:
182MM 700W 600W 610W 620W N Type Kit De Panel Solar Para Casa
Cable:
4.0mm2 , 300/300mm in Length
Glass:
3.2mm High Transmission, Antireflection Coating
Junction Box:
IP68, 3 Bypass Diodes
Connector:
MC4 Compatible
Cells Type:
N-type 182*91mm
Packing:
34pcs/Pallet, 680pcs/40HQ
Maximum System Voltage:
1500V DC
Maximum Series Fuse Rating:
25A
Application Level:
Class A
Certificate:
TUV/CE/IEC/MCS/CQC/INMETRO
Are you looking for solar panels to start your business? We accept individual buyers,engineering in.stallers, distributors, etc.To meet your various needs, DAH solar panel have a series of international authoritative certificates such as CE, TUV, SGS, IEC, MCS,INMETRO, CQC.
Maximum Power(Pmax)
600w
605w
610w
615w
620w
Open-circuit Voltage (Voc)
54.8
55
55.2
55.4
55.6
Maximum Power Voltage(Vmp)
46
46.2
46.4
46.6
46.8
Short-circuit Current (Isc)
13.84
13.9
13.96
14.02
14.08
Maximum Power Current (Imp)
13.04
13.1
13.15
13.2
13.25
Solar Panel Efficiency
21.46%
21.64%
21.82%
22%
22.18%
Certificate
DAH solar panel have full line of international authoritative certificates such as CE, TUV, SGS, IEC, MCS, INMETRO, etc.Full
Screen PV Module is developed by DAH Solar own R&D team, has got global patents in more than 18 countries.
Our Factory
After years cultivation, DAH Solar has established the silicon wafer, solar cell, PV module, integrated PV system manufacturing bases. DAH Solar has accomplished the industrial integration, which would drive the high-speed development of the enterprise.
Quality Control
During more than 20 production process, each solar panel will be quality tested & inspected and 2 times EL tests by professional and precise instruments, so that each delivery to vour hands is perfect.
Projects & Exhibition
DAH Solar has exported solar system to more than 100 countries, with rich experience in designing,exporting, installation. Our local engineers team can provide timely after-sales service. Also overseas local projects visiting is available to help you know more about our products quality before order.
