Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Number of Axes:
-
None
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
2.2kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*150mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
50
-
Core Components:
-
laser source
-
Showroom Location:
-
Guangzhou
-
Weight:
-
12KG
-
application:
-
grinding,carving,engraving,cutting,drilling, milling
-
applicable materials:
-
woodwork, metal, stone, glass , acrylic.
-
spindle power:
-
300w / 800w / 1.5kw / 2.2 kw / 3kw / 4.5kw / 6kw
-
cooled type:
-
water cooled / air cooled
-
speed:
-
6000-24000r/min
-
Product name:
-
spindle motor
-
Keywords:
-
spindle motor 2.2kw
-
Key word 2:
-
electric spindle motor
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Number of Axes:
-
None
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
2.2kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*150mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
50
-
Core Components:
-
laser source
-
Showroom Location:
-
Guangzhou
-
Weight:
-
12KG
-
application:
-
grinding,carving,engraving,cutting,drilling, milling
-
applicable materials:
-
woodwork, metal, stone, glass , acrylic.
-
spindle power:
-
300w / 800w / 1.5kw / 2.2 kw / 3kw / 4.5kw / 6kw
-
cooled type:
-
water cooled / air cooled
-
speed:
-
6000-24000r/min
-
Product name:
-
spindle motor
-
Keywords:
-
spindle motor 2.2kw
-
Key word 2:
-
electric spindle motor

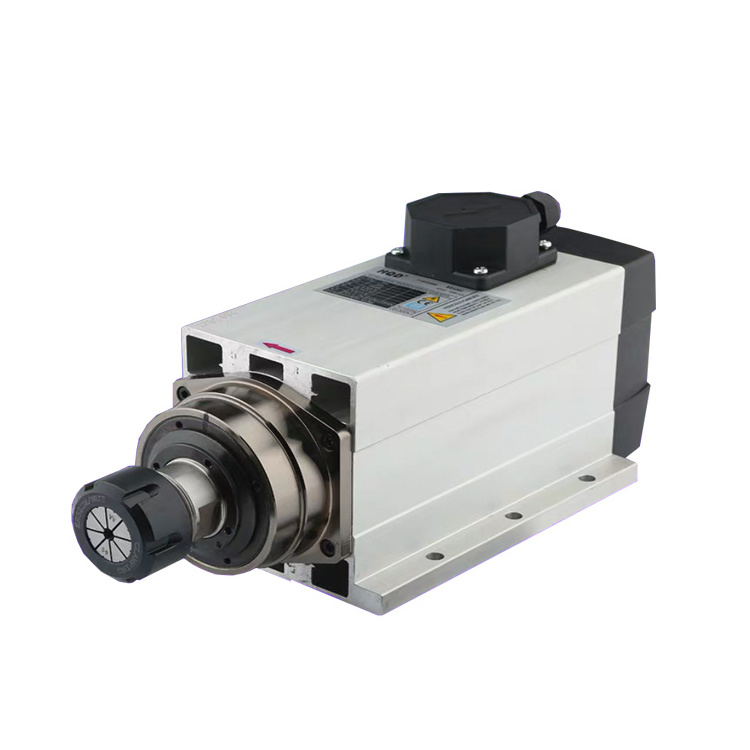

cnc router spare parts electric servo motor atc air-cooling spindle motor 300w / 800w / 1.5kw / 2.2 kw / 3kw / 4.5kw / 6kw/7.5kw
Feature
1. Imported bearing;bearings with dust cover,more secure
2. water-coolled motor,sculpture forceful,high precision,long life
3. With polishing process,can improve motor concentricity to extend the service life of motor
Advantage
1.high speed,strong power,electric
2.different size
3.CE certification
4.stable, endurable, long
life
5.hot sale
Application
1.widely used for woodwork, metal, stone, glass , acrylic.
2.mainly used for carving,engraving,cutting,grinding,drilling,milling.
parameters of water cooled spindle motor
| power | voltage | current | joint of nose | speed | diameter | weight | cooled type | ||
| 300w | 75v | 4.5A | ER 8 | 6000-24000r/min | 50mm | 1.5kg | water cooled | ||
| 800w | 75/150/220v | 5/6A | ER 11 | 6000-24000r/min | 65mm | 2kg | water cooled | ||
| 1.5kw | 220v | 5A | ER 16 | 6000-24000r/min | 80mm | 2.5kg | water cooled | ||
| 2.2kw | 220v | 8A | ER 20 | 6000-24000r/min | 80mm/ 100mm | 5kg | water cooled | ||
| 3kw | 220/380v | 7/12A | ER 20 | 6000-24000r/min | 105mm | 11kg | water cooled | ||
| 4.5kw | 380v | ER 25 | 6000-24000r/min | 16kg | water cooled | ||||
| 6kw | 380v | ER 32 | 6000-24000r/min | 20kg | water cooled | ||||
| 7.5kw | water cooled | ||||||||
parameters of air cooled spindle motor
| power | current | joint of nose | speed | cooled type | ||
| 700w | 4A | ER 11 | 18000r/min | air cooled | ||
| 1.5kw | 6.8/3.8A | ER 20 | 18000r/min | air cooled | ||
| 2.2kw | ER 25 | 18000r/min | air cooled | |||
| 3.5kw | 8.8A | ER 25 | 18000r/min | air cooled | ||
| 4.5kw | 9.5A | ER 32 | 18000r/min | air cooled | ||
| 6kw | 12.6A | ER 32 | 18000r/min |
air cooled |
||
