Quick Details
-
Place of Origin:
-
Henan, China
-
Dimensions:
-
13700*2770*1692mm
-
Overall mass:
-
67 tons
-
Self-weight:
-
7 tons
-
Traction pin height:
-
1300mm
-
wheelbase:
-
1310mm
-
Suspension:
-
1310mm
-
wheeltrack:
-
2050mm
-
Axle:
-
16T/fuwa
-
axles:
-
3
-
tires:
-
12
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60T
-
Size:
-
13700*2770*1692mm
-
Place of Origin:
-
Henan, China
-
Dimensions:
-
13700*2770*1692mm
-
Overall mass:
-
67 tons
-
Self-weight:
-
7 tons
-
Traction pin height:
-
1300mm
-
wheelbase:
-
1310mm
-
Suspension:
-
1310mm
-
wheeltrack:
-
2050mm
-
Axle:
-
16T/fuwa
-
axles:
-
3
-
tires:
-
12

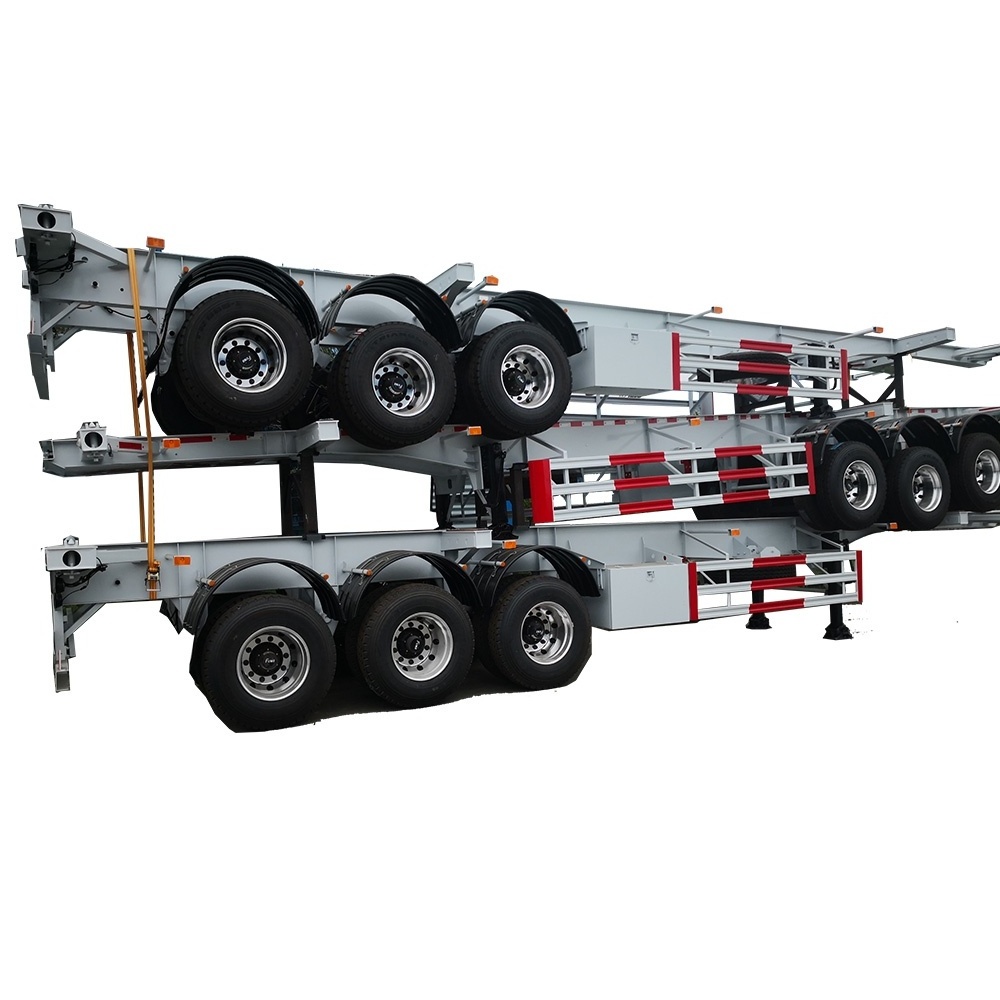

60tons 40ft 20ft container transport 3 axles skeleton semi trailer truck
A semi-trailer is a trailer with its axles placed behind the vehicle's center of gravity (when the vehicle is evenly loaded) and equipped with a hitch that transmits horizontal and vertical forces to the tractor. Semi-trailers are generally three-axle semi-trailers, and their types are divided into 11-meter warehouse semi-trailers, 13-meter warehouse semi-trailers, low-bed semi-trailers, etc. It is a heavy-duty transportation vehicle connected to the front of the semi-trailer through a traction pin.
Semi-trailers are mainly used to transport bulky goods that are difficult to separate, such as excavators, etc. The fence type is more suitable for hauling fresh goods, such as vegetables, fruits, etc. The van type is more suitable for hauling bulk cargo and moisture-proofing , more valuable goods.
| Dimension | 13700*2770*1692 | Overall mass | 67 tons | |
| Self-weight | About 7 tons | Load | 60 ton | |
| Frame body configuration | Traction pin height | 1300mm | Front/rear suspension | / |
| wheelbase | 1310mm | tread | 2050mm | |
| Item | Material | Specification | ||
| beam | Q345B | Cross-sectional height 500mm, 16/10/18 synthetic I-beam, material Q345B | ||
| Crossbeam | Q345B | 200*200*8 square tube | ||
| Locks | Automatic container warp stopper | 6 unit | ||
| Accessories | Suspension | 2-axis heavy-duty mechanical suspension | Plate Spring | 8 unit 90*16*10 |
| Axle | 16T/fuwa | Number of axles | 3 | |
| Tires | 12R22.5 | Number of tires | 12 | |
| Steel Rings | 9.0R22.5 | Number of steel rings | 12 | |
| Leg support | 28ton |
Traction pin
specifications |
50# or 90# interchangeable type | |
| Braking System | Brake Valve Brands | WABCO | Brake air chamber | T30/30-*4 |
| Braking System | Emergency brake system, air brake, double air pipeline, 4*T30/30 brake air chamber, two*40L air storage tanks | |||
Advantages: Semi-trailers can improve the overall economic benefits of road transportation. Transportation efficiency can be improved by 30-50%, costs reduced by 30-40%, and fuel consumption reduced by 20-30%. More importantly, the use of semi-trailers can also promote the organizational form of my country's logistics to a certain extent.
