Online RO Conductivity TDS Controller for water purify system

Online RO Conductivity TDS Controller for water purify system

FOB Reference Price: Get Latest Price

≥1 Sets

US $105

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 1.5

Size:: 96*96*130 mm (L *W *D)

Power:: ≤10W

Weight (KG):: 1 kg

Product name:: Online RO system Controller

Brand:: JIRS

Function:: Reverse Osmosis Water Purification

Measuring range::: 0-2000uS

Power supply:: 220V AC, Optional 110V AC, 24V DC

After Warranty Service:: 1 year

After-sales Service Provided:: Yes

Certification:: CE, ISO 9001 :2015

MOQ:: 1pc

Display::: Feed/Produced water Conductivty/TDS Temperature value

Quick Details

Place of Origin:: Hebei, China

Brand Name:: JIRS

Material:: Carton

Weight:: 1.5

Size:: 96*96*130 mm (L *W *D)

Power:: ≤10W

Weight (KG):: 1 kg

Product name:: Online RO system Controller

Brand:: JIRS

Function:: Reverse Osmosis Water Purification

Measuring range::: 0-2000uS

Power supply:: 220V AC, Optional 110V AC, 24V DC

After Warranty Service:: 1 year

After-sales Service Provided:: Yes

Certification:: CE, ISO 9001 :2015

MOQ:: 1pc

Display::: Feed/Produced water Conductivty/TDS Temperature value

Product Overview

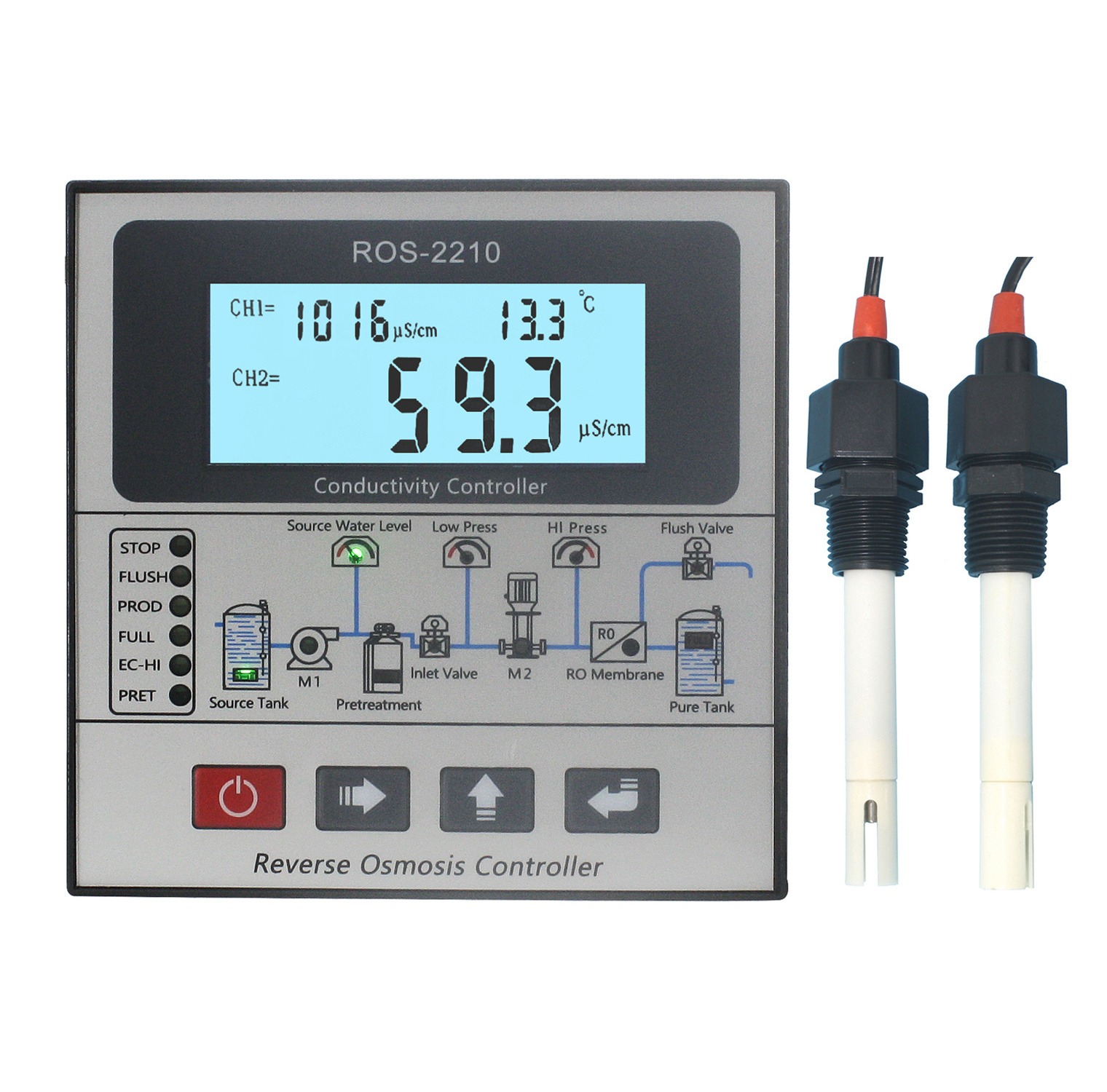

Online RO System Controller ROS-2210

The ROS-2210 combines RO control and dual Conductivity measurement. It is equipped with a typical process control program for the RO system. It can easily and clearly view the measurement data of the inlet water conductivity and produced water conductivity and the operating status of the RO equipment. Combine PLC and two-way conductivity meter.

The instrument has been further optimized with many improvements and version upgrades. It is very suitable for the automatic management of the first-stage reverse osmosis water-making equipment.

FEATURES AT A GLANCE

Online RO controller with 2pcs Conductivity/ TDS Sensors for Feed and produced water

Full View LCD Display：

Produced Water Conductivity Value,

Feed Water Conductivity Value, Temp. Value

RO Collecting point: No Water protection,

Low/High pressure protection,

Pure water tank high level protection,

Exterior operation etc.

RO Controlling points:

Inlet Water Valve, Flush Valve,

Feed Water pump, High pressure pump,

Conductivity over limit discharge valve

Auto/Manual Control optional

Flow Control Panel reflect the status

of Pump, Valves and Pressure etc.

Front View

Side View

Back View

PRODUCT SPECIFICATIONS

No	Item	Data	Optional	Optional
1	Power Supply:	220V AC	110V AC	24V DC
2	Measuring Range:	0-2000uS	0-1000ppm	Conductivity/TDS
3	Matched sensor	Produced water	Feed Water sensor	K=1.0，1/2"NPT
4	Working Temp/Pressure	5~60 °C	0~0.5 MPa	Humidity ≤85%
5	Output:	Relay 3A/250V AC	solenoid valve	Pump
6	Display mode:	LCD	Full View	3 1/2"
7	Dimensions:	9696130 mm	(L W D)
8	Opening size:	92*92 mm	(L *W )
