Lift the handle with your right hand,insert the two aligned straps into the baler with your left hand,and compact the straps. The end of the lower strap extends out of the base,making sure that the strap is pressed tightly by the strap guide plate.
- Product Details
- {{item.text}}

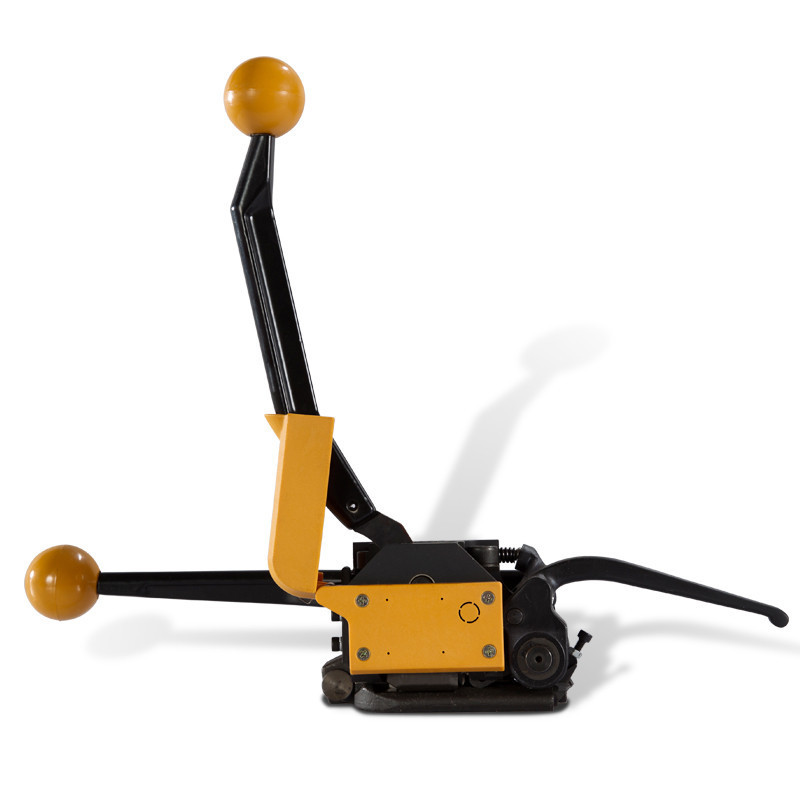

Quick Details
-
Model:
-
A333
-
Apply Strap:
-
Steel Belt/Iron Belt
-
Specification:
-
13-19mm
-
Strap Width:
-
0.4-0.8mm
-
Locking Method:
-
Yin And Yang Buckle
-
Interface Firmness:
-
70% of the load of consumables
-
Dimensions:
-
L387*H168*W308mm
Quick Details
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
43*34*22cm
-
Weight:
-
6 KG, 3.9kg
-
Model:
-
A333
-
Apply Strap:
-
Steel Belt/Iron Belt
-
Specification:
-
13-19mm
-
Strap Width:
-
0.4-0.8mm
-
Locking Method:
-
Yin And Yang Buckle
-
Interface Firmness:
-
70% of the load of consumables
-
Dimensions:
-
L387*H168*W308mm
Product Paremeter
|
Model
|
A333
|
|
Applicable Strap
|
Steel Belt/Iron Belt
|
|
Appliable Strap Thickness
|
0.4-0.8mm
|
|
Appliable Strap Width
|
13-19mm
|
|
Locking Method
|
Yin And Yang Buckle
|
|
Interface Firmness
|
70%of the load of consumables
|
|
Dimensions
|
L387*H168*W308mm
|
|
Weight
|
3.9kg
|
Product Details
Place packing tape
Tighten the packing straps
The left hand above the strapping belt holds the tension handle of the baling machine,and the right hand moves forward and backward to tighten the brake until the strapping belt is tightened.
Sealing tape
Use your left hand to push the banding handle forward to the end, and then pull it back to its original position. When banding, hold the tensioner with your right hand to control the banding strength.
Loosen the handle
Use your left hand to hold the tape head of the cut tape, lift the tape handle with your right hand, and push the baler to the right
Difference Between Machine
|
Model
|
JD13/16
|
V3
|
JDC
|
DD19A
|
Q1
|
|
Battery Capacity
|
3000mAh
|
4000mAh
|
4000mAh
|
4000mAh
|
5000mAh
|
|
Pull
|
600-2800N
|
900-3200N
|
600-2800N
|
600-5500N
|
400-3200N
|
|
Charging Time
|
90mins
|
100mins
|
90mins
|
100mins
|
90mins
|
|
Display Screen
|
Without
|
Without
|
Without
|
With
|
With
|
|
Apply Strap
|
PET/PP
|
PET/PP
|
PET/PP
|
PET/PP
|
PET/PP
|
|
Apply Strap Width
|
13-16mm
|
13-16mm
|
13-16mm
|
13-19mm
|
13-16mm
|
|
Apply Strap Thickness
|
0.4-1.2mm
|
0.4-1.2mm
|
0.4-1.2mm
|
0.4-1.2mm
|
0.4-1.2mm
|
