Quick Details
-
Brand Name:
-
TSAUTOP
-
Model Number:
-
TS-RDT300
-
Name:
-
Hydrographic dipping tank
-
Gross Power:
-
400W
-
Voltage:
-
220V and customize accept
-
Dimensions/L*W*H:
-
1.2*2.4*0.8M and customizable
-
Weight:
-
About 400KGS
-
Dipping area:
-
available size
-
Certification:
-
CE
-
Pump:
-
Stainless Stell Pump
-
Matherial:
-
2.5mm Stainless steel and customizable
-
Heating Elements:
-
1 set, single phase,220v,50HZ,400W
Quick Details
-
Method:
-
Water Transfer Printing
-
Usage:
-
Water Transfer Printing
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TSAUTOP
-
Model Number:
-
TS-RDT300
-
Name:
-
Hydrographic dipping tank
-
Gross Power:
-
400W
-
Voltage:
-
220V and customize accept
-
Dimensions/L*W*H:
-
1.2*2.4*0.8M and customizable
-
Weight:
-
About 400KGS
-
Dipping area:
-
available size
-
Certification:
-
CE
-
Pump:
-
Stainless Stell Pump
-
Matherial:
-
2.5mm Stainless steel and customizable
-
Heating Elements:
-
1 set, single phase,220v,50HZ,400W

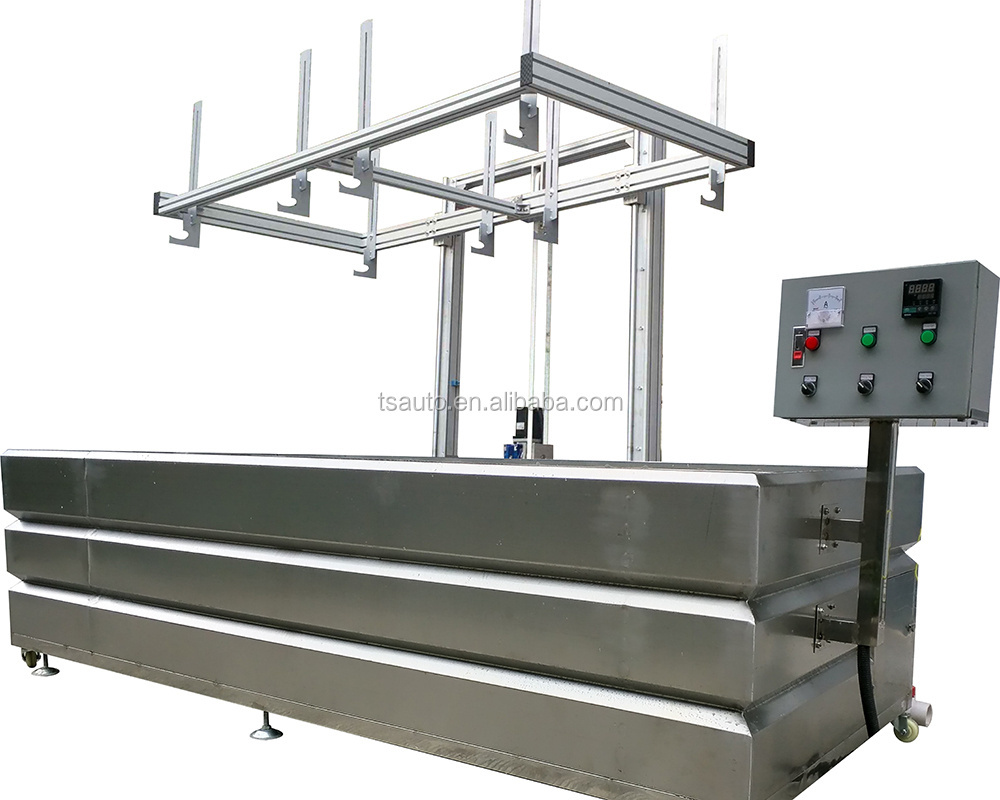

TSAUTOP 1.2x2.4x0.8m semi automatic hydrographic equipment water transfer printing machine hydro dipping tank with dipping arm
(offer water transfer printing service)
Feature: Hydrographic printing tank
water transfer printing tank
3d cubic printing machine
hydro dipping machine
|
Size |
Outside Size : |
L: 240CM X W: 120CM X H: 100CM |
|
Dipping Area |
L: 200CM X W: 100CM |
|
|
Material |
Stainless Steel |
T=1.8mm+-0.2mm |
|
Main Components |
Heating Elements |
2 Set , 220V, Single Phase, 50 HZ, 6000W |
|
Water Recirculation System |
Pump Power: 220V, Single Phase, 50 HZ, 0.75HP |
|
|
Control Panel |
1.Master Power On/Off Switch 2.Pump On/Off Switch 3.Heating Element #1,#2 On/Off Switch 4.Digital Thermostat X 1 PCS 5.All the red and green lights needed for the switches. |
|
|
Water Capacity |
1.6Ton |
|
|
Package |
Plywood Case |
|
|
Net WT |
400 KGS |
|
|
Gross WT |
450 KGS |
|
|
Package Size |
L: 260 C M X W: 140 C M X H: 140 C M |
Other materials
1 .Hydro films: 2—3usd per square meter, more than 4000 designs available
2 . Activator A: 15usd/liter
3 . Activator B: 12usd/liter
4 . Speed shapes: 0.9usd/pc minimum 50pcs, white/black color available
5 . Printer: A3+ printer(maximum print width 480mm)+600ml inks:1100usd/set
6 . Printable blank hydro film: 1.27*250m/roll, 3.2usd/sqm; A3 and A4 available
S hipping and Payment
Payment Terms: DDP, DDU, CIF, FOB, EXW
Payment way:
T/T Bank Transfer, Paypal, West Union, Moneygram
