Quick Details
-
Dimension(L*W*H):
-
1650*1050*1500
-
Power (kW):
-
3 kW
-
Weight (KG):
-
300 KG
-
Name:
-
Waste Tire Rubber Ring Cutting Machine
-
Machine Type:
-
Semi Auto
-
Function:
-
It used to cut the sidewall of steel wire tire.
-
Raw material:
-
Waste car tires and truck tires
-
Advantage:
-
Small investment and strong applicability
-
Blade material:
-
Special metal heat treatment, which is high hard, wearable and durable
-
Max.tire diameter:
-
1200mm
-
Operation:
-
1 Person
-
Structure:
-
Frame rotate mechanism,prop mechanism and knife mechanism.
-
Control method:
-
Electric control cabinet
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tianyu
-
Voltage:
-
Customer's Request
-
Dimension(L*W*H):
-
1650*1050*1500
-
Power (kW):
-
3 kW
-
Weight (KG):
-
300 KG
-
Name:
-
Waste Tire Rubber Ring Cutting Machine
-
Machine Type:
-
Semi Auto
-
Function:
-
It used to cut the sidewall of steel wire tire.
-
Raw material:
-
Waste car tires and truck tires
-
Advantage:
-
Small investment and strong applicability
-
Blade material:
-
Special metal heat treatment, which is high hard, wearable and durable
-
Max.tire diameter:
-
1200mm
-
Operation:
-
1 Person
-
Structure:
-
Frame rotate mechanism,prop mechanism and knife mechanism.
-
Control method:
-
Electric control cabinet
-
Marketing Type:
-
Hot Product 2022
Product Overview

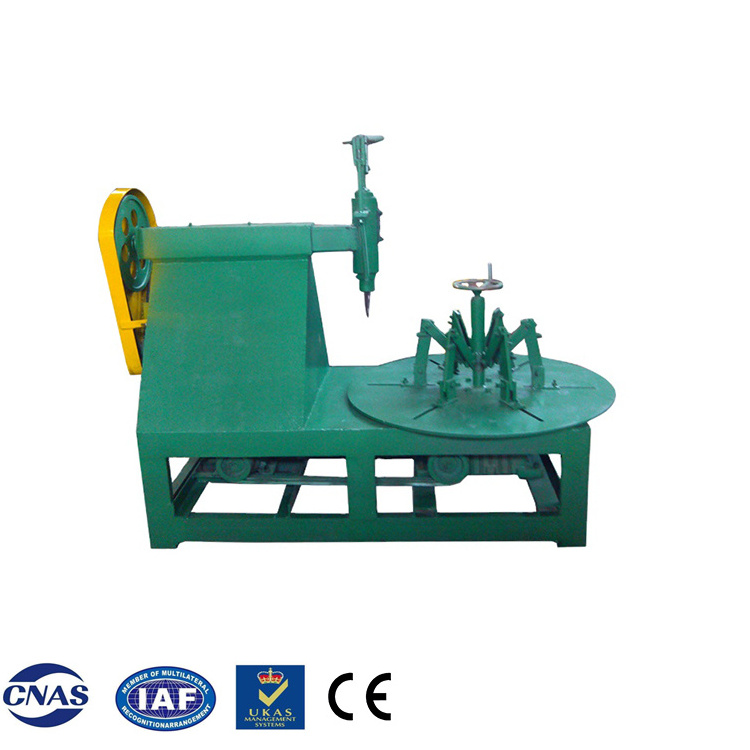

Tire ring cutter
machine
is mainly used to
cut the sidewall
of steel wire tire to be recycled for the next step of segmentation. This tire cutter is a special equipment to cut and separate tire bead ring tire sidewall and tire crown of waste tires,which is the
first process of treating waste tires
.
Structure and Principle
The tire ring cutting machine consists of
frame rotate mechanism
,
prop mechanism
and
knife mechanism
.
Principle
1.Put the tire on the platform,then rotate the hand wheel the three claws will stick the inner tire firmly.
2.Start the power in a low speed by reduction drive mechanism and work platform will rotate.
2.Start the power in a low speed by reduction drive mechanism and work platform will rotate.
Knife is set on the machinery panel and it can be moved forward and back at one's ease.
With the rotating of the tire,the knife cuts into the tire to cut open it successfully.
Tips
:
In order to cut the tire even smoothly and cool the knife,you can use water pump to inject cooling water to the cutting point.
Product Paramenters
|
Model
|
TRC1000
|
|
Capacity
|
1t/h
|
|
Voltage
|
according to coustomer's request
|
|
Max.tire diameter
|
1200mm
|
|
Power
|
3kw
|
|
Weight
|
300kg
|
|
Overall dimensions
|
1650*1050*1500mm
|
Features
1.
Long service life
and
high quality
tool steel of fixed blade and high hardness degree of movable blade cutting edge.
2. Simple to operate , easy to maintain.
3. Auto self-lift equipment reduce the labor .
4. Low energy consumption and high working efficiency .
5. Simple structure, small weight and small space .
2. Simple to operate , easy to maintain.
3. Auto self-lift equipment reduce the labor .
4. Low energy consumption and high working efficiency .
5. Simple structure, small weight and small space .
