Quick Details
-
DADI total station:
-
DADI DTM622R
-
1 prism:
-
3000m
-
Accuracy:
-
2"
-
Single prism:
-
3500m
-
Three prism:
-
5000m
-
Non prism:
-
300m
-
Program:
-
Recession,Lay-off,Remote elevation,Offset,MLM,Area measurement
-
Shortest sighting dictance:
-
1.5m
-
Weight:
-
6.8kg
-
Power supply:
-
DC7.4V,4000mAh
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DADI
-
Model Number:
-
DTM622R
-
DADI total station:
-
DADI DTM622R
-
1 prism:
-
3000m
-
Accuracy:
-
2"
-
Single prism:
-
3500m
-
Three prism:
-
5000m
-
Non prism:
-
300m
-
Program:
-
Recession,Lay-off,Remote elevation,Offset,MLM,Area measurement
-
Shortest sighting dictance:
-
1.5m
-
Weight:
-
6.8kg
-
Power supply:
-
DC7.4V,4000mAh

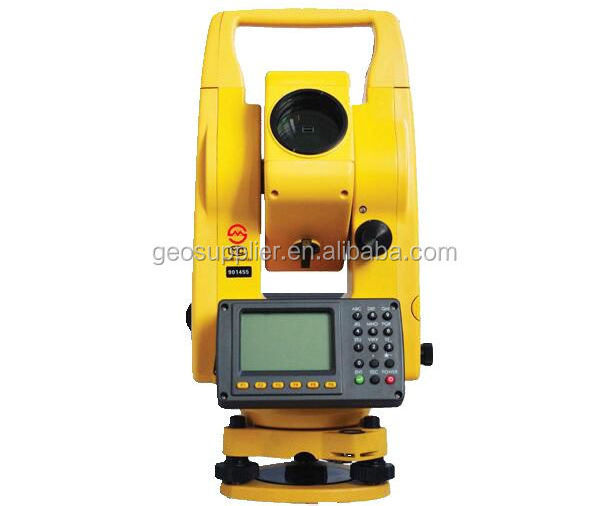

best price dadi dtm622r total station survey equipment
Designed by the newest technology,fast speed to make the measurement more quickly. Safety laser and large LED display. to protect the eyes of the surveyor.Plenty of applied software to achieve knids of measurement
DTM622r DADI electronic total station with cheap price features:
Laser beam focused in non-prism mode for 300m distance.
·Strong software to help to achieve the measurment.
·RS232 or USB ports for option.
·Good laserto protect the eyes of the surveyor.
·Large LED display.
DTM622r DADI electronic total station with cheap price SPECIFICATION :
Model | DTM622R | |
Distance Measurement Section | ||
Range | Non-prism | 300m |
Prism | Single prism:3000m,Three prism:5000m | |
Accuracy | Non-prism | ±(5mm+3ppm.D) |
Prism | ’±(2mm+2ppm.D),±(3mm+2ppm.D) | |
Unit | m/foot | |
Disply | Maximum | 99999999.999m |
Minimum | 0.1mm | |
Measuring time | Precise model:1s,Track model:0.8s | |
Number of time Set | 1-99 | |
Meteorologic correction | Input the value and correct automatic | |
Prism constant | Input the value and correct automatic | |
Angle Measurement Section | ||
Method | Absolute coding | |
Grating diameter | 79mm | |
Minimum reading | 1" | |
Detection | Horizontal | Diametrical detection |
Vertical | Diametrical detection | |
Accuracy | 2" | |
Telescope Section | ||
Imaging | Positive | |
Length | 170mm | |
Effective aperture | 48mm | |
Magnification | 30x | |
Angle of version | ‘1.5° | |
Distinguish ability | 3.5" | |
Minimum focus distance | 1.5m | |
Compensor | ||
System | Double axis photoelectric tilt sensor | |
Working range | ’±3′ | |
Distinguish ability | 1" | |
Display Section | ||
Type | Double sides,240*160 LCD Display | |
Data Transmission | ||
Port | USB,RS-232C | |
Capacity | 40,000data at least | |
Others | ||
Plummet | Optical or Laser plummet | |
Power | DC7.4V,4000mAh | |
Continuous working time | 8 hours at least | |
Size | 174*207*383mm | |
Weight | 6.8KG | |
Working temperature | ‘-20°C-50°C |
Inner foam pad + Engineering plastic carrying case + outer foam pad + Double paper carton
Our warranty policy:
1. For instruments (total station,theodolite,GNSS,auto level), we offer 1 year warranty,for accesories(Prism,pole,tripod ,levelling staff).we offer 6 months warranty,from the day you get the product.
2.For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.We will be responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct to us.
3.For problem out of the warranty period or warranty liability,we will judge the probelm and quoted for you.You need to pay double-run freight and the maintenace cost.
4.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man-made damage of the instrument is not coverd in warranty liablity.Warranty only aimed at the problem caused by the product quality.
1.Whats your payment method ?
We accept T/T in advance,L/C at sight,Western Union,Moneygram,Paypal ,Secure Payment(Alibaba) and Credit Card.For L/C payment ,some countries and some models are not avaliable,for PayPal payment,you need to pay additional charge by Ebay company about 4% of the total Amount.
2.How can you guanrantee the safety of my funds?Trust is always a big problem for international trade,we believe good businees credit and reputation is the most important for businessman.We recommend Trade Assurance service by Alibaba Group.We wont get the fund unless you get the product and confirm the payment.
3.What Countries do you ship to?
We ships goods to almost all countries by express ,air or sea. And we will inform you if we cant ship to your country.
4.Are your products in stock?
Most items are usually in stock. It all depends on promotions we run, demand at manufacturers and suppliers, and other parts of the equation.Most delivery will be made within 3 working days after payment confirmed.
5.Does GeoSupplier sell used equipment?
We do not sell any used equipment. Everything we sell is brand new.For some instrument we may need to test or check the language before delivery,but we do it very carefully.
6.Do you have other items that are not displayed on your website?
Yes, we have other items that we do not display on our website. Please contact us and let us know what you are looking for. Chances are we have it, or can find it, as long as its surveying related.
