Luyangwool
®

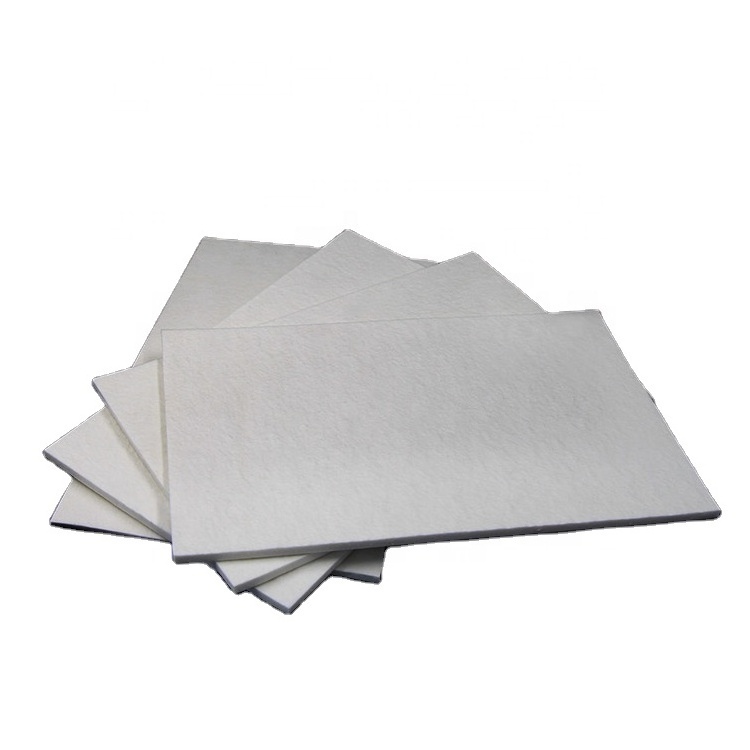

paper
is manufactured by blending Luyangwool ® bulk, binders, and additives.The specialized paper-making process is used to form uniform and flexible paper.Luyangwool ® paper is easy to be handled and cut.Luyangwool ® paper can be used in a wide range of applications as thermal insulation.It is especially suited to used in gaskets and as a parting medium.
Excellent thermal shock resistance
Can be machined,cut and shaped easily
High flexibility
Low thermal conductivity
Good dielectric strength
- Product Details
- {{item.text}}
Quick Details
-
Fiber Diameter:
-
3-5μm
-
Thermal Conductivity:
-
0.06-0.12 w/m.k
-
Density (kg/m³ ):
-
128
-
Place of Origin:
-
Shandong, China
-
Width:
-
50--1220 mm(1.97--48.03")
-
Length:
-
1000 mm min(39.37")
-
Shrinkage (1800℉, 3h):
-
-
-
Brand Name:
-
LUYANGWOOL
-
Model Number:
-
aluminium silicate fiber paper
-
Product name:
-
0.5mm-10mm Thickness Ceramic Fiber Paper
-
Classification Temperature (℃ ):
-
1260/1350
-
Density (kg/m3):
-
200/240
-
Tensile Strength (MPa):
-
0.4/0.7
-
Loss of Ignition (%):
-
≤10/6
-
Al2O3:
-
42-47/44-50
-
SiO2:
-
52-57/49-55
-
Feature 1:
-
Excellent thermal shock resistance
-
Feature 2:
-
Can be machined, cut and shaped easily
-
Brand:
-
LUYANGWOOL
Quick Details
-
Chemical Composition:
-
Al2O3:42-47%, SiO2:52-57%
-
Ultimate Strength (≥ MPa):
-
0.4Mpa
-
Working Temperature:
-
1100℃
-
Fiber Diameter:
-
3-5μm
-
Thermal Conductivity:
-
0.06-0.12 w/m.k
-
Density (kg/m³ ):
-
128
-
Place of Origin:
-
Shandong, China
-
Width:
-
50--1220 mm(1.97--48.03")
-
Length:
-
1000 mm min(39.37")
-
Shrinkage (1800℉, 3h):
-
-
-
Brand Name:
-
LUYANGWOOL
-
Model Number:
-
aluminium silicate fiber paper
-
Product name:
-
0.5mm-10mm Thickness Ceramic Fiber Paper
-
Classification Temperature (℃ ):
-
1260/1350
-
Density (kg/m3):
-
200/240
-
Tensile Strength (MPa):
-
0.4/0.7
-
Loss of Ignition (%):
-
≤10/6
-
Al2O3:
-
42-47/44-50
-
SiO2:
-
52-57/49-55
-
Feature 1:
-
Excellent thermal shock resistance
-
Feature 2:
-
Can be machined, cut and shaped easily
-
Brand:
-
LUYANGWOOL
Products Description
LUYANGWOOL® CERAMIC FIBER PAPER / RCF Paper
Typical Parameters
|
Description
|
LUYANGWOOL® STD PAPER
|
LUYANGWOOL® HD PAPER
|
||
|
Classification Temperature (℃ )
|
1260
|
1350
|
||
|
Chemical Composition (%)
|
|
|
||
|
Al2O3
|
42-47
|
44-50
|
||
|
SiO2
|
52-57
|
49-55
|
||
|
Color
|
White
|
White
|
||
|
Density (kg/m³)
|
200
|
240
|
||
|
Tensile Strength (MPa)
|
0.4
|
0.7
|
||
|
Loss of Ignition (%)
|
≤10
|
≤6
|
||
|
Thermal Conductivity (W/m·K)
|
|
|
||
|
200℃
|
0.06
|
0.06
|
||
|
400℃
|
0.09
|
0.08
|
||
|
600℃
|
0.13
|
0.13
|
||
|
800℃
|
0.20
|
0.19
|
||
|
1000℃
|
-
|
0.29
|
||
|
1200℃
|
-
|
0.43
|
||
