Quick Details
-
Model Number:
-
PD-PIR157
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Size:
-
64*44*79.5mm
-
Regular color:
-
White Black
-
Lead time:
-
35 days
-
Shipping time:
-
20 - 40 days
-
Shipping way:
-
By sea train plane
-
OEM/ODM:
-
Yes
-
Logo:
-
Yes
-
MOQ:
-
PDLUX 500, Customize 3000
-
Certificate:
-
CE
-
Warranty:
-
3 Years or 6 Years(zero-crossing)
Quick Details
-
Use:
-
Auto-switch
-
Mounting Type:
-
Ceiling/Wall mounted
-
Description:
-
PIR Sensor
-
Model Number:
-
PD-PIR157
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Size:
-
64*44*79.5mm
-
Regular color:
-
White Black
-
Lead time:
-
35 days
-
Shipping time:
-
20 - 40 days
-
Shipping way:
-
By sea train plane
-
OEM/ODM:
-
Yes
-
Logo:
-
Yes
-
MOQ:
-
PDLUX 500, Customize 3000
-
Certificate:
-
CE
-
Warranty:
-
3 Years or 6 Years(zero-crossing)
Product Description

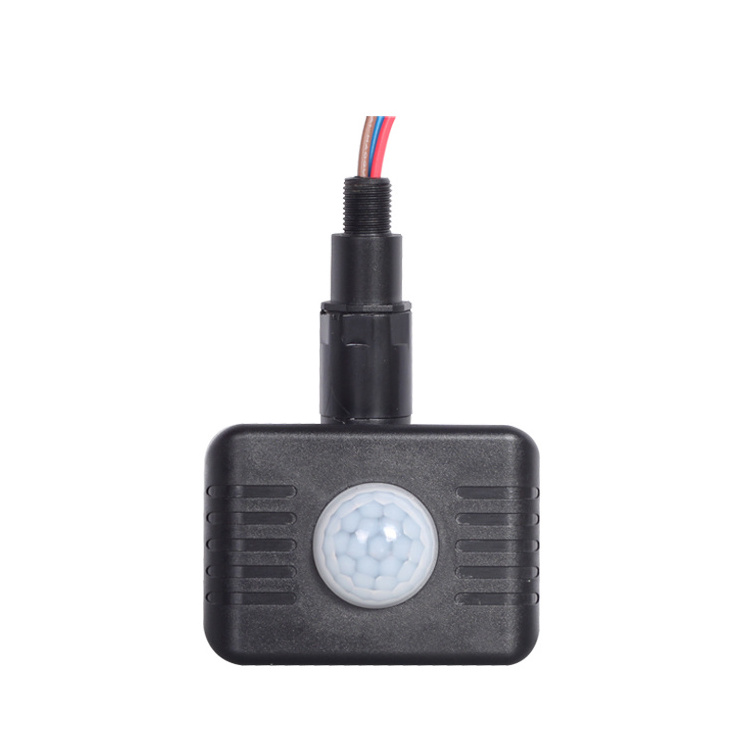

PDLUX PD-PIR157 Outdoor IP44 Pir Motion Sensor Detector Smart Switch Led 110v 220v Pir Infrared Motion Sensor
|
Power Source
|
100-240V/AC
|
|
Power Frequency
|
50/60Hz
|
|
Rated Load
|
0.5A Max. (any load)
|
|
Standby Power
|
＜0.2W
|
|
Time Setting
|
8s-9min (Adjustment)
|
|
Detection Range
|
2-10m (24℃) (Wall installation)
|
|
Detection Angle
|
120°
|
|
Working Temperature
|
-10℃ ~ +40℃
|
|
Working Humidity
|
≤95%RH
|
|
Light-control
|
<10LUX - 300LUX (adjustable)
|
|
Installation Height
|
1.8~2.5m (Wall installation)
|
|
Sense Motion Speed
|
0.6 ~ 1.5m/s
|
|
Protection Level
|
IP44
|
Function
★ I
dentify day and night automatically
: the light control can be adjusted freely when it works. It can work in the daytime and at night when it is adjusted on the “sun” position (max); but it can only work in the light control less than 10lux when it is adjusted on the “moon” position (min)
.
★
Time delay can be added continually: when it received the second induction signal after the first it will compute time once more on the rest of the first time delay basic.(Set time)
★
It can be defined in the range of 10~>300 LUX. To turn the knob fully clockwise is about 10 lux,fully anti-clockwise is about 300 lux.When adjusting the detection zone and performing the walk test in daylight,you should turn the knob fully clockwise.
★
It can be defined from 8 seconds(turn fully anti-clockwise) to 9 minutes(turn fullyclockwise). Any movement detected
before this time elapses will re-start the timer. It is recommended to select the shortest time for adjusting the detection range and for performing the walk test.
