Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Postmodern
-
Type:
-
cuplock scaffold
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
Q235 CUPLOCK scaffolding
-
Product name:
-
Q235/Q355 cuplock system scaffold
-
Component:
-
Ledger,cross brace,standard
-
Surface finish:
-
Hot dipped galvanized
-
Material:
-
Q235,Q345
-
Brand:
-
ADTO
-
Surface treatment:
-
Hot Dip Galvanized
-
Certificate:
-
SG.S CE
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Cross Categories Consolidation
-
Application:
-
Apartment
-
Design Style:
-
Postmodern
-
Type:
-
cuplock scaffold
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
Q235 CUPLOCK scaffolding
-
Product name:
-
Q235/Q355 cuplock system scaffold
-
Component:
-
Ledger,cross brace,standard
-
Surface finish:
-
Hot dipped galvanized
-
Material:
-
Q235,Q345
-
Brand:
-
ADTO
-
Surface treatment:
-
Hot Dip Galvanized
-
Certificate:
-
SG.S CE
HDG Heavy duty used cuplock scaffolding system parts vertical standard for sale
Cup-Lock scaffolding system is a multi-purpose system scaffold, suitable for access and formwork support
in all types of construction of building & civil engineering projects.
This complete galvanized system is probably the fastest and most-widely preferred scaffold system.
The main feature of Cup-Lock is the unique node locking method which allows up to four horizontal members to be fastened to a vertical member in one action by a single hammer blow - without the use of nuts and bolts or wedges.
The locking node is formed by two cups, a fixed lower cup which is welded to the vertical member at every 500mm intervals and a sliding upper cup. First the forged blade ends of the horizontal member are connected loosely but safely to the lower cup.
The key strength of Cup-Lock scaffolding system is being extremely versatile. It is ideal for many applications as formwork support,
or general access scaffold, staircase tower, mobile tower and table form. It has flexible erection as straight,
curved or circular configuration for both access and support purposes.
Components:
Cup-Lock Standard With Spigots, Cup-Lock Ledger, Cup-Lock Diagonal Brace, Top & Bottom Cup, Blades, Steel Plank,
Steel Stair Case and Steel Base Jack.
Product Feature:
-Simple. Components allow the easy creation of cantilevers, inside platforms and stair cases.
-Lighter. 20% lighter than Coupler & Pin Scaffolding System
-Safe to erect and use

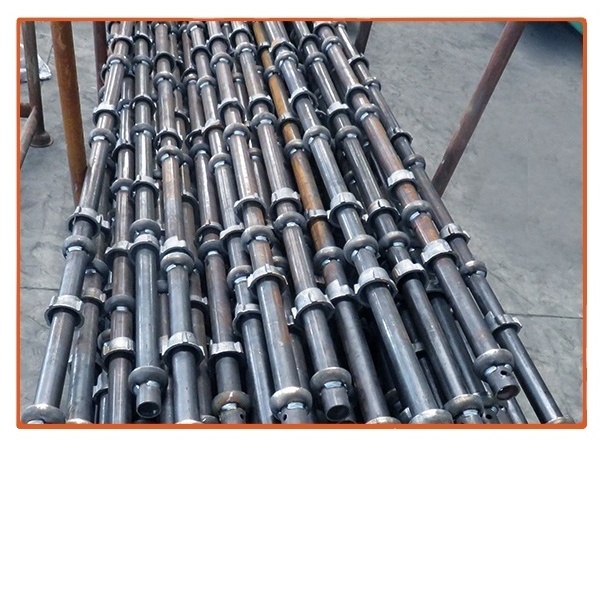

Standard with Spigots
| Description | Weight |
|---|---|
| 1.0M Cup-Lock Standard, Hot Dipped Galvanized | 5.50kg |
| 2.0M Cup-Lock Standard, Hot Dipped Galvanized | 11.40kg |
| 3.0M Cup-Lock Standard, Hot Dipped Galvanized | 16.60kg |
Cup-Lock Standard Without Spigots
| Description | Weight |
|---|---|
| 0.4M Cup-Lock Standard, Hot Dipped Galvanized | 2.40kg |
| 0.8M Cup-Lock Standard, Hot Dipped Galvanized | 4.60kg |
| 1.3M Cup-Lock Standard, Hot Dipped Galvanized | 6.60kg |
| 1.8M Cup-Lock Standard, Hot Dipped Galvanized | 9.10kg |
| 2.3M Cup-Lock Standard, Hot Dipped Galvanized | 11.60kg |
Cup-Lock Ledger
| Description | Weight |
|---|---|
| 0.6M Cup-Lock Ledger, Hot Dipped Galvanized | 2.65kg |
| 0.9M Cup-Lock Ledger, Hot Dipped Galvanized | 3.73kg |
| 1.0M Cup-Lock Ledger, Hot Dipped Galvanized | 4.10kg |
| 1.2M Cup-Lock Ledger, Hot Dipped Galvanized | 4.81kg |
| 1.3M Cup-Lock Ledger, Hot Dipped Galvanized | 5.17kg |
| 1.6M Cup-Lock Ledger, Hot Dipped Galvanized | 6.24kg |
| 1.8M Cup-Lock Ledger, Hot Dipped Galvanized | 6.96kg |
| 2.3M Cup-Lock Ledger, Hot Dipped Galvanized | 9.50kg |
Cup-Lock Diagonal Brace
| Description | Length | Weight |
|---|---|---|
| 1.8 x 1.5M Cup-Lock Diagonal Brace, Hot Dipped Galvanized | 2.343M | 8.70kg |
| 1.8 x 2.0M Cup-Lock Diagonal Brace, Hot Dipped Galvanized | 2.691M | 9.80kg |
| 2.5 x 1.5M Cup-Lock Diagonal Brace, Hot Dipped Galvanized | 2.916M | 10.70kg |
| 2.5 x2.0M Cup-Lock Diagonal Brace, Hot Dipped Galvanized | 3.202M | 11.50kg |
| 3.0 x2.0M Cup-Lock Diagonal Brace, Hot Dipped Galvanized | 3.606M | 13.00kg |
Cup-Lock Intermediate Transom
| Description | Weight |
|---|---|
| 0.565M Cup-Lock Intermediate Transom | 2.80kg |
| 0.795M Cup-Lock Intermediate Transom | 3.70kg |
| 1.3M Cup-Lock Intermediate Transom | 5.50kg |
| 1.8M Cup-Lock Intermediate Transom | 7.30kg |
| 2.5M Cup-Lock Intermediate Transom | 16.50kg |
Cuplock scaffolding show:
ADTO Cuplock Scaffolding System
ADTO
Cuplock
scaffolding system is a modular scaffold system. It is composed of standards, ledgers,diagonal braces, base collars, triangle brackets and wedge pins. Rosettes are welded to the standards in every 500mm and totally 8 rosettes can be made in one standard. Ledgers and diagonal braces are connected to the resettes woth a system of casted heads and wedge pins.
Ringlock system is a safe and efficient scaffold system. They are wodely used in the construction of bridges, tunnels, water towers, oil refinery, etc.
Major advantages of Cuplock scaffolding system
1.Quick erection
2.Safe and simple one-man assembly
3.Very littele material required
4.Maintenance free and always ready to use
5.Economic and versatile design.
