Automatic Soap Cutting Production Line Soap Loaf Cutter Slicer Divider Machine Landuary Soap Bar Cutting Machine

Automatic Soap Cutting Production Line Soap Loaf Cutter Slicer Divider Machine Landuary Soap Bar Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Machine Type:: soap cutting machine

Name:: Automatic soap cutting machine

Application:: Make Soap

Function:: Cutting and Trimming

Capacity:: 12 pcs bar per seconds

Material:: 304 stainless

Cutting Blade material:: #45 steel

Cutting Frame:: Aluminum alloy

Related machines:: Soap Stamping Machine

Realted machines 1:: Soap Wrapping Machine

Working method:: Electric and pneumatic

Quick Details

Place of Origin:: Henan, China

Brand Name:: Aslan

Weight (KG):: 400

Machine Type:: soap cutting machine

Name:: Automatic soap cutting machine

Application:: Make Soap

Function:: Cutting and Trimming

Capacity:: 12 pcs bar per seconds

Material:: 304 stainless

Cutting Blade material:: #45 steel

Cutting Frame:: Aluminum alloy

Related machines:: Soap Stamping Machine

Realted machines 1:: Soap Wrapping Machine

Working method:: Electric and pneumatic

Product Introduction

Soap Cutting Machine Introduction

This machine has two functions: first , it is used to trim the soap block surface , so
that the soap can be flat. Second, the machine cut the big soap block into small soap bar one time. No need to cut the soap many
times. The soap is made by pouring soap raw liquid into the box or trays , after cooling, the soap liquid will become the solid
soap block. The user just need to put the block onto the machine, the machine will cut the soap block into small bars
automatically.

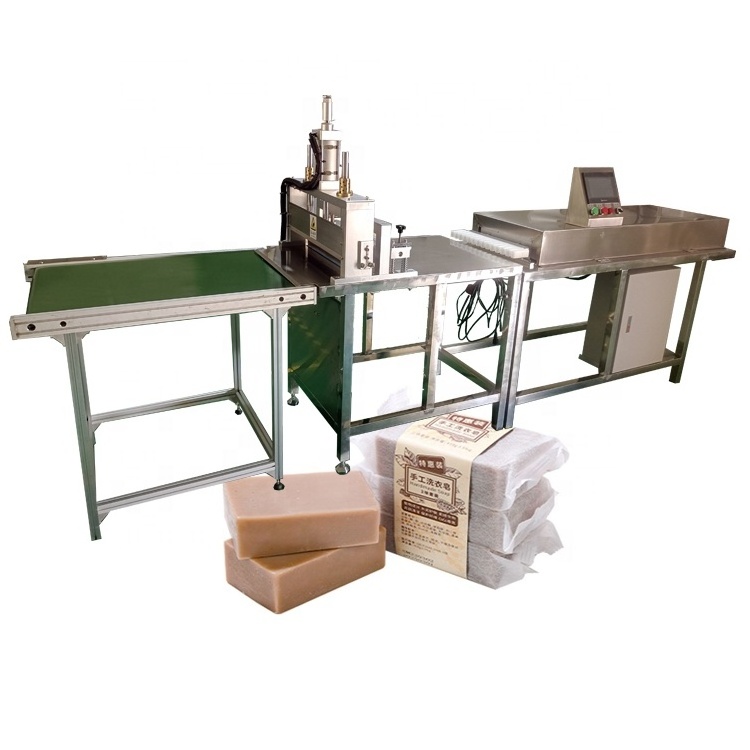

Machine Structure

Machine Features

1.Suitable for a variety of specification square, rectangular soap cutting.
2.Dimension can be adjust according to product size and working speed.
3.The machine is PLC control, touch screen adjustment parameters. The language is English and Chinese. Which is convenient for customer to operation.
4.Machine cutting thickness adjust is convenient, accurate size.
5.Soap weight error ≤±2g.

Machine pusher --- push the big raw soap block move forward to the cutting device postion.

Trimming blade--- this part is used to trim the raw soap big block surface, so that the final soap surface can be flat.

Black hand wheel--- this hand wheel is the trimming blade height adjuster, it can be adjust to get different trimming thickness according to customer needs.

Wire cutting device--- this part cut the trimmed soap block into several same size soap strip. then wait for the straight blade to do next step process.

Straight cutting blade--- this balde is the final cutting device to cut the long strip soap into soap bars one by one evenly, cut them into same size. The drive device all is servo drive, so the cutting size is exact same.

Machine Technical Specifications

Machine model	ASL-XZQK1
Power	1.2kw
Voltage	220v 50hz single phase
Speed	12soap bar /seconds
Capacity	180-300pieces per minutes
Weight	400kg
Dimension	40008001450 mm
Cutting block size	Max.: 500*600mm
Trim thickness	Can be adjust
Push driver	Servo drive
Machine material	304 stainless steel
