- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
DOK-6-B
-
Type:
-
Security Door Open Tool
-
Applications:
-
Vehicle extrication/Fire rescue/Disaster rescue when need door opening
-
Functions:
-
Open a door/expand/spread/lift/pry/impact
-
Power Units:
-
Hydraulic Hand Pump/Power Pack
-
Feature:
-
Multifunctional & portable
-
Dead-Below Hammer:
-
PU material; iron sand inside head, no rebound
-
Door Opener:
-
Extension length with lifting scope can enlarge the lifting height
Quick Details
-
Warranty:
-
1YEAR
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
STARYE
-
Model Number:
-
DOK-6-B
-
Type:
-
Security Door Open Tool
-
Applications:
-
Vehicle extrication/Fire rescue/Disaster rescue when need door opening
-
Functions:
-
Open a door/expand/spread/lift/pry/impact
-
Power Units:
-
Hydraulic Hand Pump/Power Pack
-
Feature:
-
Multifunctional & portable
-
Dead-Below Hammer:
-
PU material; iron sand inside head, no rebound
-
Door Opener:
-
Extension length with lifting scope can enlarge the lifting height
Product Description
Rescue Equipment Security Door Open Tool
1. Hydrauilc door open tool set is one of the most professional hydraulic rescue tool kit being used to open various doors in emergency situations, such as anti-terrorism, firefighting rescue, emergency break-in, traffic accident rescue and so on.
2. This DOK-6-B door open tool set includes 6 pieces powerful breaking tools: hydraulic door opener, hydraulic separator, hydraulic rebar cutter, hydraulic mini cutter used in confined space, Stanley crowbar & hand pump as power unit attached with hose already.
3. The door opener included in this door open tool set is special on its spiral body which can help enlarge the opening distance when breaking doors. All other tools inside are also designed properly to work together for the biggest opening performance.
Application
1. Fire fighting rescue;
2. Traffic accident rescue;
3. Anti-Terrorist operation and so on.
Features
1. 6 types of tools consist this door open tool set for the biggest break-in performance;
2. Only one hand pump can drive all hydraulic rescue equipment inside to save working space;
3. All tools inside this door open tool set are manufactured according to EN13204 standard with high quality;
4. 630bar high working pressure maintains the biggest opening or breaking capacity;
5. Noise Free: Operation simplicity ensures zero noise during working.
6. No spark during operation of this whole door open tool set, which means it is safe to use inside explosive environment.
7. Portable carry case of this door open tool set can not only be carried, but also being pulled on floor to save energy.
Product Specifications
|
HS-152/42 Hydraulic Spreader
|
|
|
|
Rated Working Pressure
|
63Mpa
|
|
|
Opening Distance
|
≥152mm
|
|
|
Spreading Force
|
42KN
|
|
|
Weight
|
≤3.3kg
|
|
|
Dimensions(LxWxH)
|
345 x 160 x 75mm
|
|
|
HRC-14/28-A Hydraulic Rebar Cutter
|
|
|
|
Rated Working Pressure
|
63Mpa
|
|
|
Opening Distance
|
≥28mm
|
|
|
Max. Cutting Capacity(Q235)
|
Φ14mm
|
|
|
Weight
|
≤3kg
|
|
|
Dimensions(LxWxH)
|
300 x 68 x 55mm
|
|
|
HRC-18/60-B Micro Quick Cutter
|
|
|
|
Rated Working Pressure
|
63Mpa
|
|
|
Opening Distance
|
≥60mm
|
|
|
Max. Cutting Capacity(Q235)
|
Φ18mm(circle metal)
|
|
|
Weight
|
≤2.8kg
|
|
|
Dimensions(LxWxH)
|
350 x 105 x 75mm
|
|
|
HD-50/180-B Hydraulic Door Opener
|
|
|
|
Rated Working Pressure
|
63Mpa
|
|
|
Closed Length
|
≤210mm
|
|
|
Opening Distance of Blades
|
120 mm
|
|
|
Separation Distance
|
230mm
|
|
|
Lifting Distance
|
300mm
|
|
|
Separation Force
|
50KN
|
|
|
Lifting Force
|
60KN
|
|
|
Weight
|
≤3.9kg
|
|
|
Dimensions(LxWxH)
|
210 x 135 x 75mm
|
|
|
HP-63/0.8-B Hydraulic Hand Pump
|
|
|
|
Rated Output Pressure
|
63Mpa
|
|
|
Pressure of Low-pressure Output
|
5-10Mpa
|
|
|
Low Pressure Flow
|
≥7.5ml / times
|
|
|
High Pressure Flow
|
≥0.83ml / times
|
|
|
Tank Volume of Hydraulic Oil
|
≥0.7L
|
|
|
Max. Force of Hand Bar
|
≤260N
|
|
|
Weight
|
≤3.2kg
|
|
|
Dimensions(LxWxH)
|
400 x 120 x 160mm
|
|
|
Crowbar
|
|
|
|
Length/Weight
|
457mm / 1.8kg
|
|
Product Actual Shooting
Product Details
Expanding or clamping the metal structure deformation and tearing bodywork;
Large cutting ability, can cut φ16mm circular shape steel, and Implementing to cut down the small guardrail operation, portable in mini size
Cut off vehicle parts, metal structure, heterogenic steel pipe, steel plate and
so on easily and quickly;
The Door Opener is designed to open security doors & many other types of
doors for emergency.
It is the hand pump which can drive Allive rescue tools with single coupling
for rescue operation

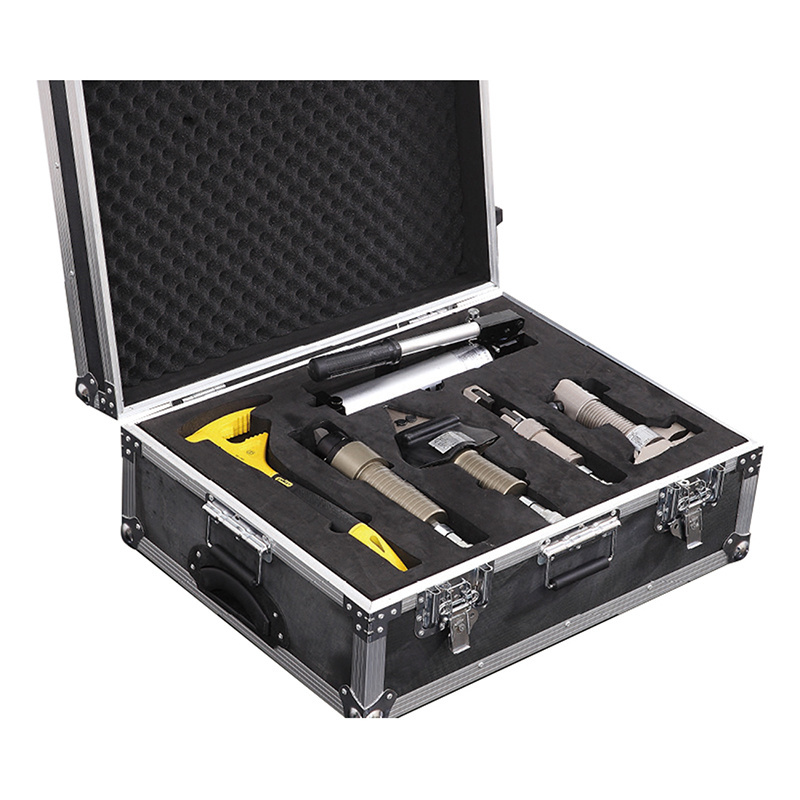

Customized module for the door breaking set, strong protection, easy to carry
