Quick Details
-
Brand Name:
-
NineGood
-
Model Number:
-
103
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
800PSI
-
Installation:
-
easy
-
Quality:
-
Superior
-
Package:
-
different
-
Warranty:
-
one year
-
Service:
-
sincere
-
Pressure value:
-
preset
-
Protection class:
-
IP00 or IP54
-
Fitting:
-
Welding of copper tube
-
Switch type:
-
SPST NC or SPST NO
-
Work life:
-
100,000cycles
-
Certification:
-
CE,CQC,RoHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NineGood
-
Model Number:
-
103
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
800PSI
-
Installation:
-
easy
-
Quality:
-
Superior
-
Package:
-
different
-
Warranty:
-
one year
-
Service:
-
sincere
-
Pressure value:
-
preset
-
Protection class:
-
IP00 or IP54
-
Fitting:
-
Welding of copper tube
-
Switch type:
-
SPST NC or SPST NO
-
Work life:
-
100,000cycles
-
Certification:
-
CE,CQC,RoHS

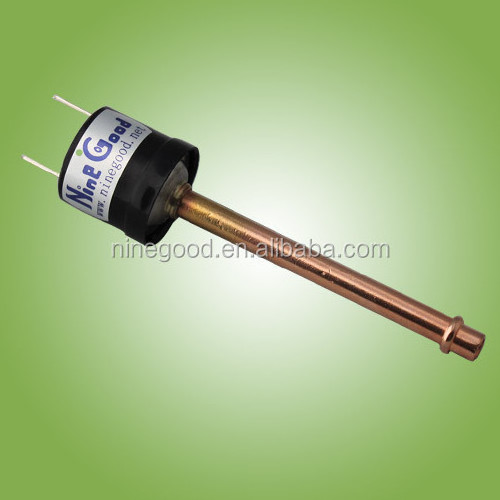

Welder copper refrigeration SPST air compressor pressure switch
Advantages:
1.professional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: Φ6X72 or Φ6X100 (Selectable), Welding of copper tube( Please see "Water-cooled welding process diagram" ).
3, Electrical connection: 6.35X0.8 Male terminals (Brass & Silver plating). .
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC; Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A .
5, Fluid media: R22, R134a, R407c, R410a, etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00 (No PVC jacket ); IP54 ( Equipped with PVC jacket ).
8, Ambient temperature : -20°C ~55 °C , Medium temperature : -30°C ~8 0°C.
9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Dimension Drawing:
