Quick Details
-
Weight (KG):
-
550 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Immay
-
Voltage:
-
380V/50HZ or customized
-
Dimension(L*W*H):
-
300*450*450CM
-
Power (kW):
-
7.5 kW
-
Applicable Industries:
-
shampoo industry, liquid detergent industry, Chemical industry, Cosmetic industry
-
Marketing Type:
-
New Product
-
Name:
-
Homogeneous mixer
-
Capacity:
-
200L - 5000L customization
-
Usage:
-
liquid mixing and emulsifying
-
Homogenizer speed:
-
0~3000 RPM
-
Open method:
-
Flexible half-lid openable
-
Mixing speed:
-
0~63RPM
-
Heating method:
-
Steam heating or electric heating or not heating
-
Control panel:
-
button control or PLC control option
Quick Details
-
Barrel Volume (L):
-
500
-
Max. Loading Volume (L):
-
500 L
-
Range of Spindle Speed(r.p.m):
-
10 - 3000 r.p.m
-
Weight (KG):
-
550 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Immay
-
Voltage:
-
380V/50HZ or customized
-
Dimension(L*W*H):
-
300*450*450CM
-
Power (kW):
-
7.5 kW
-
Applicable Industries:
-
shampoo industry, liquid detergent industry, Chemical industry, Cosmetic industry
-
Marketing Type:
-
New Product
-
Name:
-
Homogeneous mixer
-
Capacity:
-
200L - 5000L customization
-
Usage:
-
liquid mixing and emulsifying
-
Homogenizer speed:
-
0~3000 RPM
-
Open method:
-
Flexible half-lid openable
-
Mixing speed:
-
0~63RPM
-
Heating method:
-
Steam heating or electric heating or not heating
-
Control panel:
-
button control or PLC control option

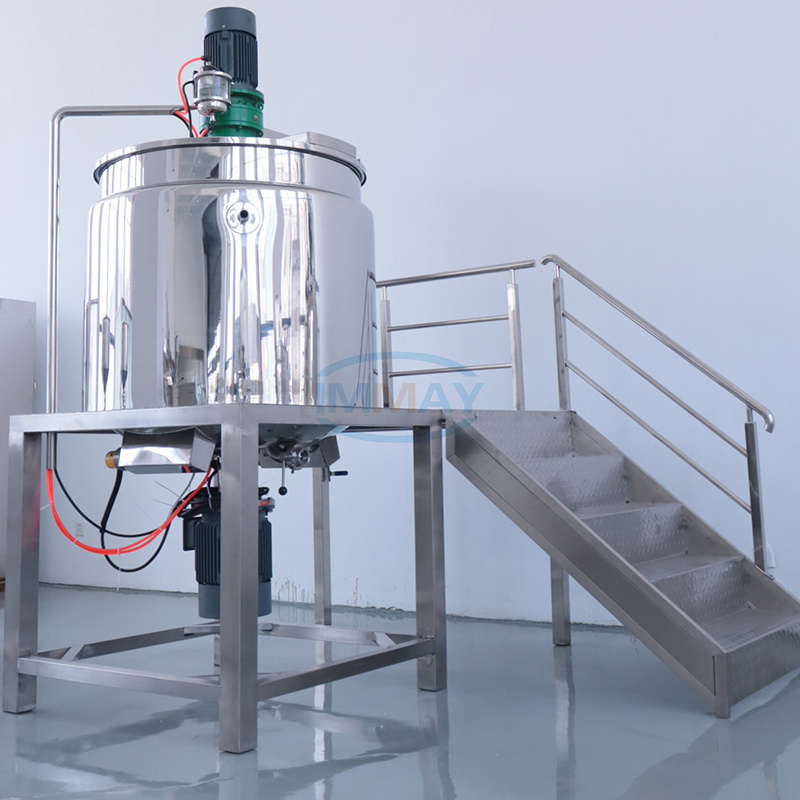

Hot sale 500-5000L stainless steel liquid fertilizer mixing tank high efficiency homogenizer mixer manufacturing machine
Usage
Blending tank is available for manufacturing liquid products(such as detergent , shampoo , shower gel , etc.) , it integrates mixing , homogenizing , heating , cooling , pump discharging finished products functions.
Performances and features
The all-round wall scraping mixing adopts the frequency converter for speed adjustment, so that high quality products of different processes according to customer requirements.
The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA, etc.during the liquid detergent production process so as to save energy consumption and shorten production period.
The liquid wash mixing tank body is welded by imported three-layer stainless steel plate.
The blending tank tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
Working Capacity |
Mixing |
Homogenizer |
Dimension (mm) |
Heating way |
|||||
Power
|
Speed
|
Power
|
Speed
|
Length (mm) |
Widi h(mm) |
Height (mm) |
Electric heating |
Steam heating |
|
200L |
1.5~2.2 |
0~63 |
2.2~4 |
0~3000 |
1800 |
1600 |
1800 |
12KW |
5 |
300L |
2.2~3 |
0~63 |
3~4 |
0~3000 |
2000 |
1700 |
2000 |
15KW |
5 |
500L |
3~4 |
0~63 |
4~5.5 |
0~3000 |
2200 |
2200 |
2350 |
18KW |
9 |
1000L |
4~5.5 |
0~63 |
5.5~7.5 |
0~3000 |
2500 |
3000 |
2800 |
36KW |
13 |
1500L |
4~5.5 |
0~63 |
7.5~11 |
0~3000 |
2650 |
3100 |
3300 |
36KW |
13 |
2000L |
7.5~11 |
0~63 |
11~15 |
0~3000 |
2900 |
3500 |
3550 |
48KW |
15 |
3000L |
11~15 |
0~63 |
15~18 |
0~3000 |
3100 |
3800 |
3800 |
72KW |
30 |
5000L |
11~15 |
0~63 |
18~22 |
0~3000 |
3500 |
4000 |
4200 |
96KW |
40 |
Q: Are you trading company or manufacturer ?
A: We are a manufacture with R&D, manufacturing, marketing and exporting, we have offered plenties liquid wash blending tank solution to multiple industries.
Q: Which information shall I offer before getting solution?
A: Which product will you produce?
B: How many liter per batch or per day do you request ?
C: Are there other more requests?
Q:Which machine should I choose?
A:It depends on product you make and the formula process, we will offer you tailor-made design.
Q: I am working on a new processing line that don't know much about what I need, how can you support?
A: We have supplied production line equipments to thousands clients in diverse industries within our decade experience, we will tailor-made you equipments that with fit your capacity request and optimize product performance.
Q:How can you control the quality and delivery?
A:Production strictly according to CE / ISO standards.
B:All our machines will be tested before packaging. wooden packaing is safe during shipping.
Q: What is your terms of payment ?
A: 30% deposit before production, 70% balance before delivery, L/C is acceptable as well.
Q: How long is your delivery time?
A: Generally it is 15-30 days, Depends on production schedule.
Born in Yangzhou, the origin place of automation equipment in China, Immay is specialized in R&D, manufacture and sales of cosmetic equipment, daily care products equipment , chemical equipment, food and beverage equipment, etc. .
As industry - leading manufacturer in cream & liquid process equipment , we developed a wide range of machines, which include RO reverse osmosis water treatment equipment, vacuum homogeniz er mixer , blending tank , storage tanks, filling machines, capping machines, packaging machines, and labeling machines etc..
The spirit of dedicated makes perfect is deeply rooted in Immay’s enterprise culture, We focus on professionalism, meticulous craftsmanship, and treat quality as the soul of the our company. We keep pace with the times, pioneer and innovate, keep up with the pace of Industry 4.0 intelligent manufacturing, continue to forge ahead with technological innovation, and continue to research, develop more advanced and better product, striving to support customers to increase production capacity, increase profits, and optimize formula effects through more efficient and intelligent equipment.
