Quick Details
-
Power:
-
12KW
-
Dimension(L*W*H):
-
15 Cubic Meter
-
Weight:
-
1200 KG
-
Machinery Capacity:
-
1BBL
-
Warranty of core components:
-
1 year
-
Name:
-
1 bbl electric brewing system
-
Material:
-
Stainless Steel 304/316
-
Thickness:
-
Inner 3mm External 2mm
-
Brewhouse:
-
1/2/3/4 Vessels
-
Heating method:
-
Steam / Electric / Gas
-
Cooling way:
-
Dimple Plate Cooling
-
Control system:
-
PID/PLC
-
Fermentation:
-
60/75°
-
Function:
-
Making Beer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NDL Craft
-
Voltage:
-
208V/380V 50HZ/60HZ
-
Power:
-
12KW
-
Dimension(L*W*H):
-
15 Cubic Meter
-
Weight:
-
1200 KG
-
Machinery Capacity:
-
1BBL
-
Warranty of core components:
-
1 year
-
Name:
-
1 bbl electric brewing system
-
Material:
-
Stainless Steel 304/316
-
Thickness:
-
Inner 3mm External 2mm
-
Brewhouse:
-
1/2/3/4 Vessels
-
Heating method:
-
Steam / Electric / Gas
-
Cooling way:
-
Dimple Plate Cooling
-
Control system:
-
PID/PLC
-
Fermentation:
-
60/75°
-
Function:
-
Making Beer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
1 barrel 2 barrel 3 barrel fermenter 1 bbl 2 bbl 3 bbl electric brewing system
Hot Sale 1BBL Brewery Equipment
1BBL brewhouse can be in various combination:
1. One vessel
2. Two vessels : Mash/lauter tank, Kettle/whirlpool tank;
Here we introduce the 1bbl brewery equipment bases on two vessels
1. 1BBL Beer Equipment Basic Configurations
|
Items |
Equipment |
Specification |
Quantity |
|
Malt miller |
Malt miller |
80kg/h |
1 |
|
Mash system |
Mash tun&lautering |
1BBL |
1 |
|
Brew kettle&whirlpool |
1BBL |
1 |
|
|
Hot liquid tank |
1BBL |
1 |
|
|
Plate heat exchanger |
2m 2 |
1 |
|
|
Wort oxygenator |
|
1 |
|
|
Pump |
3m ³ /h |
2 |
|
|
Working platform |
|
1 |
|
|
Fermentation system |
Fermenter |
1BBL |
6 |
|
Yeast adding tank |
2L |
1 |
|
|
Cooling system |
Glycol water tank |
300L |
1 |
|
Cooling compressor |
3HP |
2 |
|
|
Pump |
3m ³ /h |
1 |
|
|
CIP washing system |
Alkali tank |
50L |
1 |
|
Sterilization tank |
50L |
1 |
|
|
Pump |
3m ³ /h |
1 |
|
|
Control system |
Siemens, PLC control or DCS Semi-automatic control |
|
1 |
|
Spare parts |
All spare parts(fitting) |
||

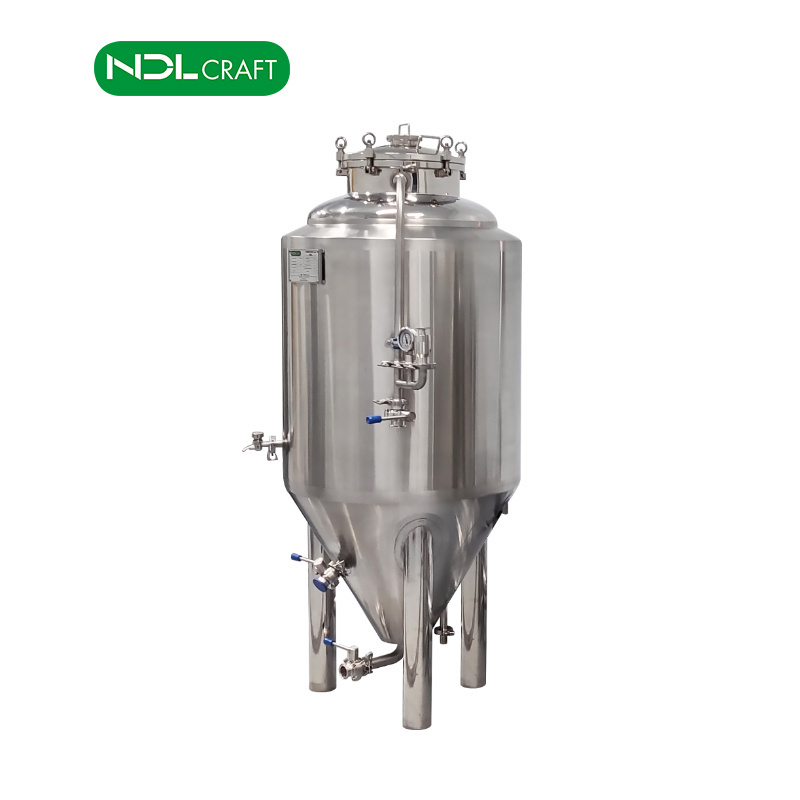

Hot Sale 1BBL Fermentation Tank
1. A serials of the fermentation tank models:
|
Fermentation tank series |
Volume in US Gallon |
Diameter |
Height |
|
50l Fermentation tank |
13US Gallon |
500mm |
1200mm |
|
60l Fermentation tank |
16US Gallon |
500mm |
1700mm |
|
1BBL Fermentation tank |
31US Gallon |
640mm |
1600mm |
2. Details of 1BBL fermentation tanks:
