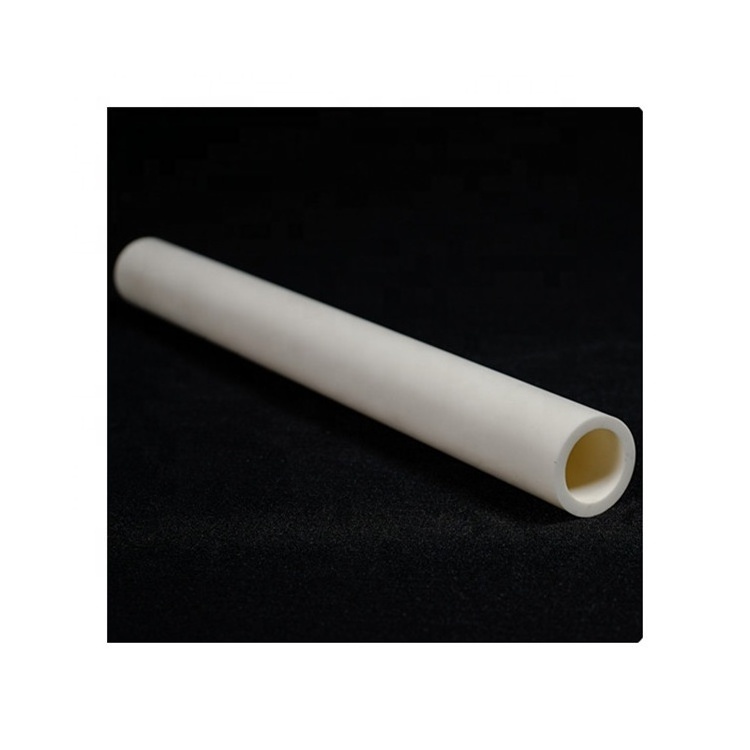

fine ceramic 99% alumina ceramic tube

FOB Reference Price: Get Latest Price

≥10 Pieces

US $0.2

≥10000 Pieces

US $0.19

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SX

Withstand voltage:: 15KV

Thermal conductivity:: 31.5W / (m * K)

Fuction:: fine ceramic alumina ceramic tube

Forming process:: Hot pressing

Outer diameter:: 1-150mm

Wall thinkness:: 0.25-15mm

Ceramic Type:: Porcelain

Feature:: Stocked

Certification:: SGS

Quick Details

Material:: Alumina Ceramic

Place of Origin:: Jiangsu, China

Model Number:: ceramic tube

Brand Name:: SX

Withstand voltage:: 15KV

Thermal conductivity:: 31.5W / (m * K)

Fuction:: fine ceramic alumina ceramic tube

Forming process:: Hot pressing

Outer diameter:: 1-150mm

Wall thinkness:: 0.25-15mm

Ceramic Type:: Porcelain

Feature:: Stocked

Certification:: SGS

Products Description

＞＞＞ click the above pictures to browse different type ceramics ＜＜＜

Applications and Advantages

Advantages:

1） . Strong acid resistance

2）. Strong insulation

3）. Strong adsorption

4）. High thermal insulation performance

5）. Chemical stability

6）. High compressive strength

Item	Unit	Zirconia ceramic	99% alumina ceramic	96% alumina ceramic	95% alumina ceramic	steatite ceramic	Mullite ceramic	cordierite ceramic
Bulk density	g/cm3	6	3.8	3.7	3.6	2.8	2.2	2.3
Water absorption	%	0	0	0	0	0	12	12
Thermal Conductivity	(W/m.k)	10	19-30	16-28	14-24	2-3	2-6	1.3-1.8
Resistance to thermal shock, Minimum	TKε	70	150	140	140	80	150	300
Withstand voltage, Minimum	KV	15	20	18	18	20	25	-
Flexural strength	Mpa	1000	300	280	240	120	120	30
Sinterring temperature	℃	1500	1670	1600	1600	1250	1250	1250
Maximum working temperature	℃	1200	1500	1200	1200	800	1000	1000

＞＞＞Click here to get free sample＜＜＜

Product Packaging

Company Introduction

Founded in 2010, Yixing Shenxing Technology Co., Ltd. is a comprehensive professional ceramic technology company integrating R & D, production and sales. The company is mainly engaged in the research and development of high-precision special ceramics, alumina ceramics, zirconia ceramics, resistance ceramics and other products. It has the characteristics of high wear resistance, high corrosion resistance, high temperature resistance, oxidation resistance, good insulation performance and stable performance. It is widely used in the fields of communication, electronics, electricity, automobile, chemical industry, machinery, petroleum equipment and new energy. Our strengths: 1. We have professional ceramic molding R & D team, mechanical technology team, ceramic sintering team, experienced equipment operators and professional quality inspectors; 2. We have dry powder pressing and mechanical dry powder forming production lines, dry bag static press, automatic hot pressing and forming machine, automatic high-precision sintering kiln, bell jar kiln and other equipment; 3. Our products are exported to more than 100 countries and regions around the world, such as Italy, the United States, Germany, Turkey, Japan and South Korea. We have established long-term cooperative relations with many foreign companies and have been highly praised by the majority of users. The company has always adhered to the development concept of "quality first, customer first" to build a modern environmental protection company, Committed to providing customers with precision ceramic products and after-sales service!

＞＞＞Click here for free samples＜＜＜

3D showroom

Production Flow

Certifications

Our Service

1. We support OEM and ODM;

2. We have a professional R&D team and technical support;

3. We provide real-time logistics update information;

4. We support 24-hour online service;

5. We support T / T, L / C payment；

6. We have a professional QC team to check the quality before delivery.

Client Feedback

FAQ

1. How can you get quotation?
Please kindly send me your drawing with technic requirement and demand quantity.
If you don't have the drawing, please kindly courier samples to us. we will quote our best price in 24 hours.
2. How can you get samples ?
We can supply free samples if we have them in stock. If we havn't produce the products, we can supply some free samples after getting tool fee. Please take note that the courier fee should be at destination.
3.What’s the lead-time for samples and batch orders?
It is 18days for supplying samples. It is around 25days for batch orders.
4.Can I visit you?
Sure. If you're a volume buyer and would like to visit our in-house products and production line, please contact us to make an appointment.
