Quick Details
-
Model Number:
-
XX006
-
Thickness:
-
2-350mm
-
Size:
-
can be customized according to your order
-
Feature:
-
Abrasion-Resistan
-
Density:
-
0.935g/cm
-
Impact intensity(cut edge):
-
No break
-
Breaking Enlongation:
-
350%
-
Heat deflection temperatur:
-
85℃
-
Fusing point:
-
136℃
-
Stain Formation:
-
Relatively resisting
-
water absorption:
-
<0.01
-
expansion coefficient:
-
1.5 10-4/℃
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINXING,pressed uhmwpe
-
Model Number:
-
XX006
-
Thickness:
-
2-350mm
-
Size:
-
can be customized according to your order
-
Feature:
-
Abrasion-Resistan
-
Density:
-
0.935g/cm
-
Impact intensity(cut edge):
-
No break
-
Breaking Enlongation:
-
350%
-
Heat deflection temperatur:
-
85℃
-
Fusing point:
-
136℃
-
Stain Formation:
-
Relatively resisting
-
water absorption:
-
<0.01
-
expansion coefficient:
-
1.5 10-4/℃
1. Wear ResistanceWear Resistance UHMW Liner PE 1000 Sheet, PEHD Board, Polyethylene plateCatalog
Natural virgin grade
Fender grade
Black anti static grade
Glass filled / Ceramic filled grade
Flame resistant grade
Green self lubricating grade
Natural high molecular grade PE 500
2.UHMWPE Advantages & Key Features:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800C
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable

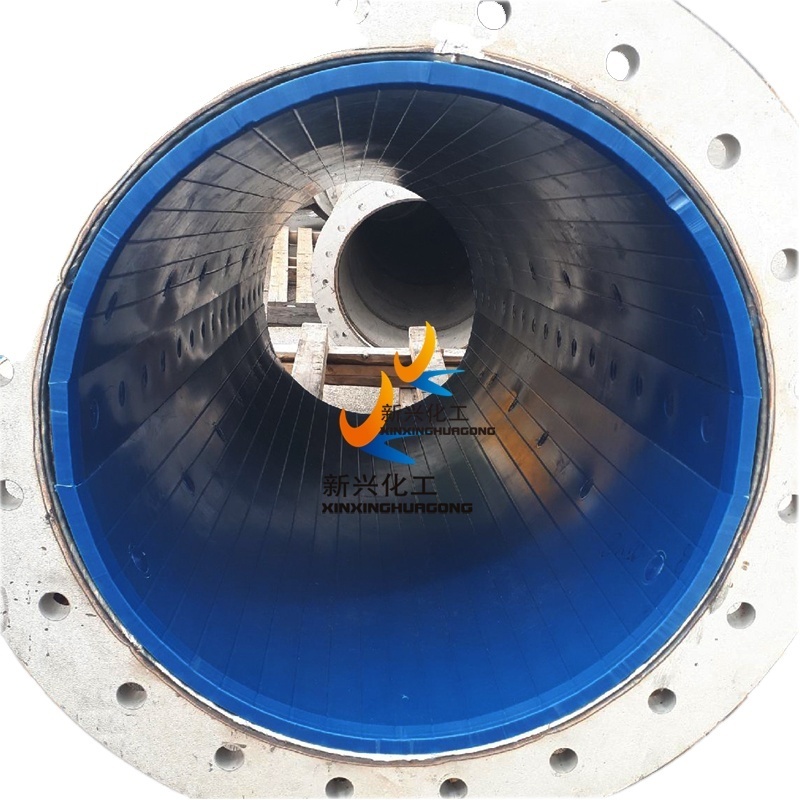

--Great liner material for industrial material handling applications
--Easy Reprocessed
|
variety |
application |
|
high abrasion-resistance |
storehouse wall,port machinery,miningmachinery,building machinery,chute,hopper. |
|
pure ultra-high sheet |
transportmachinery,foods,package,environmental protection,papermaking,ceramica. |
|
electrostatic-resistance sheet |
electrostatic protecting positions for mining in the pit,dock,and foods processing. |
|
burning-preventing sheet |
mning in the pit,mainly used in easily self-inflammation parts,such as coal storehouse. |
|
color sheet |
packaging,decorative material,board fender |
|
double-color sheet |
wear easily found and easily check. |
|
micro-hole sheet |
filter-sheet. |
Mould pressing Size:
(10-250)*1000*2000mm (10-250)*6000*2000mm
(10-250)*1040*3100mm (10-250)*3100*1500mm
(10-250)*1220*2440mm (10-250)*4600*2000mm
(10-250)*4800*1300mm (10-250)*4000*1200mm
(10-250 )*5100*1500mm (10-250)*1550*7150mm
And all the sizes could be cut as your request.
XINXING on what our customers demand and dedicate to produce satisfying prodct sand innovate new types products to our customers .
1 In processing of products, we strictly manager our workers to pay attention to every details, asking there is no any error in products.
2 We have strict Quality Control(QC) in order to make sure that all details of products meet customers’ requirement.
3 Before delivery, we will be responsible for package all products perfectly in order to make sure there is no anydamage of products in transportation.
4 In transportation, we will track the details of shipment and feedback to our customers timely and make sure our customers will receive the products on time.
5 After receiving products, if you have any question, we will try our best to serve you. And welcome to your more orders in the future.
Packaging
1. pallet with carton.
2. Plastic pallet with carton.
3. Wooden wooden pallet with wooden case.
4. According to customer requirements.
Delivery
1. Stock size 3-5 working days.
2. Custom size 8-15 working days.
Q:Is the size fixed?
A:No.we can meet your needs according to your acquirement. That is to say, we accept to customize.
Q: What is your MOQ of this item?
A: 500 kilograms.
Q: Is it all right to make customer's own brand name?
A: That’s all right to engrave your own brand name.
Q: What is your company's available production capacity?
A: Usually 9000 tonnes per year.
Q. Can you special order a product for me?
A. We are typically able to special order products for customers. OEM service .
