Quick Details
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
AC 380V 50HZ 3 phase
-
Dimension(L*W*H):
-
1700x1520x2100mm
-
Weight (KG):
-
4000
-
Power (kW):
-
11KW
-
Product name:
-
5-Axis CNC Tool Grinding Machine
-
Model:
-
TG560
-
Application:
-
Grinding Knife
-
Grinding tools software:
-
ANTISHI
-
Processing workpiece diameter:
-
200 mm
-
Max. processing workpiece length:
-
170mm
-
Max. processing workpiece groove depth:
-
20mm
-
Max. Workpiece weight:
-
10Kg
-
Grinding wheels(CBN/diamond):
-
50~200mm
-
Workable travel X axis/Y-axis:
-
X:460 / Y:400
Quick Details
-
Wheel Size(mm):
-
Depends on customer
-
Year:
-
2022
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
AC 380V 50HZ 3 phase
-
Dimension(L*W*H):
-
1700x1520x2100mm
-
Weight (KG):
-
4000
-
Power (kW):
-
11KW
-
Product name:
-
5-Axis CNC Tool Grinding Machine
-
Model:
-
TG560
-
Application:
-
Grinding Knife
-
Grinding tools software:
-
ANTISHI
-
Processing workpiece diameter:
-
200 mm
-
Max. processing workpiece length:
-
170mm
-
Max. processing workpiece groove depth:
-
20mm
-
Max. Workpiece weight:
-
10Kg
-
Grinding wheels(CBN/diamond):
-
50~200mm
-
Workable travel X axis/Y-axis:
-
X:460 / Y:400
Product Description
Technical parameter

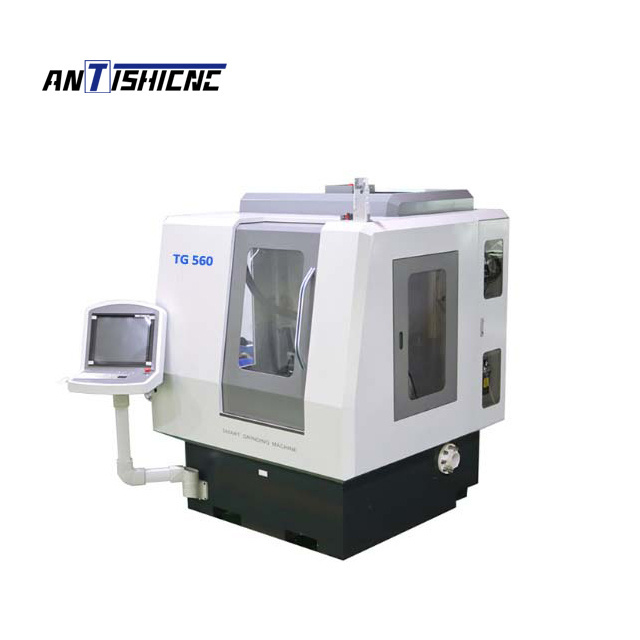

5-AXIS CNC GRINDER
TG 560 5-axis CNC tool grinder is a newly developed by ANTISHI Company, which is a cost effective tool grinding center. It could produce and sharpen all kinds of milling cutters, drilling and forming tools .
With the beautiful outlook and friendly human-machine interface,the machine adopts the natural marble components to ensure tits stability during the working.
|
Model No
|
TG-560
|
|
Grinding range
|
Φ3-20mm
|
|
CNC system
|
SYNTEC 210MA-5E
|
|
Grinding tools software
|
ANTISHI
|
|
Processing workpiece diameter
|
200 mm
|
|
Max. processing workpiece length
|
170mm
|
|
Max. processing workpiece groove depth
|
20mm
|
|
Max. Workpiece weight
|
10Kg
|
|
Grinding head Max. Power(electric spindle)
|
11KW
|
|
Grinding wheels(CBN/diamond)
|
Φ50～Φ200mm
|
|
Grinding head spindle rotation speed(frequency regulation)
|
1000-8000rpm
|
|
Grinding head vertical travel(Z axis)
|
360(-100-220)mm
|
|
Workable travel X axis/Y-axis
|
X：460 / Y：400
|
|
Linear axis quick travel speed
|
15m/min
|
|
Workpiece spindle rotation speed（A-axis）
|
500rpm
|
|
Rotation range of A-axis
|
∞
|
|
A axis spindle hole taper
|
ISO50
|
|
Pneumatic clamping range
|
3~20mm
|
|
SCHUNK collects clamping range (optional)
|
3~32mm
|
|
Grinding head swing Max rotation speed(C-axis)
|
30rpm
|
|
Rotation range of C-axis
|
325°（+230°~-95°）
|
|
Workpiece spindle center height
|
150mm
|
|
Workpiece spindle radial runout
|
≤0.005mm
|
|
Grinding head spindle radial runout
|
≤0.005mm
|
|
Air cylinder clamping force adjusting range
|
500-580kg
|
|
Linear-axis resolving power
|
0.00lmm
|
|
Rotation axis resolving power
|
0.00l°
|
|
Cooling motor power
|
3P
|
|
Cooling motor capacity
|
200L
|
|
Voltage
|
AC 380V 50HZ 3 phase
|
|
Total power
|
15KW
|
|
Machine size
|
1700×1520×2100mm
|
|
Machine weight
|
4T
|
