Quick Details
-
Autonomy:
-
70 Hours
-
Visibility:
-
3NM
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Doublewise
-
Solar Panel:
-
1.5Wp
-
Autonomy:
-
70 Hours
-
Visibility:
-
3NM

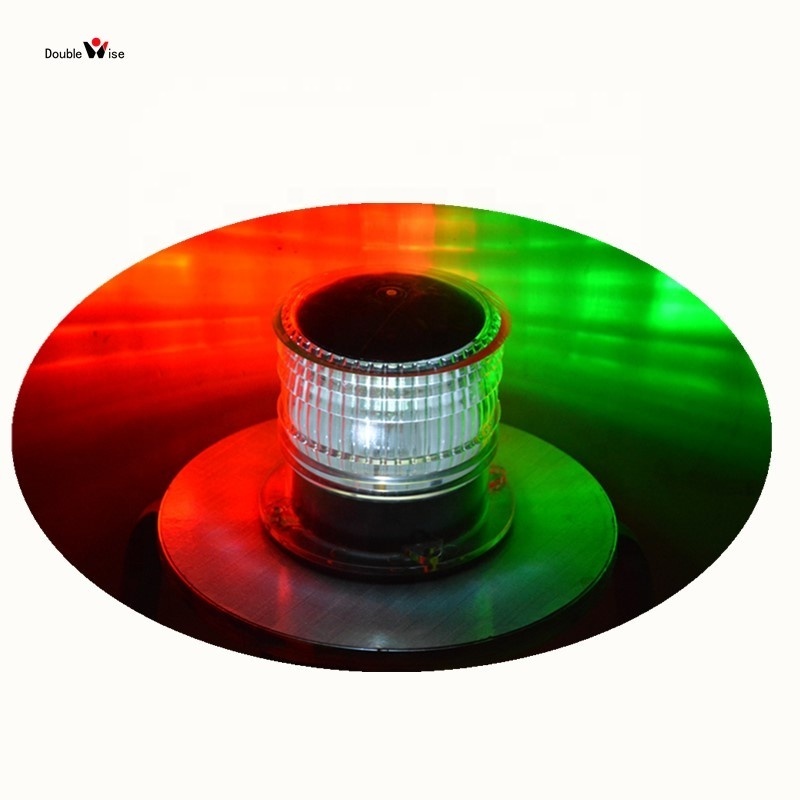

Tri-color Marine Navigation Signal Lighting Solar Powered Led Boat Light
DWS301/TC is a solar marine lantern with three colors (112.5° Red + 112.5°Green + 135°White = 360°) specially designed for the safety of small boat navigation such as yachts and fishing boats.Its function complies with COLREGS(1972) and equals to the combination of a port light,a starboard light and a stern light.It has the characteristics of self-contained solar, durable ,anti-UV and easy-installation.
Features and Benefits
Steady-on and its visibility: 2~3NM
Manufactured to ISO9001:2015 QAS and certified CE.
|
|
SPECIFICATIONS
|
|
|
|
|||
|
Light Output
|
Steady-on, 360° =White 135°+ Red 112.5°+ Green 112.5°
|
|
|
|
|||
|
Intensity
|
White 15cd/Red 12cd/Green 14cd
|
|
|
|
|||
|
Visibility
|
2~3NM
|
|
|
|
|||
|
Minimum Autonomy
|
140 Hours
|
|
|
|
|||
|
Latitude Range
|
40°S to 40°N
|
|
|
|
|||
|
Solar panel
|
Mono-crystalline；Maximum Power 1.5Wp；Efficiency 20%
|
|
|
|
|||
|
Battery
|
Ni-Mh , replaceable；4.8Ah/4.8V
|
|
|
|
|||
|
Lens Material
|
Polycarbonate
|
|
|
|
|||
|
Mounting Option
|
4 bolts or Magnetic base
|
|
|
|
|||
|
Weight / Waterproof
|
0.9kg / IP67
|
|
|
|
|||
|
Temperature Range
|
-40℃ to +80℃
|
|
|
|
|||
|
QAS
|
ISO 9001:2015 ; CE
|
|
|
|
|||
Yacht
Dimension Drawings
The Installation Drawing
Fishing Boat
The solar tri-color light is specially designed for the navigation safety of small boats such yachts and fishing boats.In order to install easily,this marine navigation lantern combines the function of the port light(112.5°Red),the starboard light (112.5°Green)and the stern light(135°White).
2. Can this lantern easily be turned off when it isn't used for a long period?
Yes,you can easily turn off this lantern by unplugging the Ni-Mh battery wire. We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.
3.Is there a adapter which can adapt to poles in different size ?
Yes,there is the installing adapter FlangeBase as follows.
Packing
The package of DWS301TC is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
