Quick Details
-
Model Number:
-
KDP60
-
Place of Origin:
-
Jiangsu, China
-
Outlet Size:
-
6''
-
Power:
-
8.5KW
-

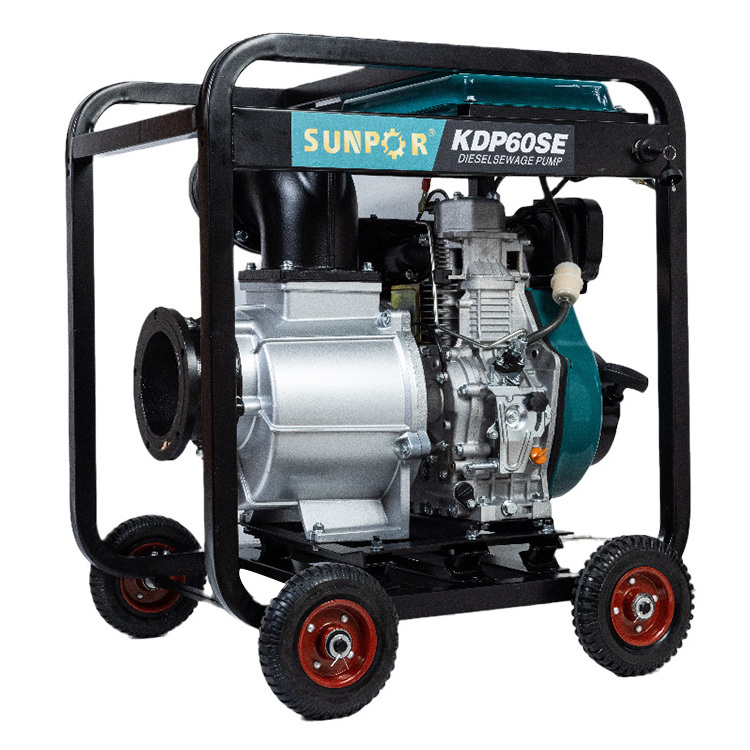

Product name:
-
Diesel Water Pump
-
Engine Model:
-
SP192F
-
Discharger Port Diameter(inch):
-
6"
-
Scution Port Diameter(mm):
-
150
-
Max.Discharge Capacity(m3/h):
-
150
-
Max.Head Lift(m):
-
20
-
Self-Priming Time(s/4m):
-
180
-
Max.suction head(m):
-
8
-
Dry Weight:
-
93kg
-
Continuous Working Period(h):
-
2
Quick Details
-
Application:
-
Family Homes, Irrigation and Agriculture, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control
-
Pressure:
-
Other
-
Brand Name:
-
Sunpor
-
Model Number:
-
KDP60
-
Place of Origin:
-
Jiangsu, China
-
Outlet Size:
-
6''
-
Power:
-
8.5KW
-
Product name:
-
Diesel Water Pump
-
Engine Model:
-
SP192F
-
Discharger Port Diameter(inch):
-
6"
-
Scution Port Diameter(mm):
-
150
-
Max.Discharge Capacity(m3/h):
-
150
-
Max.Head Lift(m):
-
20
-
Self-Priming Time(s/4m):
-
180
-
Max.suction head(m):
-
8
-
Dry Weight:
-
93kg
-
Continuous Working Period(h):
-
2
Product Description
| Diesel Water Pump | ||||
| Model | KDP20 | KDP30 | KDP40 | |
| Scution/Discharger Port Diameter | mm(in) | 50(2") | 80(3") | 100(4") |
| Max.Discharge Capacity | m3/h | 36 | 50 | 96 |
| Max.Head Lift | m | 25 | 26 | 22 |
| Self-Priming Time | s/4m | 80 | 120 | 180 |
| Max.suction head | m | 8 | 8 | 8 |
| Rotation speed | r/min | 3600 | 3600 | 3600 |
| Noise Level | dB(A)/7m) | 85 | 85 | 85 |
| Overall Dimension | mm | 500X420X530 | 570X465X560 | 660X480X610 |
| Dry Weight | kg | 37 | 45 | 62 |
| Engine Model | SP170F | SP178F | SP186F | |
| Rate Power | KW | 2.8 | 4 | 6.3 |
| Fuel Consumption | g/kw.h | 288 | 285 | 281 |
| Displacement | cm3 | 211 | 296 | 418 |
| Start system | Recoil/Electric | Recoil/Electric | Recoil/Electric | |
| Fuel Tank capacity | L | 2.5 | 3.5 | 5.5 |
| Continuous working period | H | 2.6 | 2.6 | 2.6 |
