Quick Details
-
Model Number:
-
3/4"-6"
-
Material:
-
EPDM
-
Color:
-
Requirements
-
Application:
-
Industrial
-
Length:
-
60m
-
Working pressure:
-
10bar
-
Temperature:
-
-40C ~ +120C
-
Keywords:
-
Multipurpose Rubber Hose
-
MOQ:
-
1m
-
Certification:
-
ISO9001:2008 MSHA
-
Characteristics:
-
Chemical Resistan
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
PROLEADER
-
Model Number:
-
3/4"-6"
-
Material:
-
EPDM
-
Color:
-
Requirements
-
Application:
-
Industrial
-
Length:
-
60m
-
Working pressure:
-
10bar
-
Temperature:
-
-40C ~ +120C
-
Keywords:
-
Multipurpose Rubber Hose
-
MOQ:
-
1m
-
Certification:
-
ISO9001:2008 MSHA
-
Characteristics:
-
Chemical Resistan

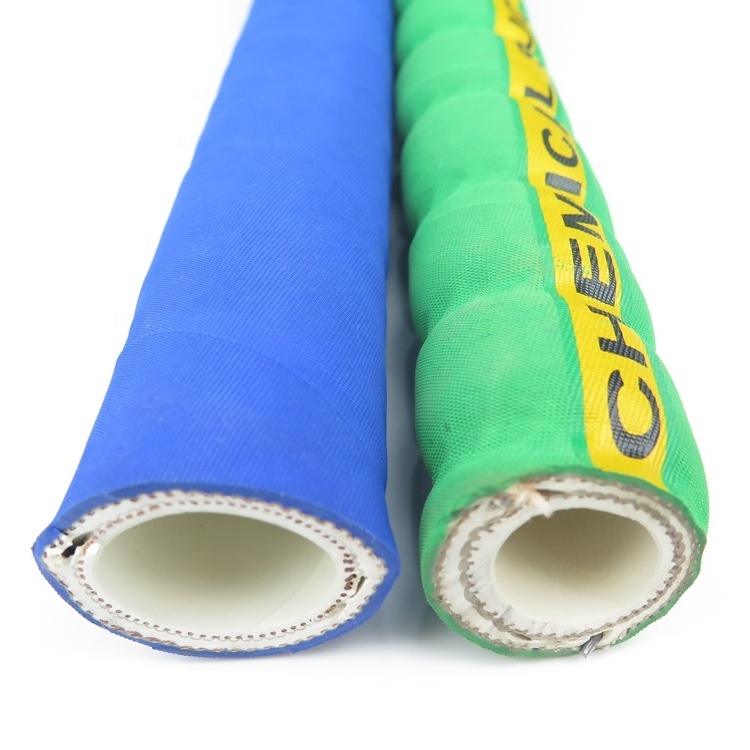

10Bar Anti Static UHMWPE Flexible Delivery Chemical Industrial Suction and Discharge Rubber Hose
Barrier:
UPE;
Tube:
EPDM;
Reinforcement:
High tensile textile cord with helix steel wire;
Cover:
EPDM
Application:
Suitable for transporting chemical solvents and corrosive liquids with a concentration of 98%
Temperature Range:
-40°C ~+120°C;
Color:
Blue,green
10Bar Suction & Discharge Multifunctional Chemical Hose
| SIZE I.D | O.D | W.P | B.P | B.R | L | W.T | ||||
| dash | inch | mm | mm | bar | psi | bar | psi | mm | meter | kg/m |
| -12 | 3/4" | 19 | 31.6 | 10 | 150 | 30 | 450 | 114 | 40 | 0.77 |
| -16 | 1" | 25 | 37.6 | 10 | 150 | 30 | 450 | 150 | 40 | 0.95 |
| -20 | 1.1/4" | 32 | 45 | 10 | 150 | 30 | 450 | 192 | 40 | 1.2 |
| -24 | 1.1/2" | 38 | 51.6 | 10 | 150 | 30 | 450 | 228 | 40 | 1.49 |
| -29 | 1.3/4" | 45 | 58.6 | 10 | 150 | 30 | 450 | 270 | 40 | 1.72 |
| -32 | 2" | 51 | 64.6 | 10 | 150 | 30 | 450 | 306 | 40 | 1.92 |
| -34 | 2.5/16" | 57 | 71.6 | 10 | 150 | 30 | 450 | 342 | 40 | 2.25 |
| -40 | 2.1/2" | 64 | 78.6 | 10 | 150 | 30 | 450 | 384 | 40 | 2.49 |
| -48 | 3" | 76 | 91 | 10 | 150 | 30 | 450 | 456 | 40 | 3.01 |
| -64 | 4" | 102 | 119.4 | 10 | 150 | 30 | 450 | 612 | 40 | 4.95 |
| -96 | 6" | 152 | 171.8 | 10 | 150 | 30 | 450 | 912 | 40 | 8.02 |
