Quick Details
-
Certificates:
-
CCS
-
Use For:
-
75-20M Ship
-
Center Frequency:
-
160HZ
-
sound pressure level:
-
138dB
-
Audibility(NM):
-
1.5
-
Voltage:
-
AC220V AC110V DC24V
-
pressure PN (Mpa):
-
1.0
-
Work System:
-
Gap
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
BOCHI
-
Product:
-
Marine Horn
-
Certificates:
-
CCS
-
Use For:
-
75-20M Ship
-
Center Frequency:
-
160HZ
-
sound pressure level:
-
138dB
-
Audibility(NM):
-
1.5
-
Voltage:
-
AC220V AC110V DC24V
-
pressure PN (Mpa):
-
1.0
-
Work System:
-
Gap

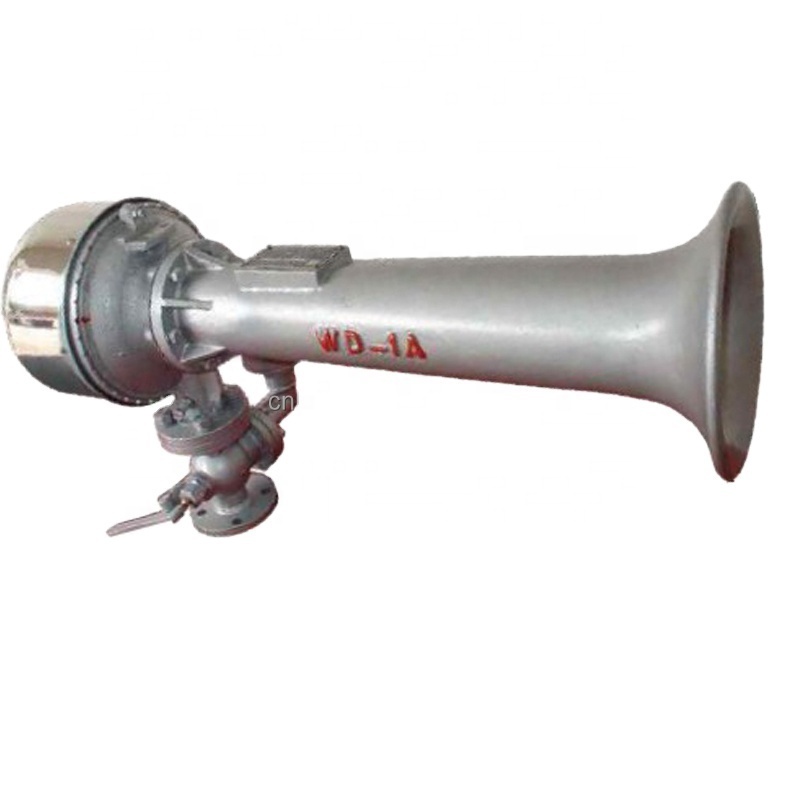

Electronically Controlled Marine Air Horn For 75-200M Ship
1.The product is suitable for medium and large ship.
2. With waterproof button
3.Widely used in water all modes of transport, port and other places.
4. Can be used to manually control the cable or the power button to pronounce whistle
Parameters
|
Model |
BMMEENPF002 |
|
Type |
WD-2 type |
|
Solenoid valve rated voltage(AC / DC) |
AC 220 V AC 110 V DC 24 V |
|
Solenoid valve power consumption(W) |
45 |
|
DN / DN / (mm) |
25 |
|
Rated pressure PN (Mpa) |
1.0 |
|
Audibility( NM) |
1.5 |
|
1/ 3 octave band sound pressure level(dB) |
≥138 |
|
Center Frequency (Hz) |
160 |
|
Work system |
Gap |
|
Consumption(M3 / s) |
≤8.3×10 -3 |
|
Heater supply voltage(DC or AC) |
220 110 |
|
Heater power consumption(W) |
< 250 |
