Quick Details
-
Dimension(L*W*H):
-
3*2*3.2M
-
Year:
-
2020
-
Power (kW):
-
10 kW
-
Weight (KG):
-
1300 KG
-
Function:
-
Full Automatic Tire Pyrolysis Oil Recycling Plant With CE Approved
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Pumping Speed:
-
70L/S-1200L/S
-
Power:
-
Electric
-
Structure:
-
Multistage Pump
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Vacuum Pump
-
Application:
-
Full Automatic Continuous Waste Tyre Pyrolysis Plant
-
Usage:
-
Full Automatic Continuous Waste Tyre Pyrolysis Plant
-
Power(W):
-
10KW
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
YUNENG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3*2*3.2M
-
Year:
-
2020
-
Power (kW):
-
10 kW
-
Weight (KG):
-
1300 KG
-
Function:
-
Full Automatic Tire Pyrolysis Oil Recycling Plant With CE Approved
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Pumping Speed:
-
70L/S-1200L/S
-
Power:
-
Electric
-
Structure:
-
Multistage Pump
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Vacuum Pump
-
Application:
-
Full Automatic Continuous Waste Tyre Pyrolysis Plant
-
Usage:
-
Full Automatic Continuous Waste Tyre Pyrolysis Plant
-
Power(W):
-
10KW
-
Certification:
-
CE ISO

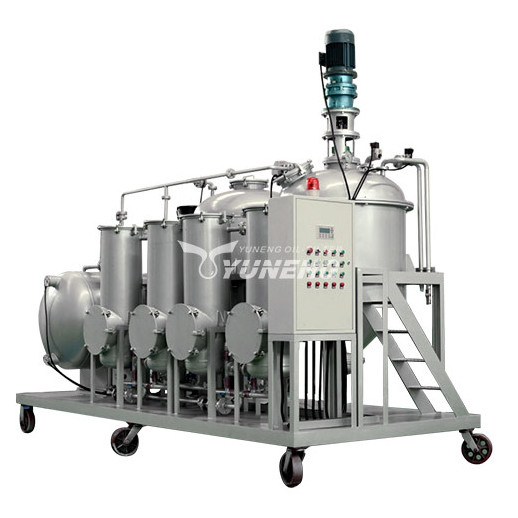

Full Automatic Tire Pyrolysis Oil Recycling Plant With CE Approved
Full Automatic Tire Pyrolysis Oil Recycling Plant With CE Approved can effectively remove particles, colloidal matter, acid and odour from tire oil by acid-treatment and filtration. Finally you can get oil with clean and transparent color and qualified smell to improve its economic value.
Manufacturer No Pollution Waste Tire Oil Refining Machine has high recycling rate, low costs of energy consumption, It is suitable for purification and deodorization of tire oil.
Product Feature
1) It combines physical and chemical method to remove the tiny impurities and colloidal substance in the tire oil.
2) We use special sand filtration technology to remove impurities and odour quickly, to restore color of used tire oil and improve quality
3) Interlocked electrical control system is safe, reliable and easy to operate.
4) There is automatic filling system which can fill the tire oil into tank automatically to save the human power.
5) The used tire oil cleaning machine occupies small area with novel structure and reasonable layout.
6) Obvious and direct effect from low treatment cost.
Main Structure
1. Filling system ( oil and chemicals)
2. Blending process system (chemical reaction and physical absorption)
3. Filtration process system
4. control system
5. vacuum system
Technical Parameter
| Index | Unit | YNZSY-LTY250 | YNZSY-LTY500 | YNZSY-LTY1000 | YNZSY-LTY1500 | YNZSY-LTY2000 |
| Treatment capacity | L/H | 250 | 500 | 1000 | 1500 | 2000 |
| Loading capacity | Liters | 250 | 500 | 1000 | 1500 | 2000 |
| Recovery | % | 75-90 | ||||
| Working pressure | MPa | ≤0.4 | ||||
| Noise | dB(A) | ≤70 | ||||
| Power | KW | 10 | 13 | 13 | 15 | 15 |
| Dim. | m | 3*3*3.2 | 3.5*2*3.2 | 4.7*2*3.2 | 5*2*3.2 | 6*2*3.2 |
| Weight | Kg | 800 | 1300 | 1500 | 1700 | 2000 |
