This
Multi-parameter Patient Monitor
is widely used in hospitals, physician offices, clinical settings, assisted living facilities and patient homes.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Minttihealth
-
Model Number:
-
Vision
-
Type:
-
Pathological Analysis Equipments
-
Product name:
-
Mintti Vision Multifunctional Health Tracker
-
Power Voltage:
-
DC3.7v
-
Supply voltage:
-
5V±0.25V
-
Size:
-
70*70*18.4mm
-
Weight:
-
70g
-
Working frequency:
-
2.4000GHz-2.4835GHz
-
Battery capacity:
-
400mAh
-
Barometric pressure:
-
70kPa-106Kpa
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
Minttihealth
-
Model Number:
-
Vision
-
Type:
-
Pathological Analysis Equipments
-
Product name:
-
Mintti Vision Multifunctional Health Tracker
-
Power Voltage:
-
DC3.7v
-
Supply voltage:
-
5V±0.25V
-
Size:
-
70*70*18.4mm
-
Weight:
-
70g
-
Working frequency:
-
2.4000GHz-2.4835GHz
-
Battery capacity:
-
400mAh
-
Barometric pressure:
-
70kPa-106Kpa
Product Description
Where can it be used in?
The Mintti Vision has multiple functions
of measuring heart rate, body temperature, blood pressure and blood oxygen. The monitor works with your mobile device to test, track and share data.
The Mintti Vision intended for use in
measuring heart rate, blood pressure
body temperature and blood oxygen
at home or long-term monitoring of
the hypertensives, fever patients and
anoxic patients.
According to the protection of the
risk of electric shock, this product
is classified as class-2 BF type
equipment.
What we offer?
With this portable smart health tracker patient monitor, to manage your health condition at anytime, and anywhere!
Blood Pressure
Mintti Vision helps users to measure their own blood pressure conveniently with our innovative and detachable cuff.
Heart Rate
Mintti Vision allows users to keep track of their heart
rate,
which provides important information for people
to monitor
their
health. Stay connected with your cardiac
health by the Mintti Vision.
Blood Oxygen
We design the sensor on the top of the device so that to make users measure their blood oxygen with ease.
Repiration Rate
Mintti Vision could record the
respiration rate.
Blood Glucose
With the blood glucose function, client can do it at home easily.
ECG Function
With ECG Sensor, Mintti Vision help users to measure the ECG data.
Temperature Measurement
With an IR sensor on the side of our device, Mintti Vision helps users to measure their body temperature in seconds.

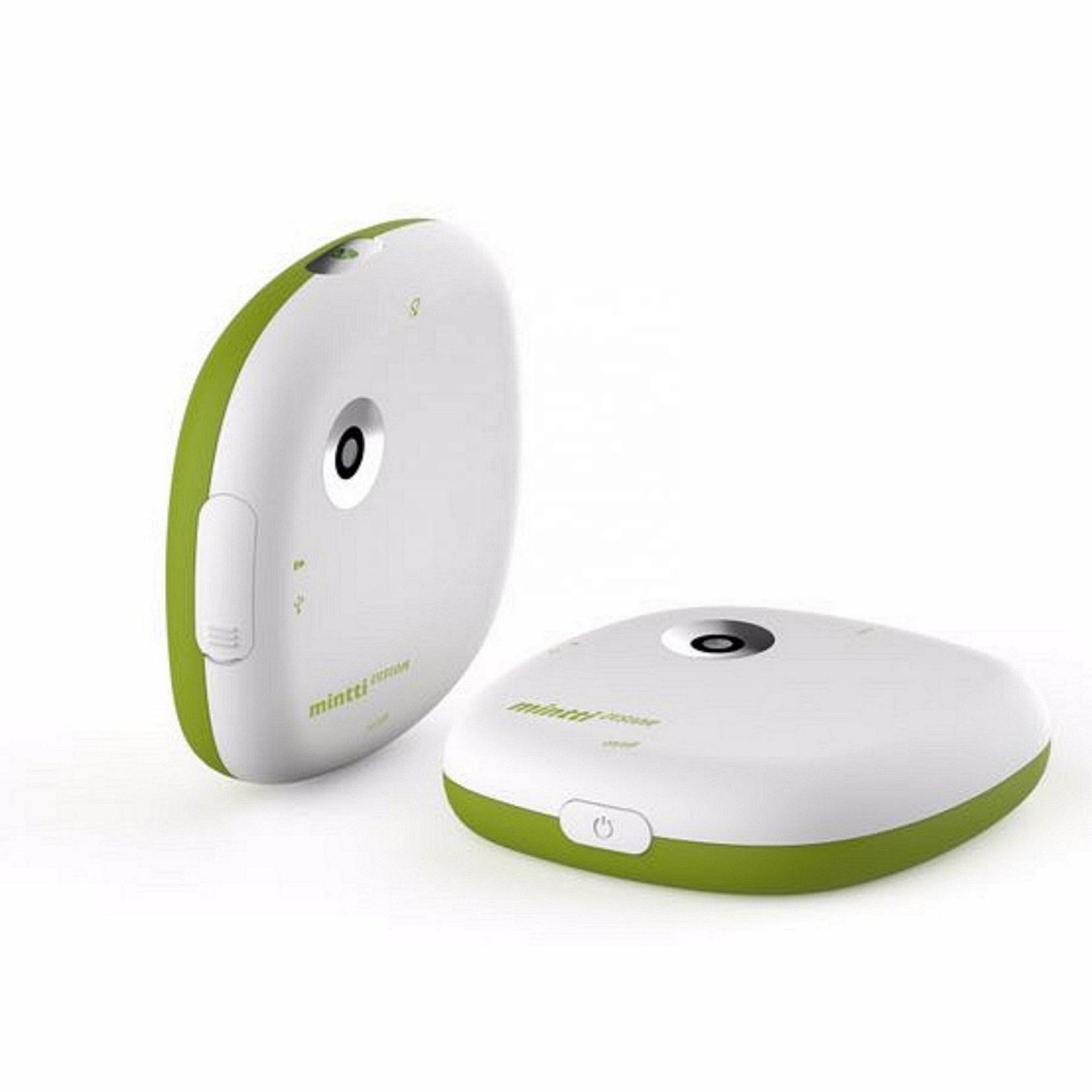

Introduction of Mintti Vision
|
Model:
|
Mintti Vision
|
|
|
Power voltage:
|
DC3.7V
|
|
|
Size:
|
70mm*70mm*18.4mm
|
|
|
Weight:
|
Approximately 70g
|
|
|
Wireless communication:
|
Blue tooth 4.0
|
|
|
Working frequency:
|
2.4000GHz-2.4835GHz
|
|
|
Blood pressure/ heart rate
|
|
|
|
Measuring method:
|
Oscillometric method
|
|
|
Cuff perimeter:
|
22-35cm
|
|
|
Measuring range:
|
Blood pressure: 0-300mmHg
Systolic pressure: 60-260mmHg
Diastolic pressure: 40-199mmHg
|
|
|
Heart Rate:
|
40-180bpm
|
|
|
Measuring Rate:
|
Blood pressure ±3 mmHg
Heart rate ±5% |
|
|
Blood Oxygen
|
|
|
|
Measuring method:
|
Reflective
|
|
|
Method measuring range:
|
90%-99%
|
|
|
Measuring error
|
+/- 2%
|
|
|
Glucose measurement
|
|
|
|
Measurement range:
|
1.1mmol/L~33.3mmol/L
|
|
|
Measurement time:
|
5S±1S
|
|
|
Test system repeatability
|
When the sample concentration < 5.5mmol/L(100mg/dL),
the test imprecision will be showed by standard deviation, SD<0.42mmol/L(<7.7mg/dL);
When the sample concentration≥5.5mmol/L(≥100mg/dL),
the test imprecision will be showed by variable coefficient,
CV<7.5%.
|
|
|
Temperature measurement
|
|
|
|
Measuring method:
|
Infra-red
|
|
|
Measuring part:
|
Forehead
|
|
|
Measuring range:
|
32 -42 ℃
|
|
|
Measuring error:
|
36-39℃ +- 0.2℃ >39℃ or <36℃ +- 0.3℃
|
|
|
ECG Measurement
|
|
|
|
Measurement mode:
|
Single Lead
|
|
|
Input impedance:
|
>10MΩ
|
|
|
Input circuit current:
|
<0.1µA
|
|
|
Calibration voltage:
|
1mV +-0.05mV
|
|
|
Sensitivity tolerance:
|
<10%
|
|
|
50Hz interference suppression filter:
|
>20dB
|
|
|
Maximum input range:
|
+/- 4.7mV
|
|
|
Polarization resistance voltage:
|
+/-300mV, Amplitude variation <10%
|
|
|
Frequency response:
|
0.5-40Hz
|
|
|
Overshoot:
|
Not more than 20%
|
|
|
Operating Environment
|
|
|
|
Environment temperature:
|
5~40℃
|
|
|
Relative humidity:
|
15%~93%
|
|
|
Barometric pressure:
|
70kPa~106kPa
|
|
|
Supply voltage:
|
50V±0.25V
|
|
|
Battery capacity:
|
400mAH
|
|
APP
Blood Pres
su
re/Heart Rate/SPO2/Blood Glucose/Temperature/ECG
Packing & Delivery
|
1pc
|
Mintti Vision Health Monitor
|
|
1pc
|
Blood Pressure Cuff
|
|
1pc
|
English Manual
|
|
Colorbox Size
|
135x65x190mm
|
|
Weight
|
0.48kgs
|
|
OEM Packing box
|
Accepted
|
Why Choose Us
What do Mintti Customers Say?
Minttihealth's Team and Exhibition
BRAND STORY
One of the founders of Minttihealth has more than 20 years of working experience in medical equipment and health solution. As a provincial agent in China of both Philips Healthcare and Siemens Medical, and as an executive partner of several hospital constructions in Africa, he sensed a great role the advanced medical equipment plays in improving the quality of life and people's unremitting pursuit of health. The rapid development of internet technology and the wide application of artificial intelligence, enable more people to enjoy unimaginable medical services than in the past. "The world is flat", "A healthy world is reachable", the founders of Minttihealth came together in hopes of using modern technologies to bring a cooler and healthier world into reality.
OUR TEAM
Minttihealth is proud of its excellent team. Most of whom are scientists from the Chinese Academy of Sciences, and are leaders in their respected fields (such as sensors, acoustic signal processing, electro-physiological signal processing, intelligent network platform construction and algorithm). Some comes from intelligent electronic products design and manufacturing industries, and are able to turn blueprints into reality. While others are from top medical equipment companies in the world, who have a deep understanding of the market.
FAQ
1.How long will the All-in-one Health Monitor last on a full charge?
-- Around 20 days' standby time, and 200-300 test times for blood pressure, oximetry, etc., and 2000-3000 times for body
temperature and ECG.
2.Is the battery rechargeable? If so, does it come with a recharging cord?
-- Yes, the device use decent Lithium battery, each pack contain one convenient USB recharging cord.
3.How long does it take to charge an empty battery to full?
-- Around 3-4 hours from empty to 100% charged.
4.How do you clean the cuff? Is it washable?
-- Yes, the cuff can be washed by hand. Just use some alcohol based detergent when necessary.
5.Does the device or app tell you when the battery is low?
-- Yes. The user can see the battery level in the APP. while the battery is low, the device will also remind you.
6.Whats the main funtions for the Multi-parameter Patient Monitor?
-- As for 6 in 1 device MinttiVsion, It has six functions in one, such as blood pressure, blood glucose, SPO2, Temperature, ECG and respiratory rate.
